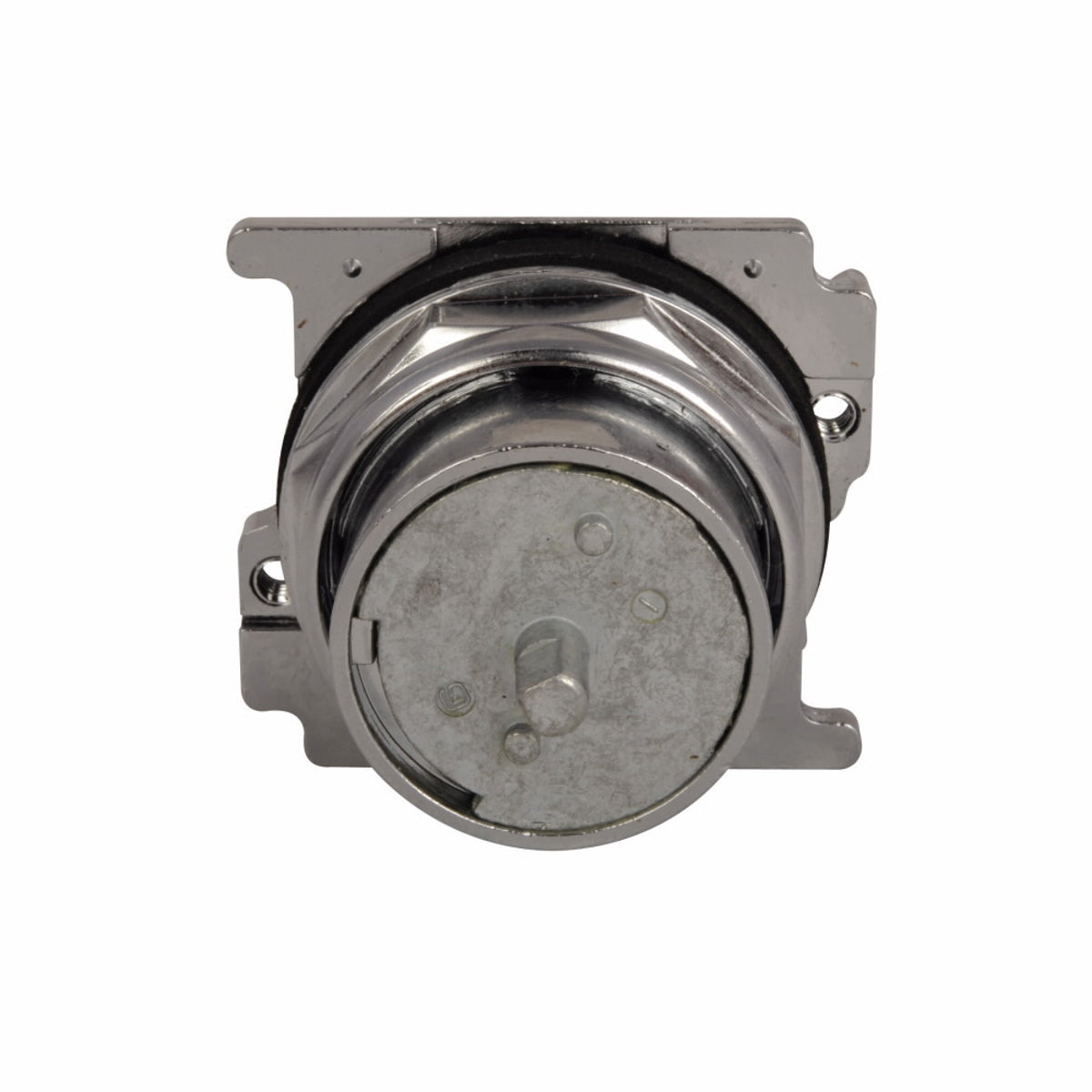

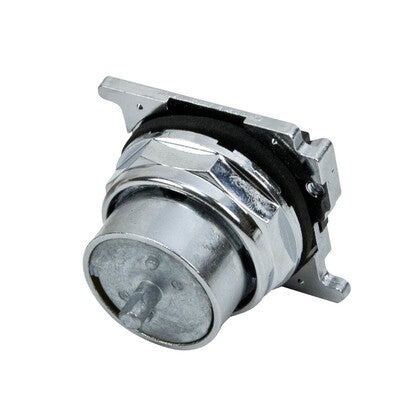

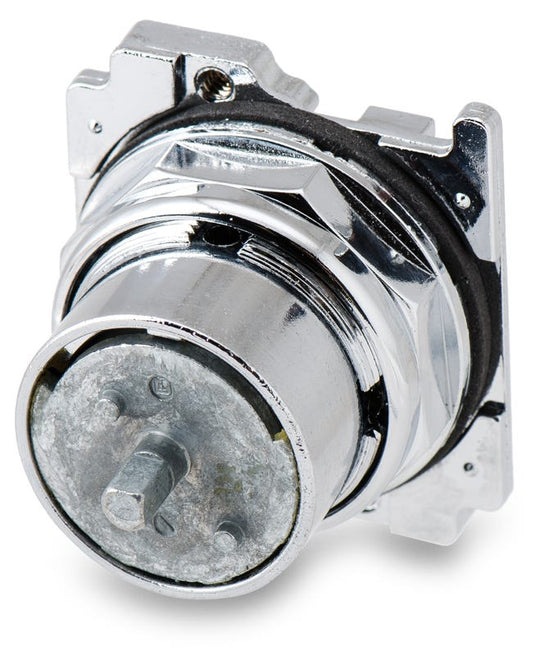

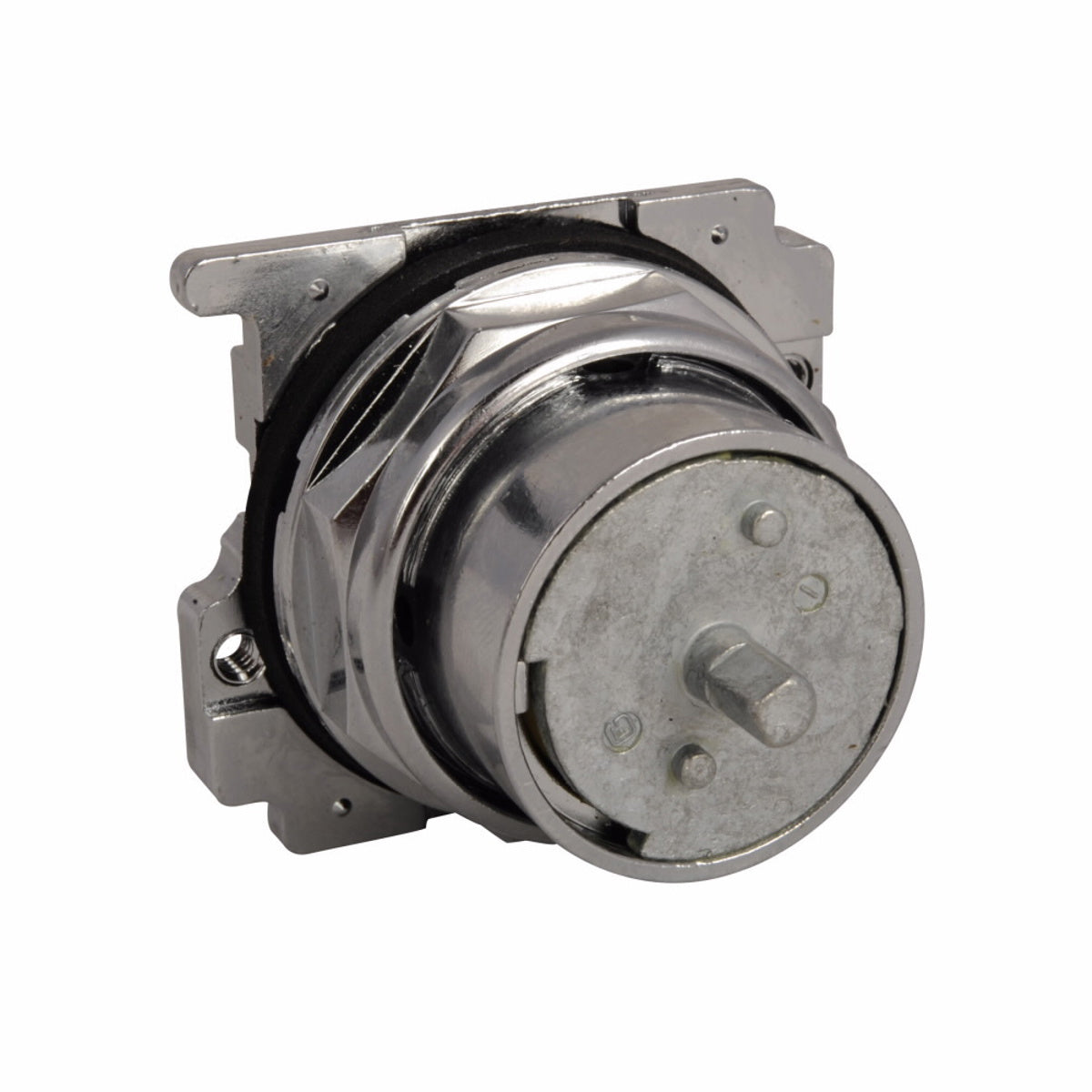

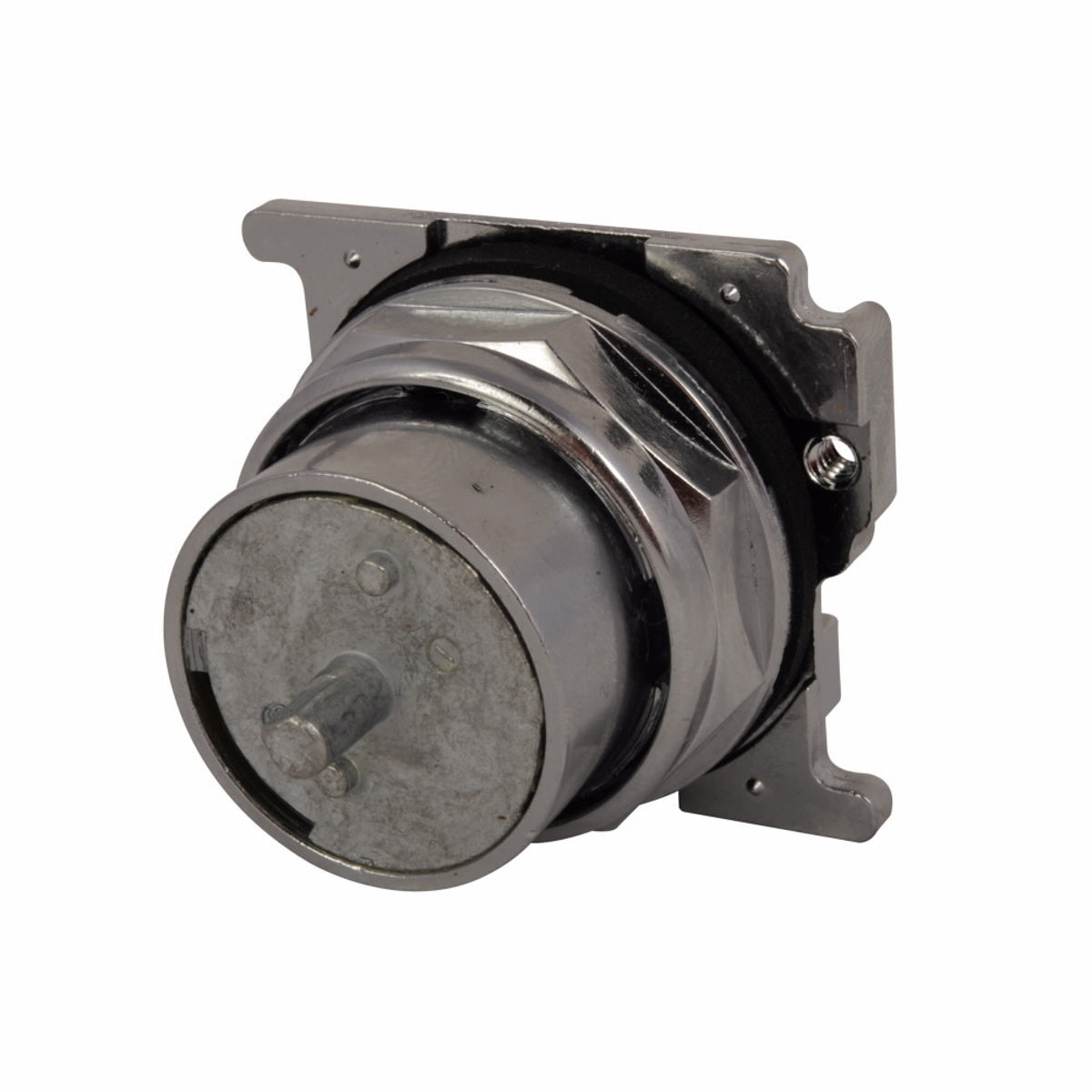

Eaton 10250T4011 operator selector switch 30.5mm 2 position 60 degree throw maintained cam 1

Product Description

The Eaton 10250T4011 is a heavy-duty oiltight/watertight pushbutton non-illuminated selector switch operator. It features a 30.5 mm size, 2 maintained positions, and a 60-degree left/right throw with cam code 1. Designed for surface mounting, it has a die-cast zinc bezel/housing and is rated for 600 VAC. Its NEMA 3/3R/4/4X/12/13/IP65 enclosure ensures durability in various environments, preventing liquid buildup.

• Enclosed silver contacts with reliability nibs improve contact reliability in dry circuit and fine dust conditions.
• Diaphragm seals with drainage holes prevent liquid buildup, ensuring operation in freezing environments.
• Grounding nibs on the operator casing provide a secure ground by biting through paint and other coatings.

Product Highlights

Heavy-duty oiltight/watertight selector switch with 2 maintained positions and NEMA 3/3R/4/4X/12/13/IP65 enclosure.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T4011
• Country of Origin: Dominican Republic

Technical Specifications

• Type: Heavy Duty Oiltight/Watertight Pushbutton Non-Illuminated
• Throw Angle: 60 deg Left/Right
• Finish: Polished Chrome
• Length: 2 in
• Series: 10250T
• Cam Code: 1
• Contact Mode: Maintained
• Bezel/Housing Material: Die Cast Zinc
• Mounting Type: Surface
• Enclosure Rating: NEMA 3/3R/4/4X/12/13/IP65
• Voltage Rating: 600 VAC
• Number of Positions: 2
• Size: 30.5 mm
• Height: 2.2 in
• Width: 2 in
• Duty Rating: Heavy Duty
• Country Of Origin: Dominican Republic
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Certifications: CSA Certified, UL Listed, CE Marked, UL 508 E131568, 1604 E10323, C22.2 No.14 LR 68551, 213-M1987 LR 20713
• UPC: 782113227290
• GTIN: 00782113227290
• Terminal Connection: Standard Screw
