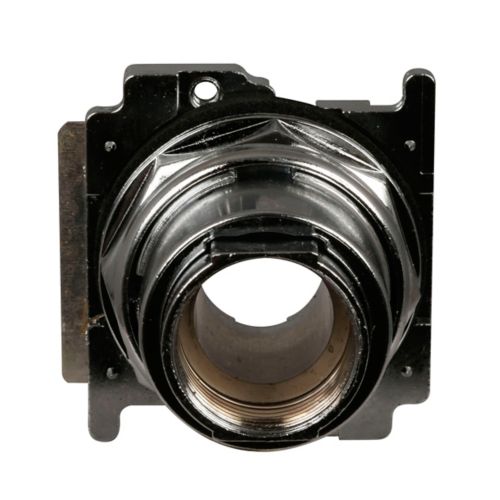

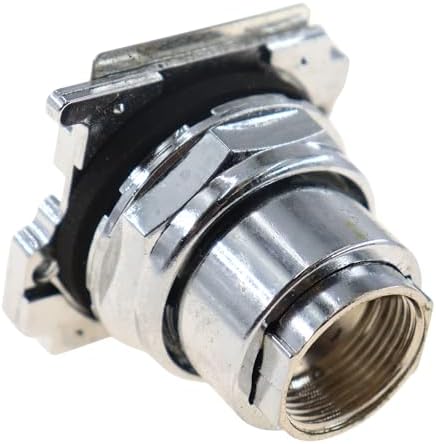

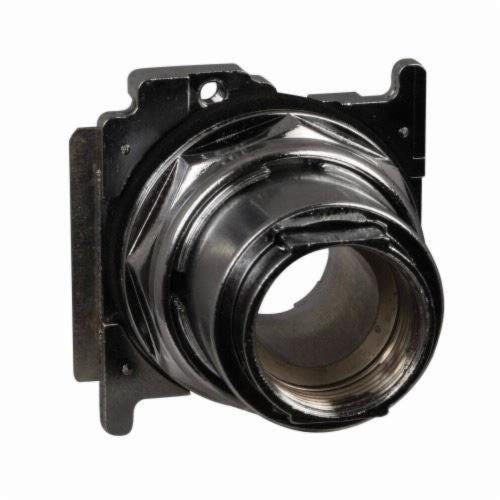

Eaton 10250T4 Pushbutton 3-Position

Product Description

The Eaton 10250T4 is a 30.5 mm heavy-duty watertight/oiltight push-pull unit. This Class I Division 2 pushbutton features a standard actuator and is non-illuminated with three positions. It offers momentary push and pull operation and is part of the 10250T Series. The pushbuttons feature a heavy duty zinc die cast construction.

• Enclosed silver contacts with pointed reliability nibs
• Diaphragm seals with drainage holes
• Grounding nibs on the operator casing

Product Highlights

This heavy-duty pushbutton is designed for use in harsh environments and provides reliable operation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T4
• Country of Origin: China

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T4
• UPC: 782113300542
• Product Length/Depth: 1.9 in
• Product Height: 2.3 in
• Product Width: 1.9 in
• Product Type: Pushbutton
• Type: Class I Division 2
• Actuator: Standard
• Operating mode: Pull: momentary Push: momentary
• Illumination: Non-illuminated
• Series: 10250T
• Number of positions: 3
• Rating: NEMA 4X NEMA 4 NEMA 3 NEMA 3R NEC Class I Division 2, Groups B, C and D NEMA 12 NEMA 13
• Manufacturer: Eaton Cutler-Hammer
• Item model number: CH10250T4
• Size: 30 mm
• Voltage: 120 Volts
• Item Package Quantity: 1
• Type of Bulb: LED
• Measurement System: Metric
• Included Components: CH10250T4
• Batteries Required?: No
• ASIN: B00JV3IEKA
• Material: Die Cast Zinc
• Bezel/Housing: Metal
• Contact Configuration: 2NC
• Contact Mode: Momentary Push and Pull
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• Finish: Chrome Plated
• Brand: Eaton
• MPN: 10250T4
• Condition: New
• Country of Origin: China
