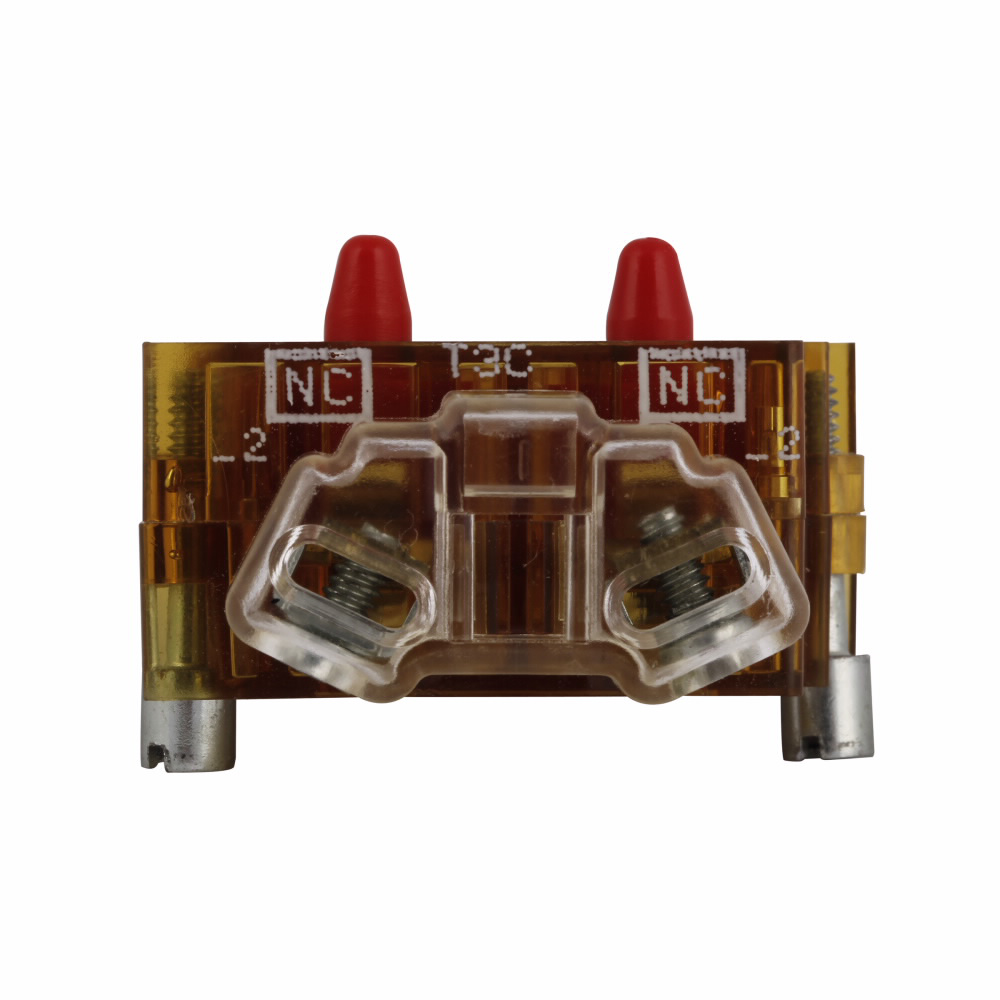

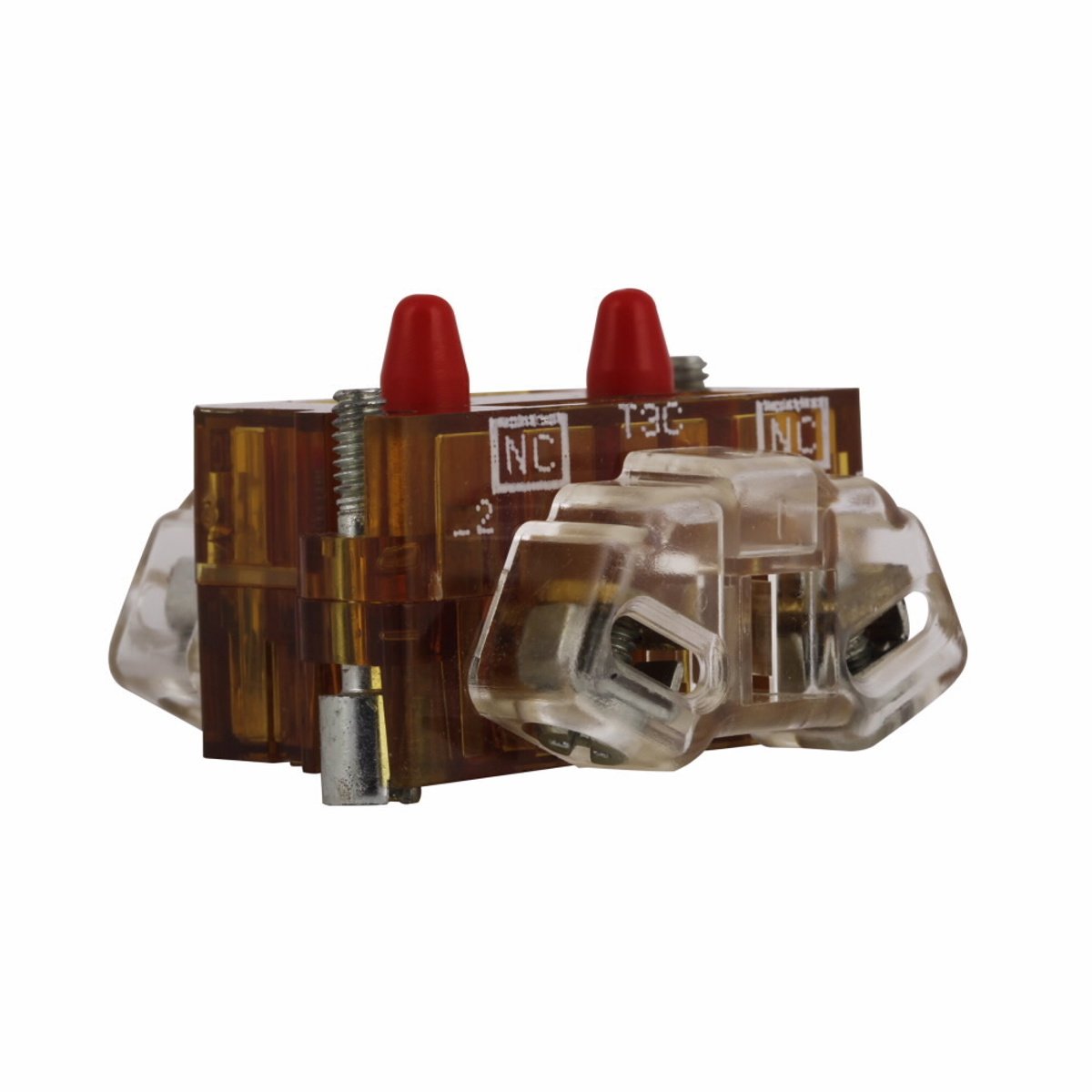

Eaton 10250T3P 30.5 mm 600 VAC 10 Amp 2NC Pressure Terminal Silver Standard Push Button Contact Block

Product Description

The Eaton 10250T3P is a pushbutton contact block with a size of thirty point five millimeters. It has a heavy-duty standard configuration featuring two normally closed contacts. This block can handle ten amps at six hundred volts AC and five amps at two hundred fifty volts DC.

• Two normally closed contacts
• Pressure terminal for secure connection
• Designed for heavy-duty applications

Product Highlights

This contact block is ideal for use in stationary machinery and equipment outside factory settings. It features a thermoplastic housing that enhances durability and reliability.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: 10250T3P
• Contact Configuration: 2 NC (standard)
• Enclosure Rating: IP65
• Dimensions: 1.9 inches (length) x 1.3 inches (width) x 2.2 inches (height)
• Weight: 0.08 lb
• Material: Die-Cast Zinc
• Standard Approvals: UL Listed, CSA Certified, CE Marked
• Applications: Equipment outside factory, stationary machinery
