Product Description
The Eaton 10250T3E is a 30.5 mm pushbutton featuring a heavy-duty zinc die-cast construction. Reliability nibs improve contact reliability, even under dry circuit and fine dust conditions. Drainage holes prevent liquid buildup inside the operator, which can prevent operation in freezing environments. It secures with compatible operator switches, pilot lights, and other switches to connect input and output wires.
- Stack up to 6-blocks (12-circuits) unless otherwise noted
- Heavy-duty zinc die-cast construction
- Durable chrome finish
Product Highlights

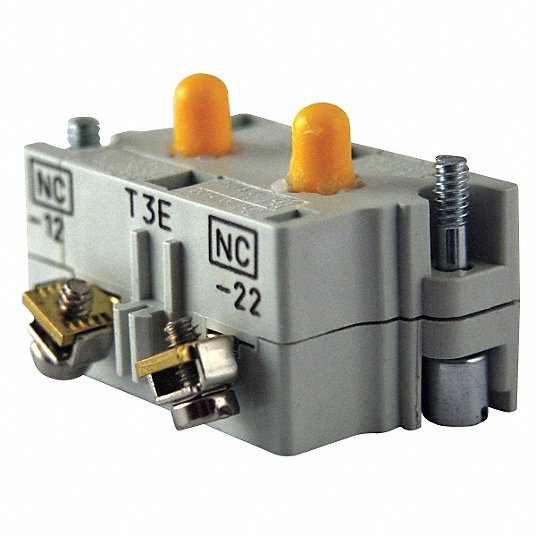

The Eaton 10250T3E contact block is designed for use in harsh environments. Its robust construction and reliable contacts ensure consistent performance.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 10250T3E
-
Country of Origin: Dominican Republic
Technical Specifications
-
Block Material: Thermoplastic
-
Enclosure Type: IP65
-
Material: Die-Cast Zinc
-
Mounting Type: 6-Stack
-
NEMA Rating: NEMA 3/3R/4/4X/12/13
-
Operator Type: Pushbutton
-
Series: 10250T
-
Terminal Type: Pressure
-
Type: Heavy Duty Logic Level
-
Size: 30.5 mm
-
Contact Configuration: 2NC
-
Contact Rating: 0.5 A at 120 VAC/VDC
-
Contact Material: Palladium
-
Action: Momentary
-
Product Length/Depth: 1.9 in
-
Product Height: 2.2 in
-
Product Width: 1.3 in
-
Product Weight: 0.2 lb
-
Compliances: CE Marked
-
Certifications: CSA Certified, UL Listed
-
Terminals: Pressure
-
Compatible with Series: 10250T; E34
-
Compatible Operator: Push Button
-
AC Contact Rating: 0.5 A @ 120 V
-
DC Contact Rating: 10 A @ 600 V
-
Includes Mounting Block: Mounting Block Included
-
Mounting Location: Front
-
NEMA Contact Rating Designation: A600/P600
-
Panel Mounting Hole Diameter: 30 mm
-
Standards: CE; CSA; UL Listed
-
Switch Action: Momentary
-
Terminal Connection Type: Screw Clamp
-
UNSPSC: 39121512
-
Sub Component: Contact Block
-
Component: Accessories
-
Manufacturer: Eaton
-
(Switching-Indication) Size: 30.5 mm
