Eaton 10250T338 Pot 2W 50V 5K Ohm

Product Description

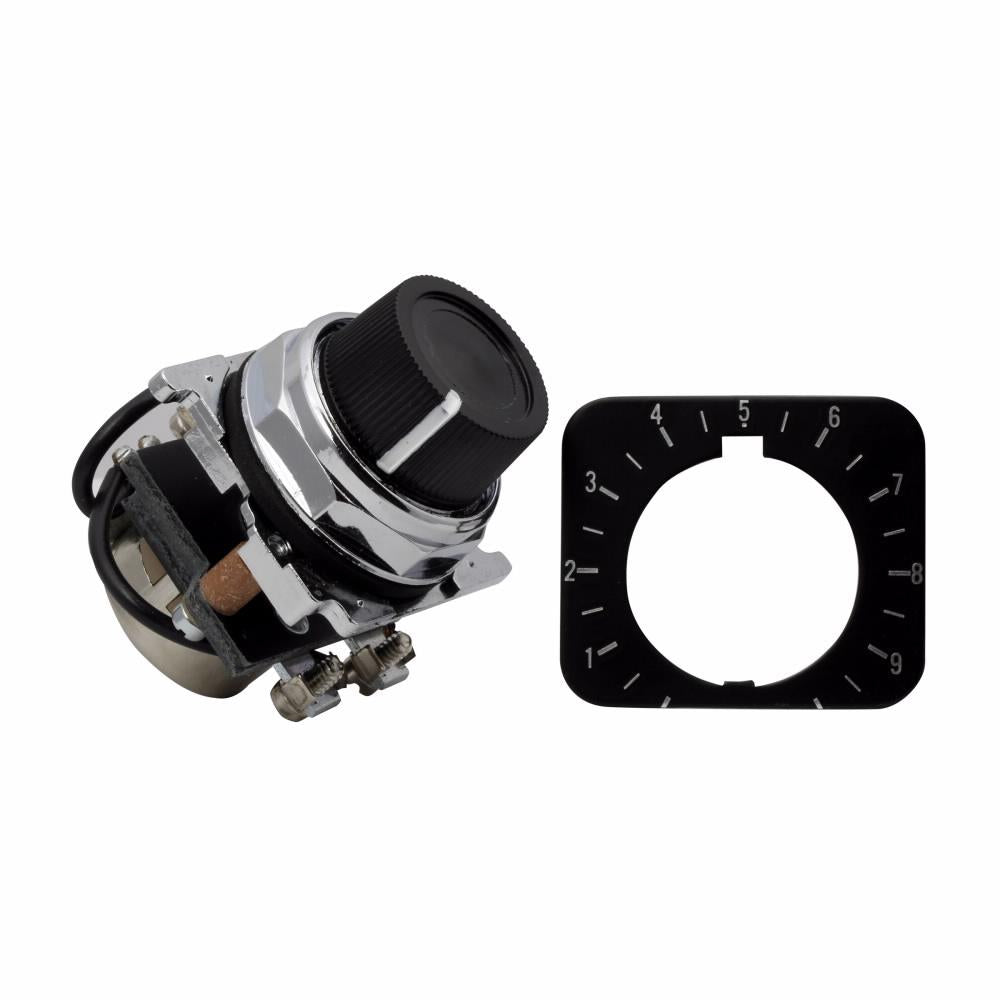

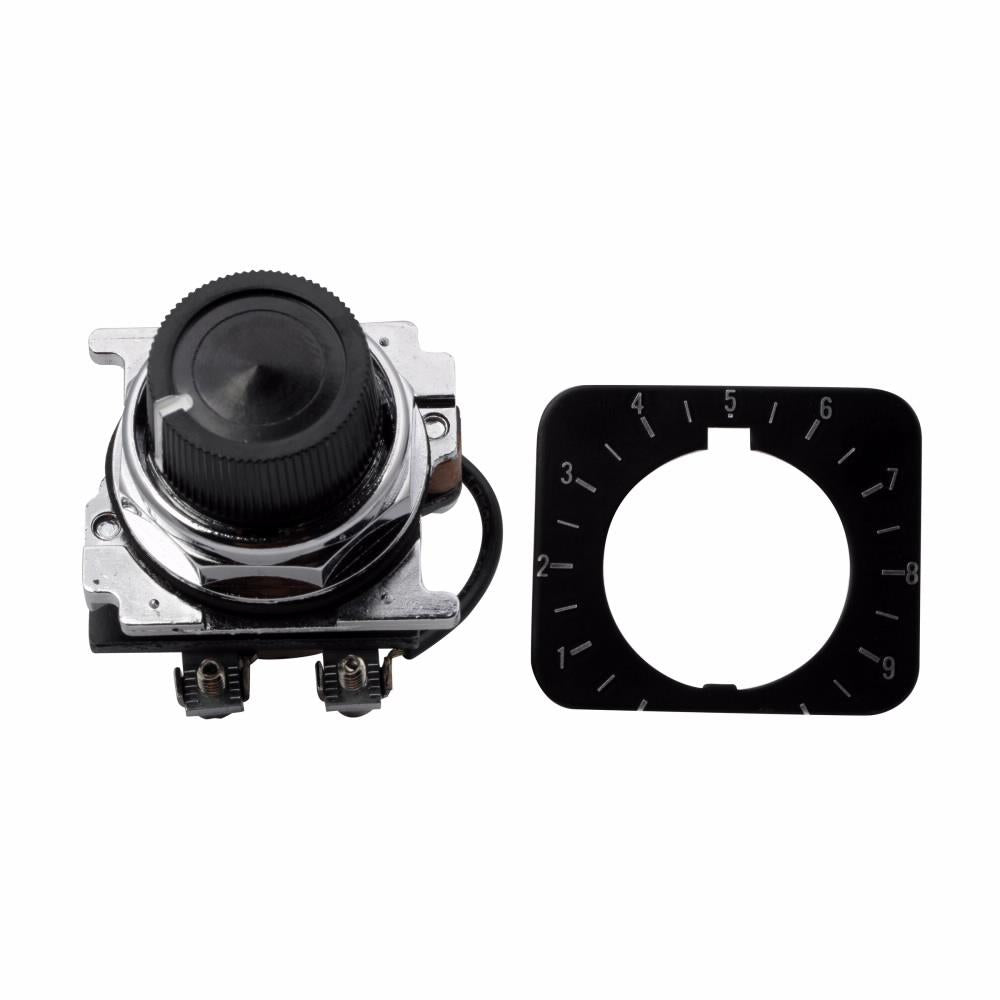

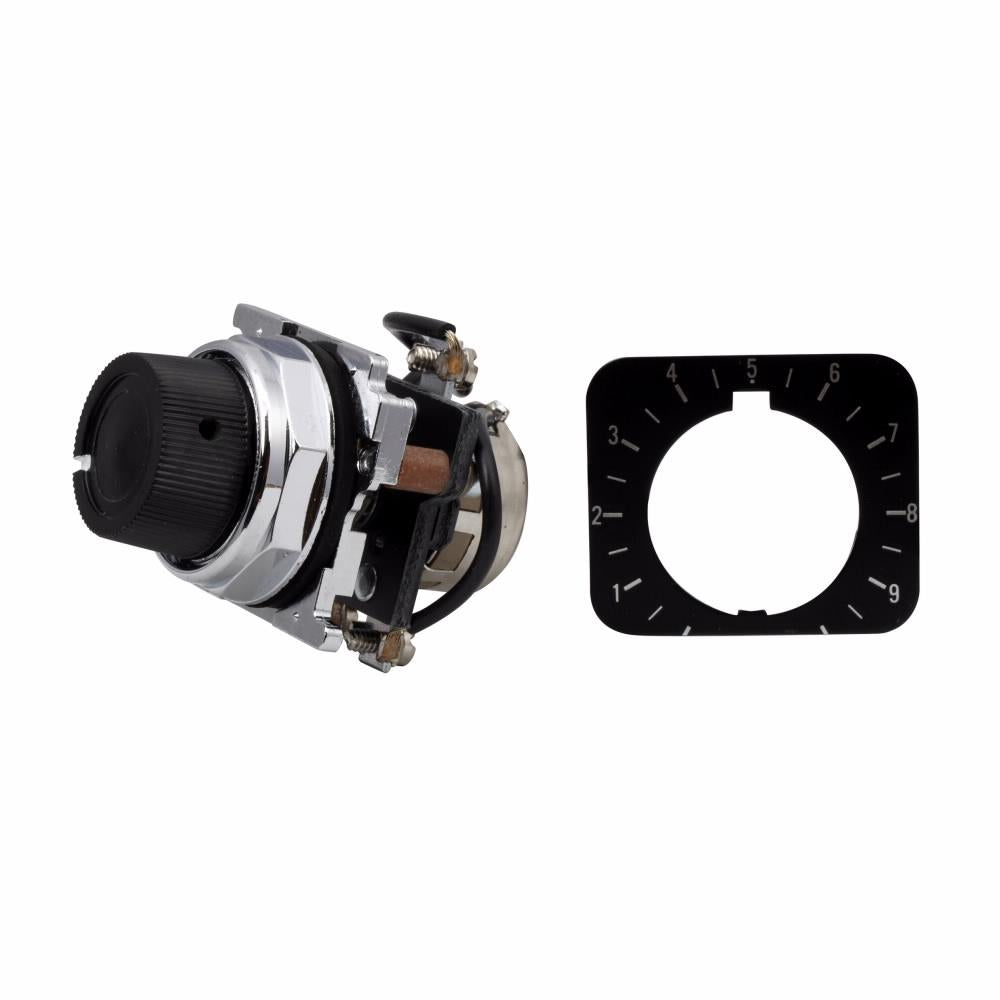

The Eaton 10250T338 Potentiometer, 30.5 mm, is heavy-duty and oiltight/watertight. It operates at 50 Vac/dc with 2W DC coil power and a resistance of 5000 Ohms. It meets NEMA 3, 3R, 4, 4X, 12, and 13 standards and is suitable for use in various industrial applications.

• 30.5 mm size
• NEMA 3/3R/4/4X/12/13 enclosure rating
• 2W DC coil power

Product Highlights

This heavy-duty potentiometer is designed for reliable performance in demanding environments, ensuring precise control and durability.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T338

Technical Specifications

• Size: 30.5 mm
• Brand: Eaton
• Height: 2.1 Inch
• Length: 3.3 Inch
• Voltage: 50 Volt
• Duty Rating: Heavy Duty
• Material: Aluminum
• Series: 10250T
• Temperature Range: 1 to 150 deg F
• Tolerance: +/-10 %
• Type: Heavy Duty Oiltight/Watertight
• Voltage Rating: 50 VAC/VDC
• Power Rating: 2 W
• Resistance: 5000 Ohm
• Product Name: Eaton 10250T potentiometer
• Catalog Number: 10250T338
• UPC: 782113225845
• Product Length/Depth: 3.3 in
• Product Height: 2.1 in
• Product Width: 2.4 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: With Knob and (blank) Standard Dial Plate.
• Product Type: Potentiometer
• Special features: 2W DC coil power
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Special Features: 2W DC coil power
• Standard: CSA Certified;UL Listed;CE Marked
• IGCC: 5219
