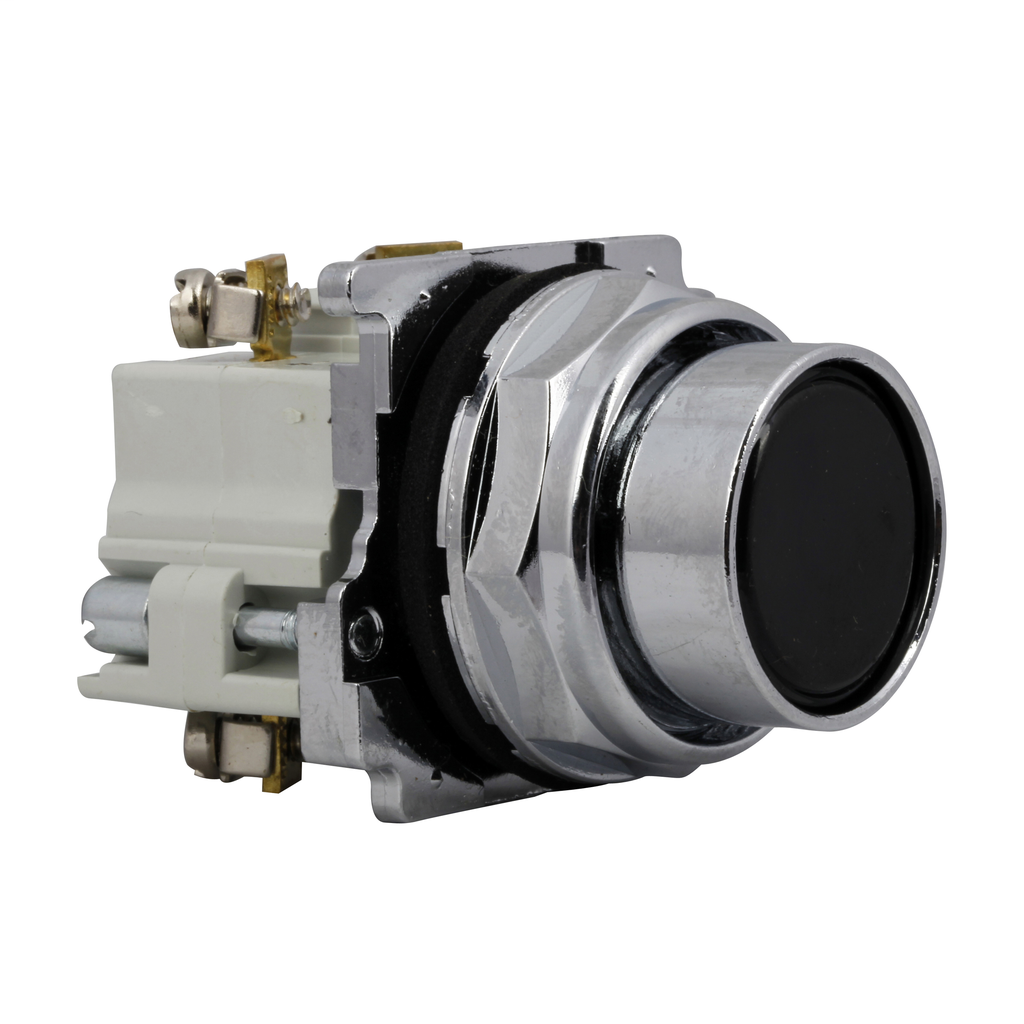

Eaton 10250T30B Momentary Watertight/Oiltight Heavy-Duty Pushbutton 30.5 mm 1 NO-1 NC

Product Description

The Eaton 10250T30B is a momentary pushbutton designed for heavy-duty applications. This unit operates at 600 VAC and includes a 1NO 1NC configuration. With a size of thirty point five millimeters, it is built to withstand harsh conditions.

• Heavy-duty die-cast zinc construction
• Meets NEMA rating of three, three R, four, four X, twelve, and thirteen
• IP65 rated for water and oil tightness

Product Highlights

This pushbutton features a black finish with a polished chrome bezel. It is designed for flush mounting with drainage holes to prevent liquid buildup. The product is ideal for electrical assemblies and various heavy-duty applications.

Product Information

Standard Information

• Brand: Eaton
• MPN: 10250T30B

Technical Specifications

• Type: Heavy-Duty
• Contact Configuration: 1 NO, 1 NC
• Construction Material: Die-Cast Zinc
• Voltage Rating: 600 VAC
• Current Rating: 10 A
• Size: 30.5 mm
• Height: 3.2 inches
• Width: 2.1 inches
• Weight: 0.3 lb
