Eaton 10250T3053 Pushbutton 30.5 mm

Product Description

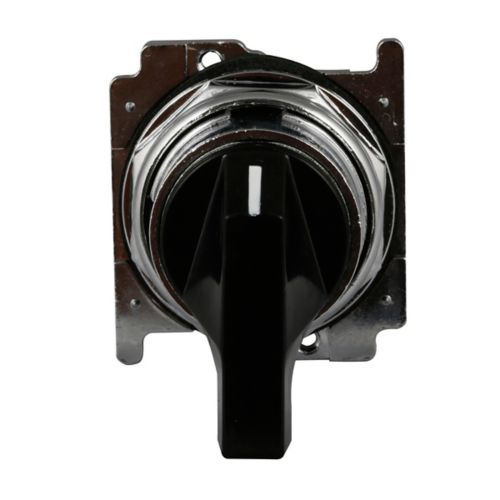

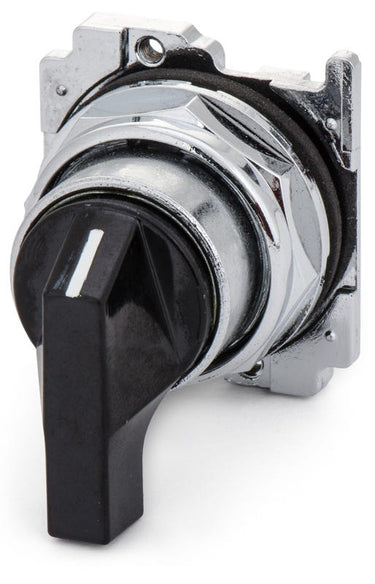

The Eaton 10250T3053 is a 30.5 mm pushbutton. This heavy-duty, non-illuminated selector switch features a lever actuator, cam 3, and a 60° throw. It is NEMA rated 3, 3R, 4, 4X, 12, and 13. The selector switch has three positions.

• Heavy-Duty
• Cam 3
• 60° throw

Product Highlights

The Eaton 10250T3053 pushbutton is a heavy-duty, oiltight/watertight, non-illuminated selector switch with a lever operator and three positions.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T3053

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T3053
• UPC: 782113226989
• Product Length/Depth: 2 in
• Product Height: 2.2 in
• Product Width: 2 in
• Product Weight: 0.25 lb
• Warranty: 1 year
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Actuator color: Black
• Cam code: Cam 3
• Actuator: Lever
• Illumination: Non-illuminated
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Series: 10250T
• Number of positions: 3
• Throw type: 60 °
• Brand: Eaton
• Mounting Type: Panel
• Approval: CE, UL, CSA
• Terminal Connection: Standard Screw
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Length (in): 2
• Width (in): 2
• Height (in): 2.2
• Duty Rating: Heavy Duty
• Action: Maintained/Maintained/Momentary
• Mpn: 10250T3053
• Gtin: 782113226989
• Manufacturer: Eaton Cutler-Hammer
• Item Weight: 4.8 ounces
• Product Dimensions: 5 x 10 x 8 inches
• Item model number: CH10250T3053
• Thickness: 11 Inches
• Item Package Quantity: 1
• Included Components: CH10250T3053
• Batteries Required?: No
• Warranty Description: 1 year manufacturer
• ASIN: B011P0QGW4
• Best Sellers Rank: #2,735,337 in Tools & Home Improvement
• Circuit Breakers: #14,914 in
• Date First Available: July 15, 2015
• Category: Business & Industrial
• Contact configuration: 1 NO-1 NC
• Mounting method: Vertical
• Finish: Polished Chrome
• UNSPSC: 39122217
• Application: Automation and Logic Control Equipment Applications
• Body Material: Die-Cast Zinc
• Surface Mounting: Surface
• Operator Type: Lever
• Enclosure Type: NEMA 3/4/12/13/3R/4X/IP65
• Voltage Rating: 600
• Enclosure: NEMA 3/3R/4/4X/12/13, IP65
• Throw: 60 deg Left Center/Right
• Operation Type: Maintained/Maintained/Momentary
• Size: 30.5 Millimeter
