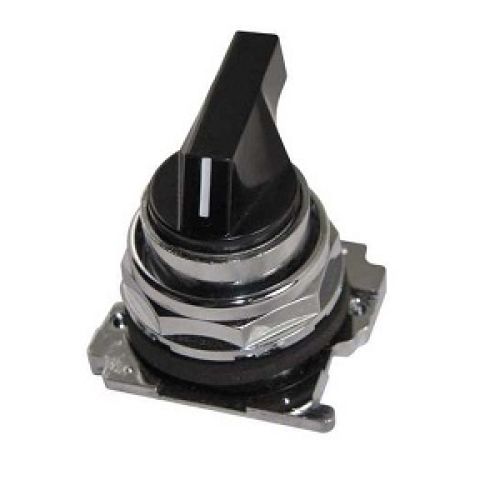

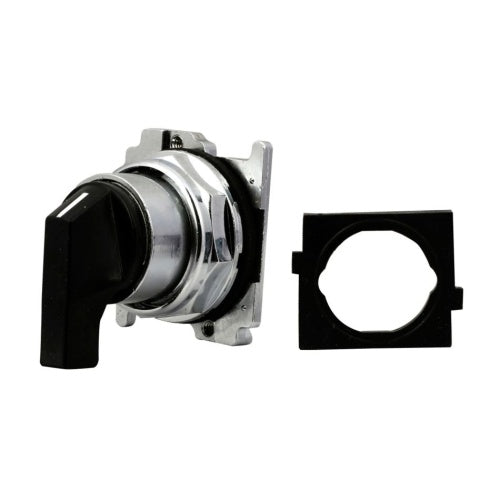

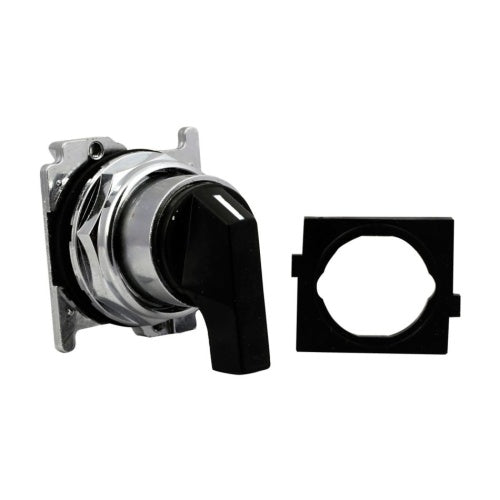

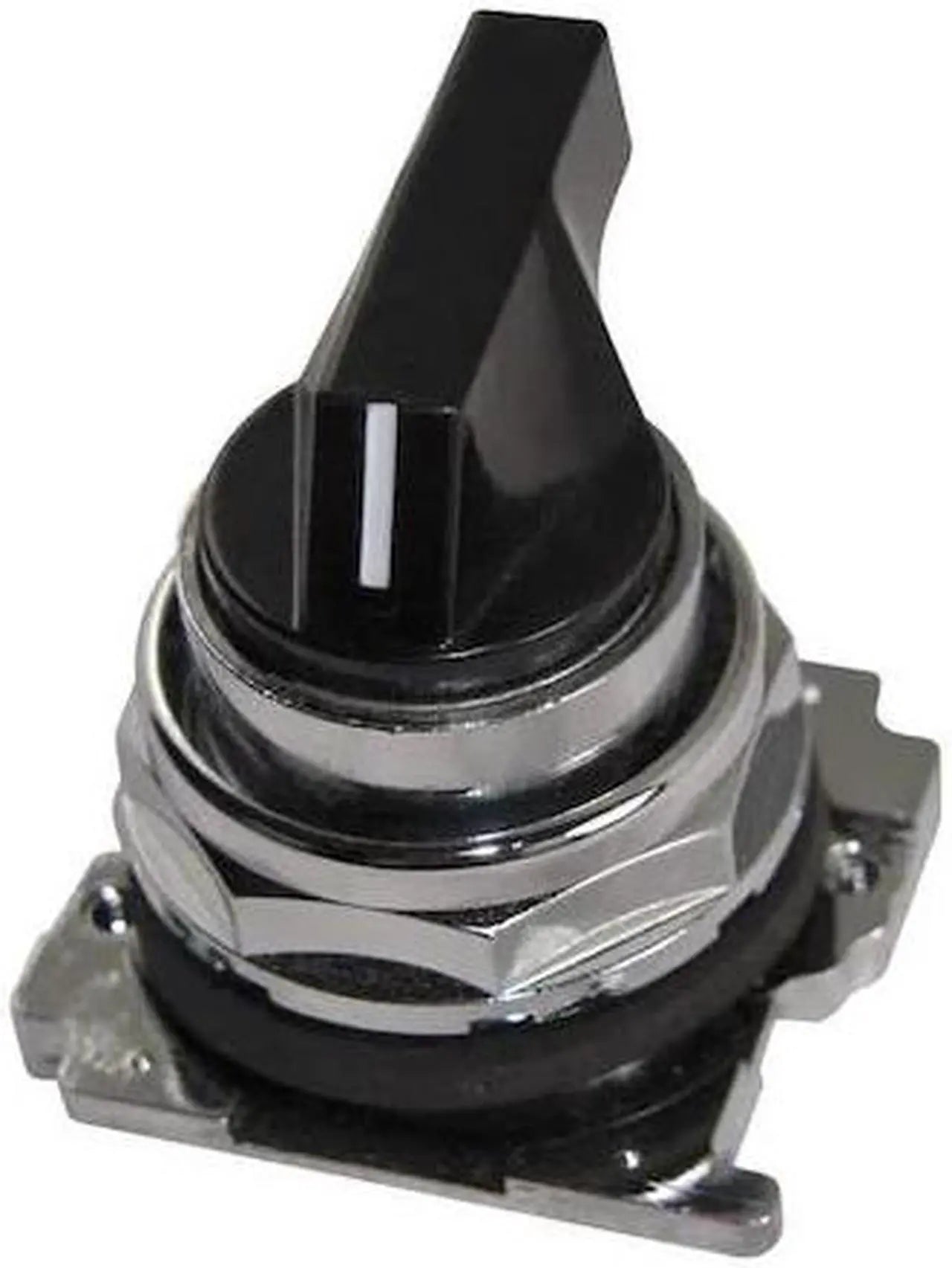

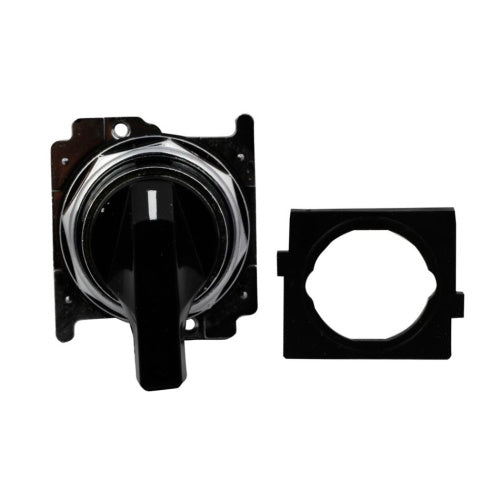

Eaton 10250T3043 Selector Switch 3 Position Lever-Vert

Product Description

The Eaton 10250T3043 is a selector switch with a 3-position lever. This heavy-duty, oiltight/watertight, non-illuminated switch features a zinc die-cast construction. It is suitable for use in challenging environments. Reliability nibs improve contact reliability, and drainage holes prevent liquid buildup. It has a 30.5 mm size, lever operator, and is black in color.

• Enclosed silver contacts with reliability nibs
• Drainage holes prevent buildup of liquid inside the operator
• Slow make and break contact operation

Product Highlights

Heavy-duty selector switch with enhanced reliability and liquid protection for demanding applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T3043
• Country of Origin: United States

Technical Specifications

• Brand: Eaton
• MPN: 10250T3043
• Condition: New
• Manufacturer: Eaton
• Frame Type: 10250T
• Type: Heavy Duty Oiltight/Watertight Non-Illuminated
• Series: 10250T
• Size: 30.5 mm
• Contact Mode: Maintained/Spring Return
• Operator Type: Lever
• Number of Positions: 3
• Throw: 60 deg Left Center/Right
• Cam Code: 3
• Voltage Rating: 600 VAC
• Enclosure Type: NEMA 3/4/12/13/3R/4X/IP65
• Mounting Type: Surface
• Bezel/Housing: Die Cast Zinc
• Finish: Polished Chrome
• Color: Black
• (Switching-Indication) NEMA Rating: NEMA 4X
• (Switching-Indication) Size: 30.5 mm
