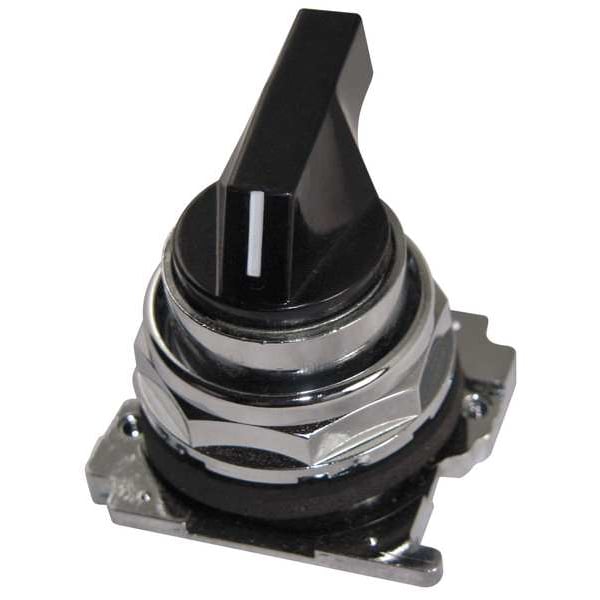

Eaton 10250t3042 Selector Switch Panel Mount Heavy Duty

Product Description

The EATON 10250t3042 is a heavy-duty selector switch designed for panel mounting in industrial and commercial control applications. Part of the 10250T series, it features a lever actuator with a momentary/maintained/momentary action sequence, giving operators precise control over multi-position switching tasks. The switch carries NEMA ratings of 3, 3R, 4, 4X, 12, and 13, meaning it is built to withstand rain, hose-directed water, dust, and corrosion exposure. Terminals use standard screw connections. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

The 10250t3042 is suited for panel-mount installations in industrial control panels, machine tool enclosures, and process control equipment. Its NEMA 4X rating makes it appropriate for wash-down environments and corrosive atmospheres where sealed enclosure protection is required. The lever actuator style is commonly specified where operators need tactile, positive-position feedback during switching. This switch fits applications where a combination of momentary and maintained contact positions is required in a single compact device measuring 1.9 inches wide by 1.9 inches in length by 2 inches in height.

Key Features

• Lever actuator type with momentary/maintained/momentary action for multi-position control
• NEMA ratings 3, 3R, 4, 4X, 12, and 13 for use in wet, dusty, and corrosive environments
• Heavy-duty rating suitable for demanding industrial panel applications
• Standard screw terminal connections for straightforward wiring
• Black lever color for easy identification in panel layouts
• CE, UL, and CSA approved for compliance with North American and international standards

Compatibility

Designed as an OEM-style replacement or new-installation selector switch within the EATON 10250T series, compatible with standard 30mm panel cutout control station assemblies where NEMA 4 or 4X environmental protection is specified.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the control panel before removing or installing the switch. Secure all standard screw terminal connections firmly and verify actuator action and contact sequence before returning the panel to service. Do not exceed the switch duty rating for the intended control circuit application.

Technical Specifications

• Series: 10250T
• Actuator Type: Lever
• Action: Momentary/Maintained/Momentary
• Duty Rating: Heavy Duty
• NEMA Rating: 3, 3R, 4, 4X, 12, 13
• Mounting Type: Panel
• Terminal Connection: Standard Screw
• Color: Black
• Length: 1.9 inches
• Width: 1.9 inches
• Height: 2 inches
• Approvals: CE, UL, CSA

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250t3042
