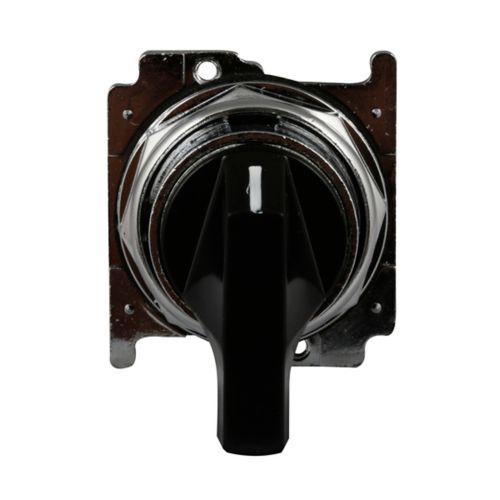

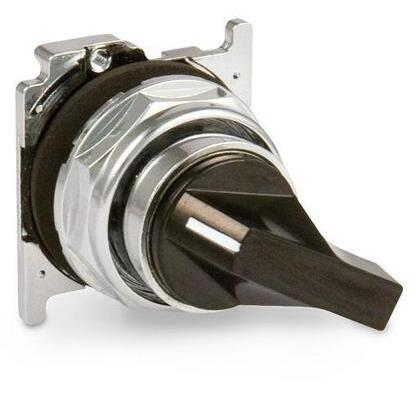

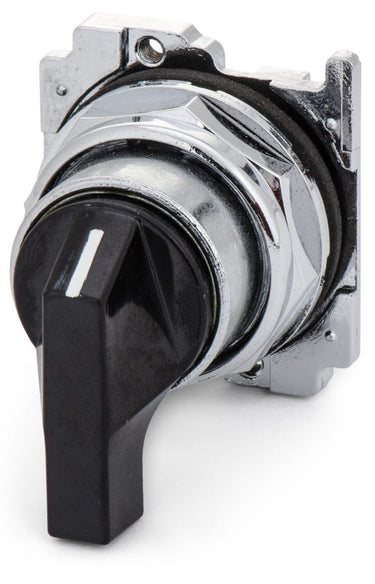

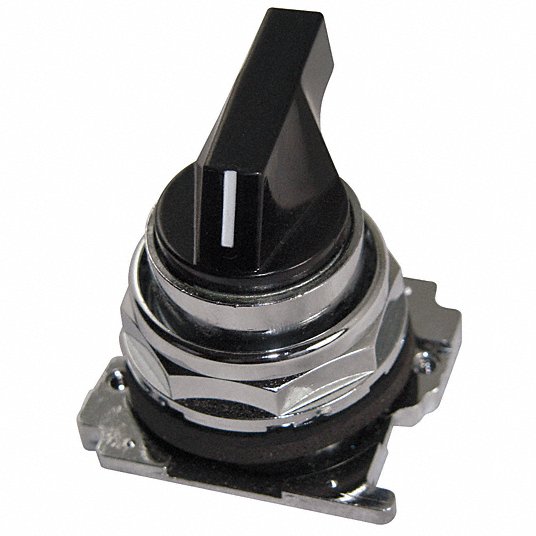

Eaton 10250T3033 Pushbutton 30.5 mm Heavy-Duty

Product Description

The Eaton 10250T3033 pushbutton is a 30.5 mm heavy-duty component with a lever actuator. This non-illuminated, three-position switch has a 60° throw and is rated NEMA 3, 3R, 4, 4X, 12, and 13. It features a cam 3 code and a black actuator, suitable for various industrial applications where light indication is unnecessary.

• 30.5 mm, Heavy-Duty
• Non-illuminated
• NEMA 3, 3R, 4, 4X, 12, 13 rated

Product Highlights

The Eaton 10250T3033 is ideal for environments where light indication is not needed, offering a robust and reliable switching solution.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T3033
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T3033
• UPC: 782113226941
• Product Length/Depth: 2 in
• Product Height: 2.2 in
• Product Width: 1.9 in
• Product Weight: 0.2 lb
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Actuator color: Black
• Cam code: Cam 3
• Actuator: Lever
• Illumination: Non-illuminated
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Series: 10250T
• Number of positions: 3
• Throw type: 60
