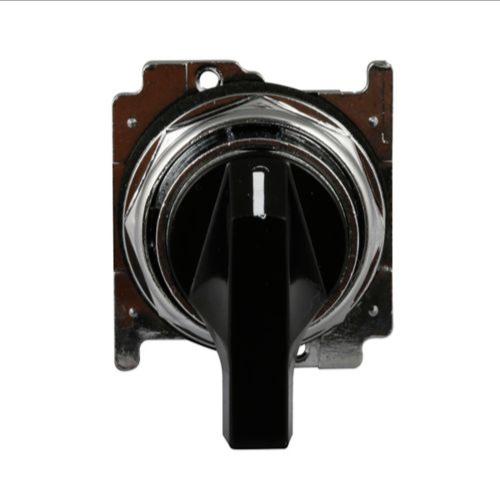

Eaton 10250T3032 selector switch operator 30.5 mm

Product Description

The Eaton 10250T3032 is a 30.5 mm pushbutton with heavy-duty zinc die-cast construction. Reliability nibs improve contact reliability, even under dry circuit and fine dust conditions. Drainage holes prevent liquid buildup inside the operator, which can prevent operation in freezing environments. It is designed to excel in challenging environments.

• Heavy duty zinc die cast construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes

Product Highlights

This heavy-duty watertight/oiltight selector switch operator offers reliable performance in harsh conditions. Ideal for industrial applications requiring robust and durable components.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T3032
• Country of Origin: US

Technical Specifications

• Bezel/Housing: Die Cast Zinc
• Cam Code: 2
• Contact Mode: Maintained/Spring Return
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Finish: Polished Chrome
• Mounting Type: Surface
• Series: 10250T Series
• Temperature Rating: 1 to 150 deg F
• Throw: 60 deg Left Center/Right
• Type: Heavy Duty Watertight/Oiltight
• Voltage Rating: 600 VAC
• Size: 30.5 mm
• Operator Type: Lever
• Number of Positions: 3
• Product Height: 1.91"
• Product Diameter: 1.38"
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton
• Actuator: Lever
• Illumination: Non-illuminated
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Action: Momentary/Maintained/Maintained
• Basic Material: Metal
• Bezel Color: Chrome
• Bezel Material: Anodized Aluminum
• Ip Rating: IP65
• Hazardous Location Specification: Not Rated
• Key Number: No Key
• Key Removal: No Key
• Operator Head Material: Metal
• Operator Illumination: Non Illuminated
• Overall Height: 1.91"
• Panel Mounting Hole Diameter: 30 mm
• Standards: Csa, Ul Listed
• Switch Function @ 1st Position: On
• Switch Function @ 2nd Position: On
• Switch Function @ 3rd Position: On
• Switch Function @ 4th Position: No Fourth Position
• Switch Head Type: Extended Lever
• Switch Operation @ Position A: X
• Switch Operation @ Position C: X
• Switch Operation @ Position D: No Fourth Position
• Alternate Mfr Part Number: 10250T3032
• Brand: Eaton - Cutler Hammer
• Component: Push Button
• Manufacturer: Eaton
• (Switching-Indication) NEMA Rating: NEMA 4X
• (Switching-Indication) Size: 30.5 mm
• (Switching-Indication) Bezel: Black
• (Switching-Indication) Light Type: LED - Full Voltage
• UNSPSC: 39122217
