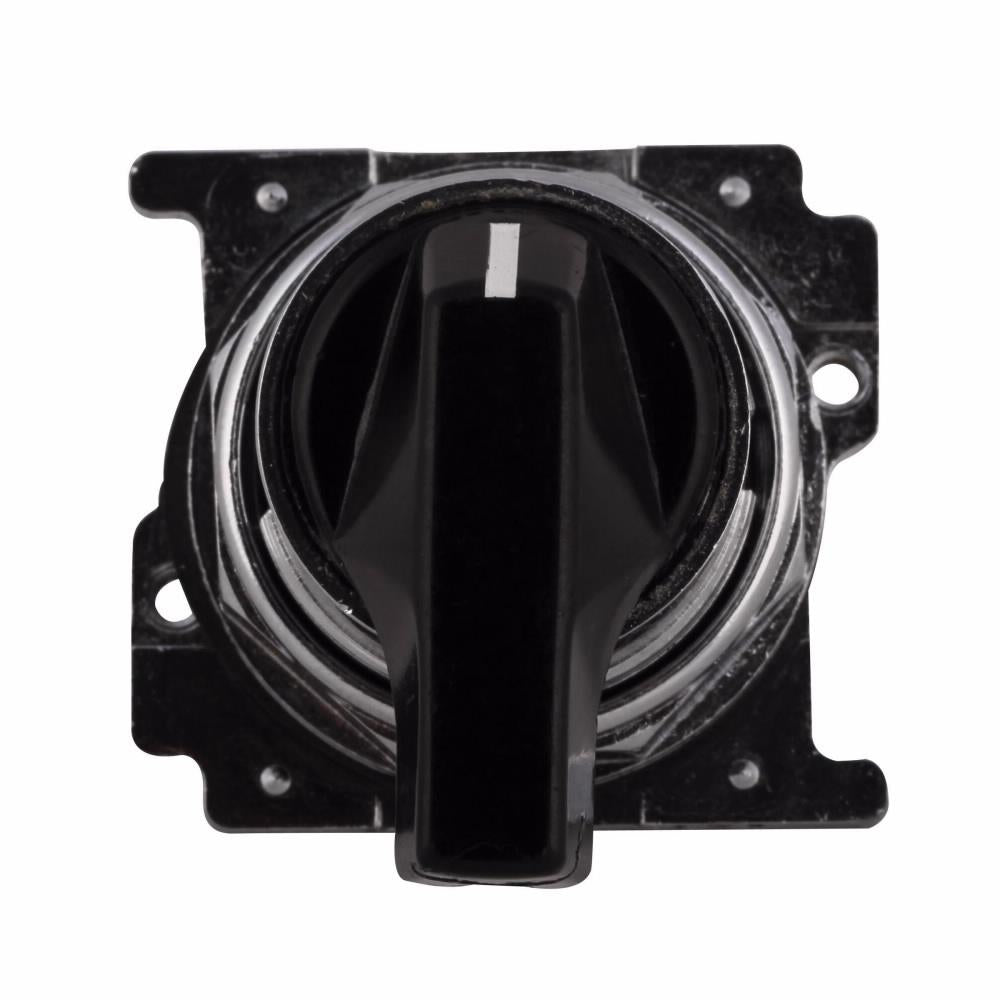

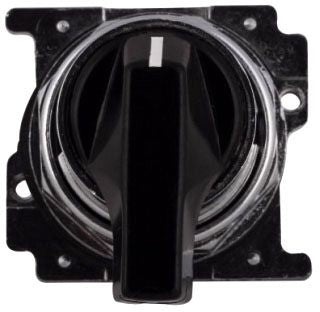

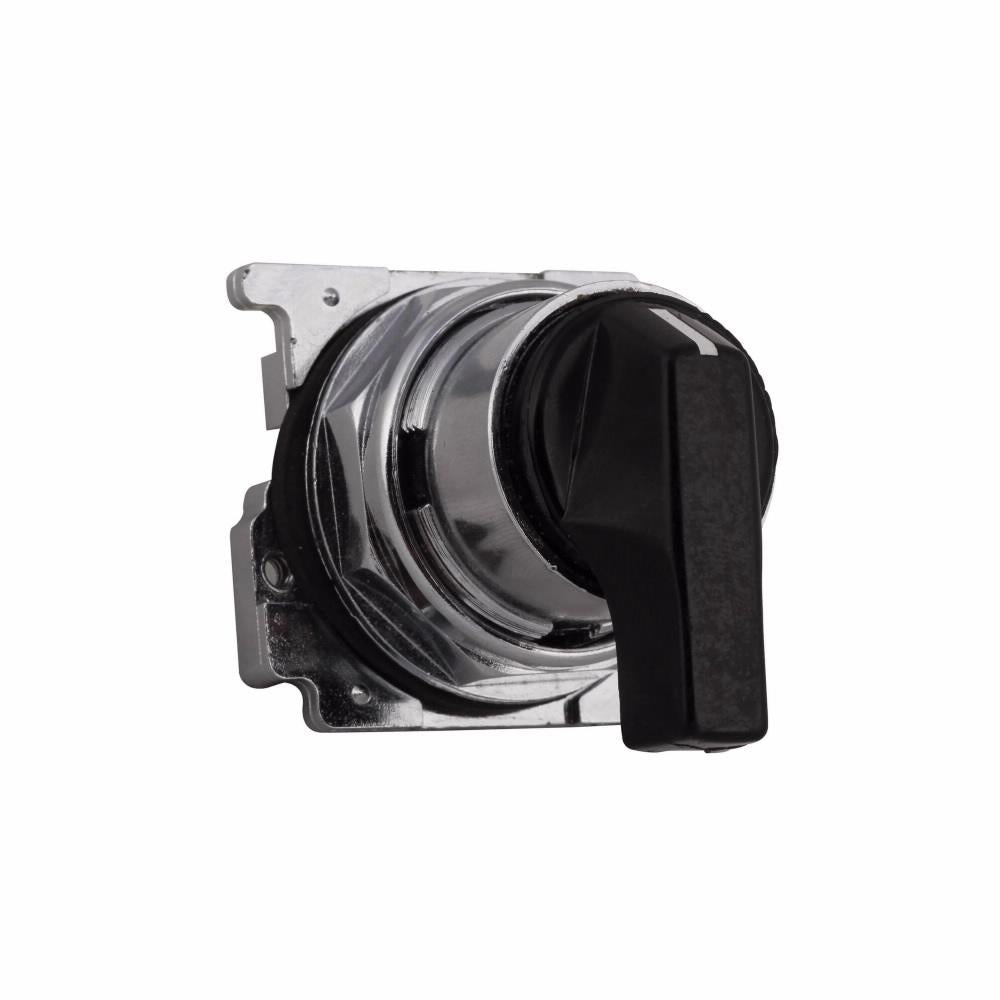

EATON 10250T3023 OPERATOR SEL SW 30.5MM LVR 3 BK 3 600VAC

Product Description

The EATON model 10250T3023 is a heavy-duty selector switch operator designed for various industrial applications. This non-illuminated model features a lever operator with three positions. The switch operates at a voltage rating of six hundred volts alternating current (VAC) and is suitable for surface mounting.

• Heavy-duty zinc die cast housing for durability
• Three-position lever operation for versatile control
• NEMA-rated enclosure for protection against environmental factors

Product Highlights

This selector switch is ideal for electrical assemblies and panels, ensuring reliable operation even in challenging conditions.

Product Information

Standard Information

• Manufacturer: EATON
• MPN: 10250T3023

Technical Specifications

• Type: Heavy Duty Oiltight/Watertight Pushbutton Non-Illuminated
• Size: 30.5 mm
• Number of Positions: 3
• Contact Mode: Maintained
• Throw: 60 degrees Left Center/Right
• Voltage Rating: 600 VAC
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Bezel/Housing: Die Cast Zinc
