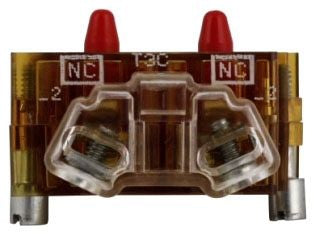

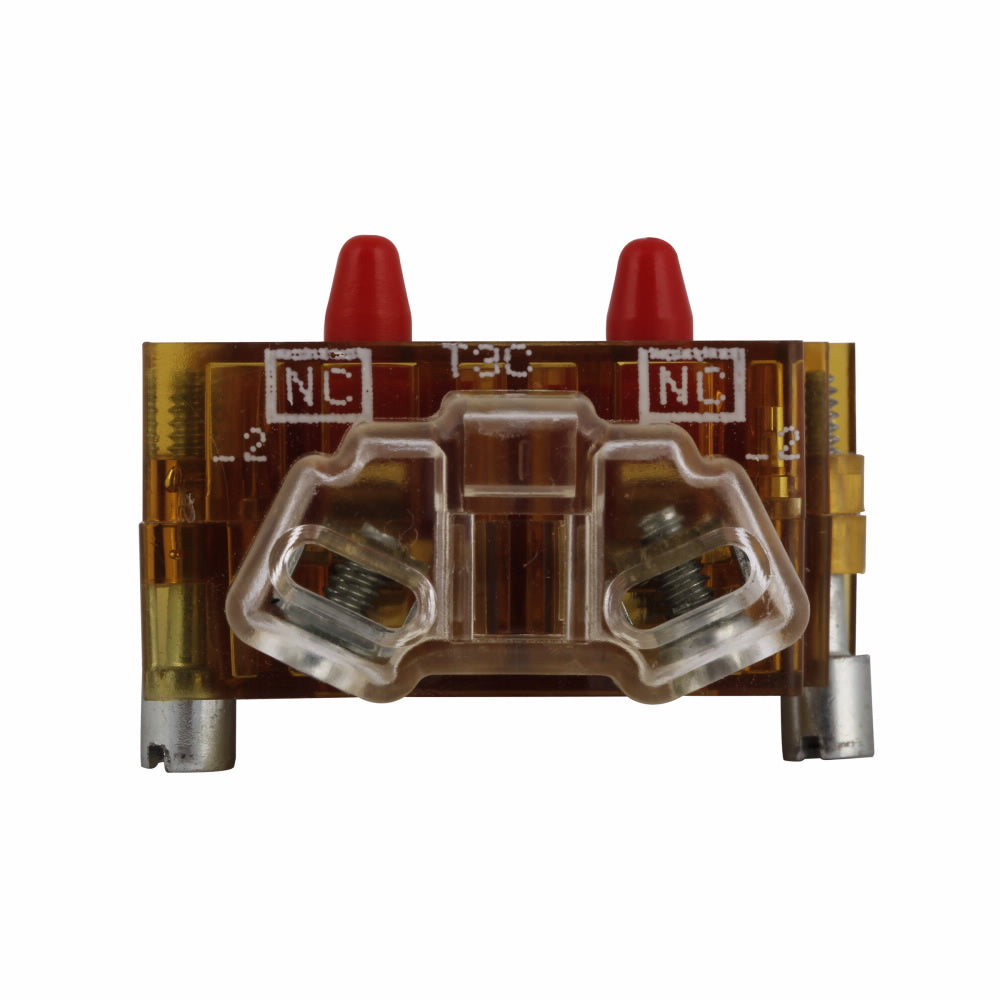

Eaton 10250T3 BLOCK CONT 30.5MM 2NC PUSHBUTTON PRESS

Product Description

Eaton 10250T3 is a heavy-duty contact block designed for applications requiring reliable switching. It features a zinc die-cast structure and is compatible with Eaton's 30.5 mm pushbutton series. This contact block includes a two normally closed (2NC) configuration and a pressure terminal connection for secure, effective operation.

• Stackable design allows up to six blocks for a total of 12 circuits.
• Rated for 10 Amps at 600 Volts AC and 5 Amps at 250 Volts DC.
• Water-tight and oil-tight design suitable for harsh industrial environments.

Product Highlights

The Eaton 10250T3 is built for durability and reliability in various settings, including electrical assemblies, automation systems, and logic control applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: 10250T3

Technical Specifications

• Contact Configuration: 2NC
• Weight: 0.15 lb
• Dimensions: 1.9 in L x 1.3 in W x 2.3 in H
• Terminal Type: Pressure
• Application: Electrical Assemblies, Panels, EOEM
• Made in USA: No
• Country of Origin: Dominican Republic
• Standards: CSA Certified, UL Listed, CE Marked
