Eaton 10250T2P ch 30mm Cont Blk 2NO Shrd

EATON
Brand: EATON
SKU: 10250T2P
Availability: In Stock

Ships same day if ordered by 12 pm
$75.87
$75.87
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

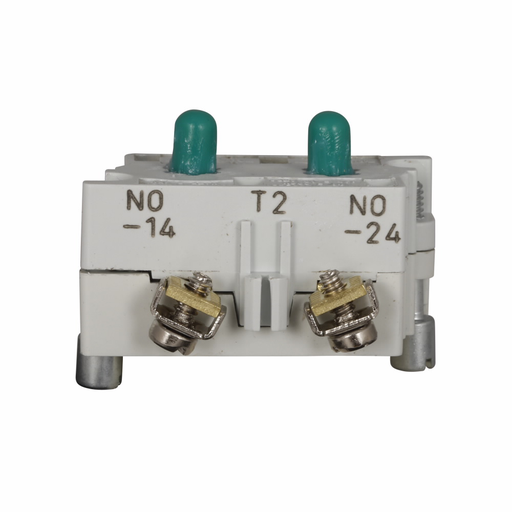

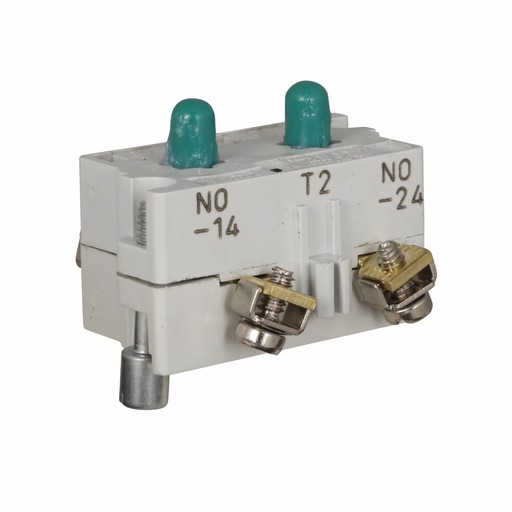

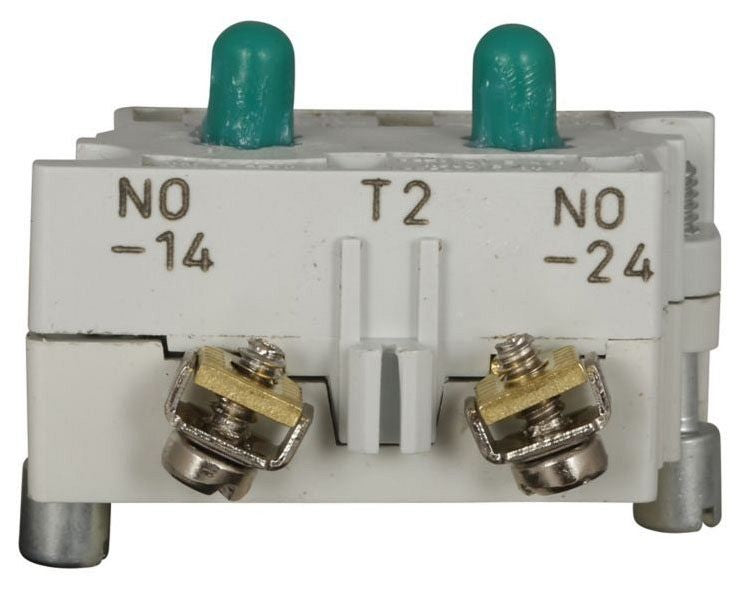

The EATON 10250T2P is a heavy-duty standard contact block from the 10250T series, designed for pushbutton operators. It features a thermoplastic block, die-cast zinc material, and silver contacts. This contact block is ideal for stationary machinery, equipment outside factories, and other applications requiring reliable and durable pushbuttons.

  • Features enclosed silver contacts with pointed reliability nibs.
  • Stack up to 6-blocks (12-circuits) unless otherwise noted.
  • Offers a finger proof shroud.

Product Highlights

Heavy-duty contact block with silver contacts and a finger-proof shroud, suitable for various industrial applications.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 10250T2P
  • Country of Origin: United States
Technical Specifications
Application
Stationary Machinery, Equipment Outside Factory and Other Applications
Block Material
Thermoplastic
Color
Black
Contact Configuration
2NO
Contact Material
Silver
Contact Rating
10 A at 600 VAC, 5 A at 250 VDC
Enclosure
IP65
Manufacturer Part Number
10250T2P
Material
Die-Cast Zinc
NEMA Rating
NEMA 1/2/3/3R/4/4X/12/13
Series
10250T
Size
30.5 mm
Standards/Approvals
CE Marking|CSA Certified|UL Listed
Terminal Type
Pressure
Type
Heavy Duty Standard
Height
2.2 Inch
Length
1.9 Inch
Product Length/Depth
1.9 in
Product Height
2.2 in
Product Width
1.3 in
Compliances
CE Marked
Certifications
CSA Certified UL Listed
Catalog Notes
Stack up to 6 blocks (12 circuits) unless otherwise noted
Product Type
Pushbutton accessory
Special features
Fingerproof shroud
Terminals
Pressure
Rated current
6A (120Vac; AC-15) 4A (240Vac; AC-15) 2A (660Vac; AC-15) 1A (125Vdc; DC-13) 0.55A (250Vdc; DC-13) 0.1A (660Vdc; DC-13)
Connection type
with pressure connections
Normally Open (NO) auxliary contacts
2 NO contacts
Technical compatibility with
10250 series
Manufacturer product status
Commercialized
Brand
Eaton - Cutler Hammer
