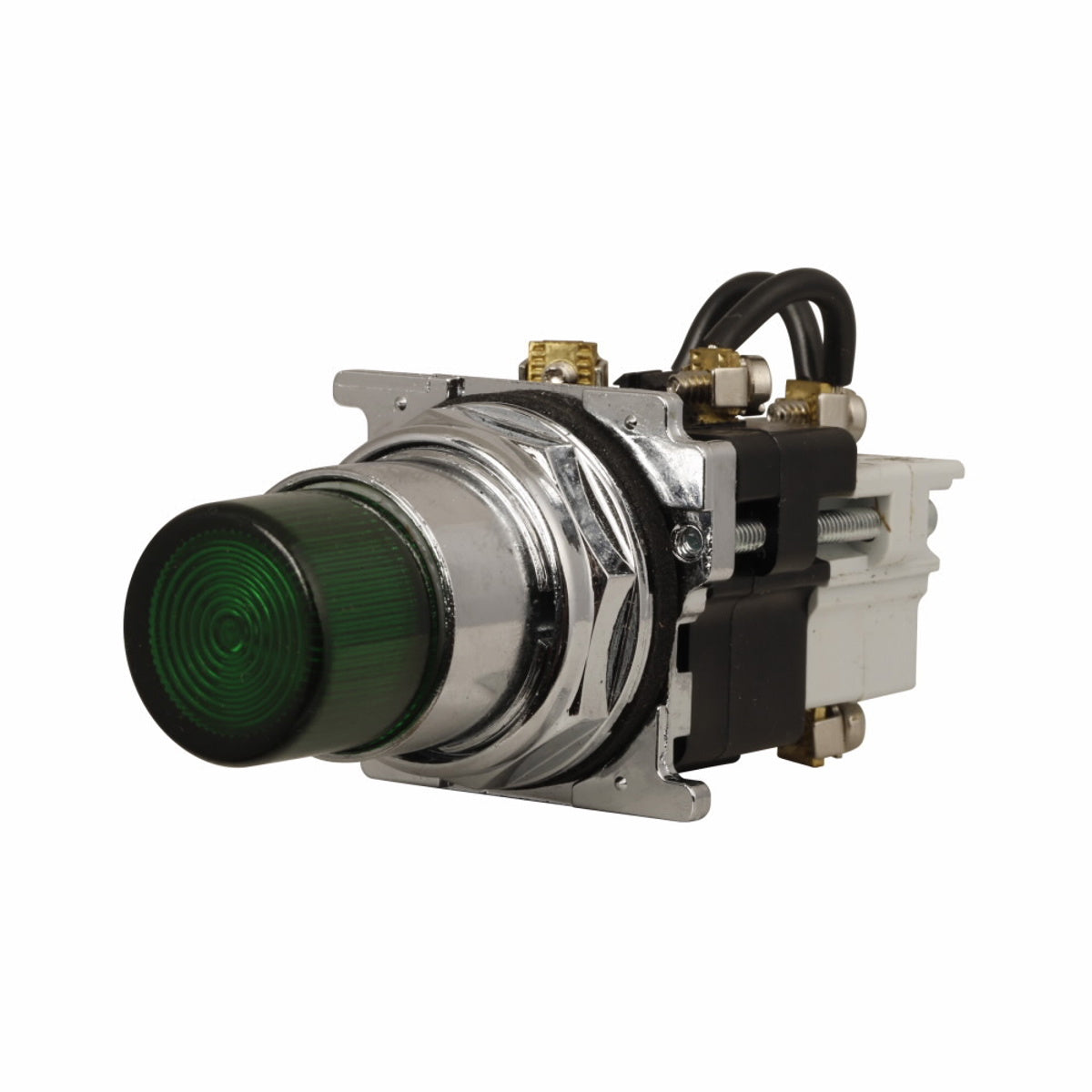

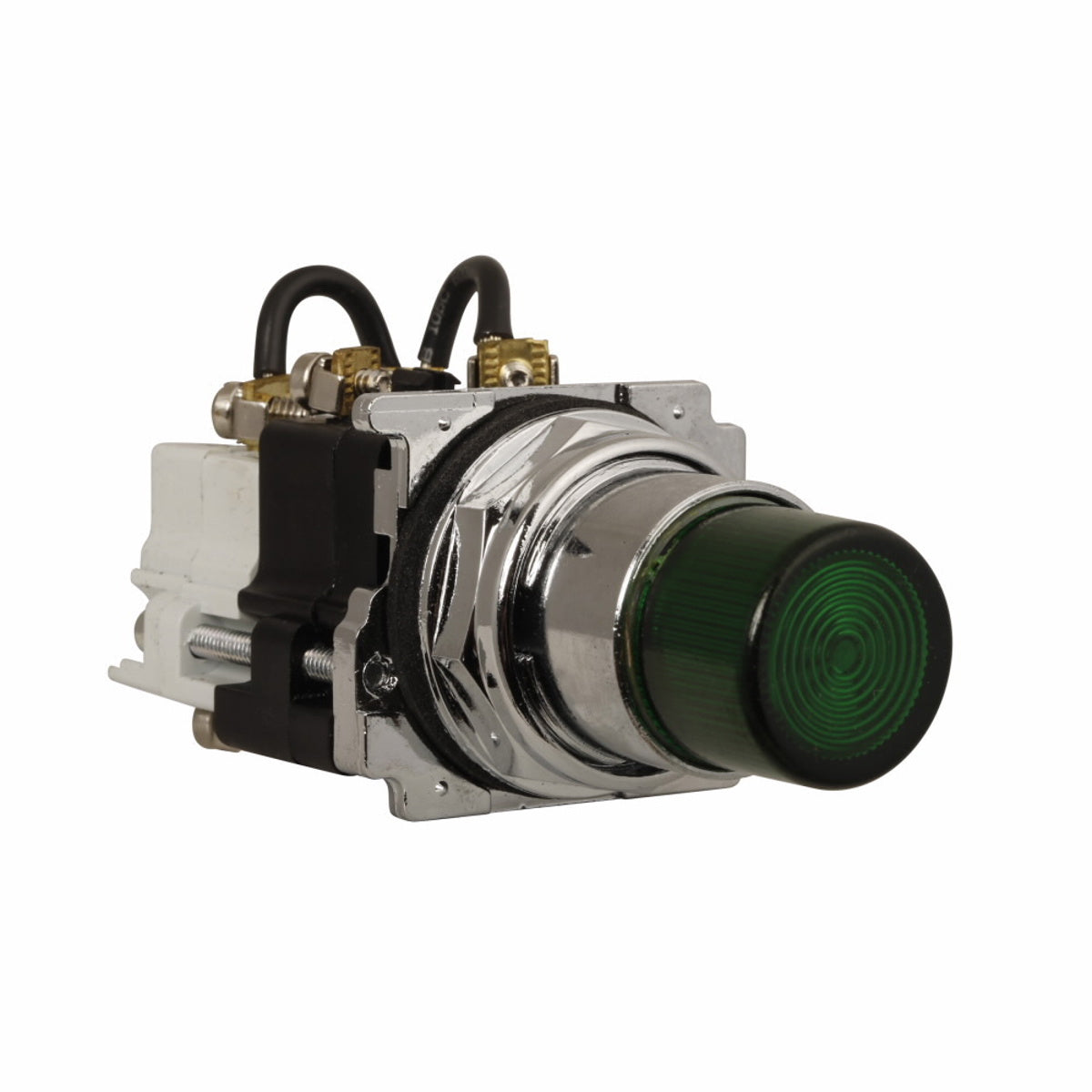

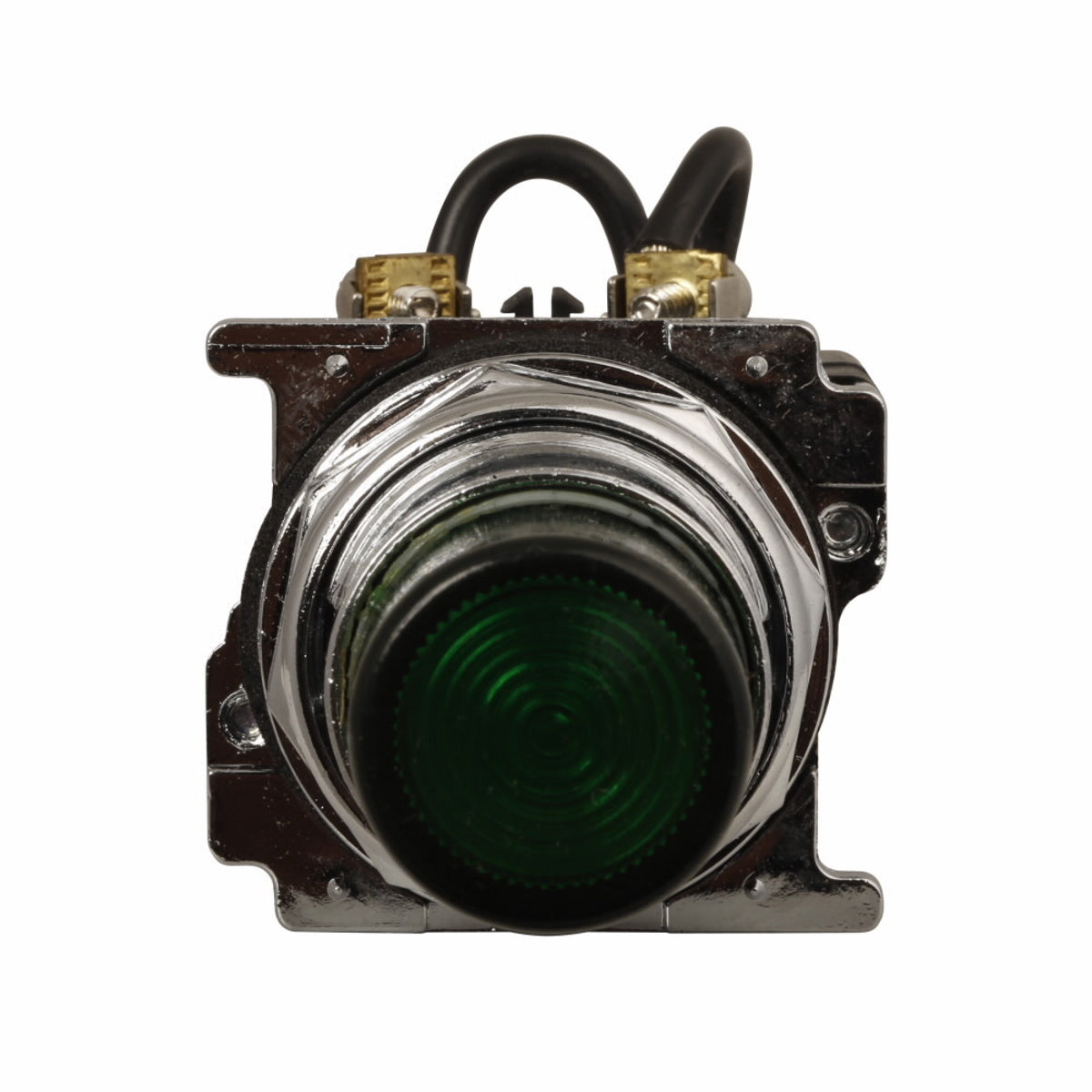

Eaton 10250T297LGP2A 10250T Pushbutton Heavy-duty Watertight and Oiltight Indicating Light 120 V 30.5 mm

Product Description

The Eaton 10250T297LGP2A is a heavy-duty watertight and oiltight indicating light with a 30.5 mm pushbutton. This full voltage LED unit features a PresTest actuator and is NEMA rated 3, 3R, 4, 4X, 12, and 13. It is designed for electrical assemblies, panels, and EOEM applications.

• Heavy-duty watertight and oiltight
• PresTest actuator
• Full voltage, 120 V

Product Highlights

Heavy-duty, oiltight, and watertight indicating light with PresTest actuator, full voltage LED, and NEMA rating.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T297LGP2A
• Country of Origin: Dominican Republic

Technical Specifications

• GTiN: 00782114712580
• Type: Full Voltage Heavy Duty Oiltight Watertight PresTest Actuator
• Brand: Eaton
• Style: 30.5 mm
• Height: 4.7 Inch
• Length: 2.6 Inch
• Actuator: PresTest
• Product UPC: 78211471258
• 12-Digit UPC: 782114712580
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Catalog Number: 10250T297LGP2A
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Standard: UL Listed,CSA Certified,CE Marked
• UPC: 782114712580
• Item Type: Pushbutton
• Average Life: 60000 to 100000 hr
• Base Type: Bayonet
• Bezel/Housing: Polished Chrome
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Environmental Conditions: 1 to 150 deg F Operating, 95% Relative Humidity at 60 deg C
• Lamp Type: LED
• Lens Color: Green
• Lens Material: Plastic
• Series: 10250T
• Shape: Round
• Size: 30.5 mm
• Terminal Type: Pressure Plate
• Voltage Rating: 120 VAC
• Amperage Rating: 0.5 A
• Lens Type: Fresnel
• Mounting Type: Panel
• Application: Automation and Logic Control Equipment Applications
• Standards/Approvals: BAA Compliant|CE Certified|EN 60947-5-1|EN 60947-5-5|CSA C22.2 #14|CSA File #LR68551|UL 508|UL 131568
• Material: Die Cast Zinc
• Finish: Chrome Plated
• Catalog ID: C-H10250T297LGP2A
• Operator Type: Button/Prestest
