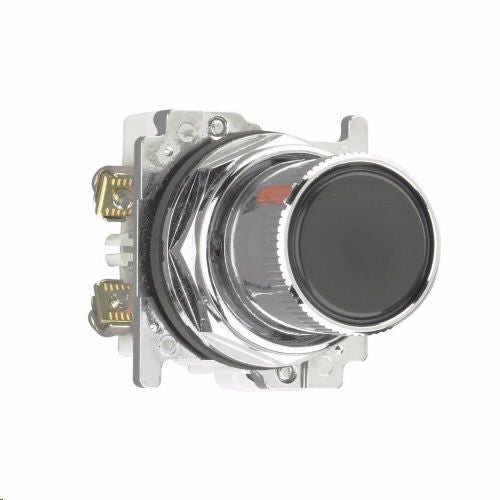

Eaton 10250T2415 Heavy-Duty Roto-Push Operator, 30.5 mm

Product Description

The EATON 10250T2415 is a heavy-duty roto-push operator, combining the function of a pushbutton and a selector switch. Contacts are operated by rotating the outer collar and pushing a button. It has a vertical mounting style and NEMA 3, 3R, 4, 4X, 12, 13, and IP65 enclosure ratings. The unit is suitable for electrical assemblies, panels, and EOEMs applications.

• Flush actuator
• Cam 5 code
• Vertical mounting

Product Highlights

The EATON 10250T2415 roto-push operator is a heavy-duty control unit with a flush button, ideal for industrial applications requiring robust and reliable operation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T2415

Technical Specifications

• SKU: 10250T2415
• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T2415
• UPC: 782113226613
• Product Length/Depth: 1.825 in
• Product Height: 2.2 in
• Product Width: 1.825 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Actuator color: Black
• Cam code: Cam 5
• Mounting: Vertical
• Actuator: Flush
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Series: 10250T
• UNSPSC Code: 39120000
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: 10250T2415
• Unit of Measure: EA
• Voltage Rating: 120 VAC
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Temperature Rating: 1 to 150 deg F
• Size: 30.5 mm
• Catalog ID: C-H10250T2415
• Standard & Approvals: UL Listed, CSA, CE Certified
• Number of positions: 2
• Operating mode: Momentary
• Contact Rating: 10 A at 600 VAC
• Material: Die-Cast Zinc
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Operator Type: Flush Button
• Finish: Polished Chrome
• UNSPSC: 39122216
• Condition: New
