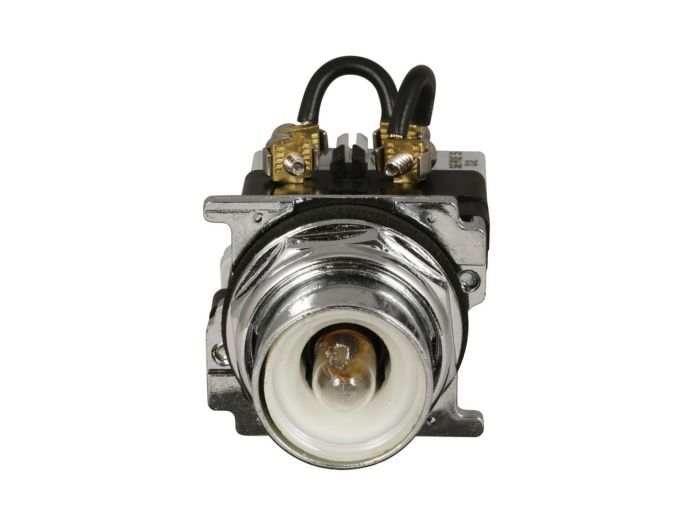

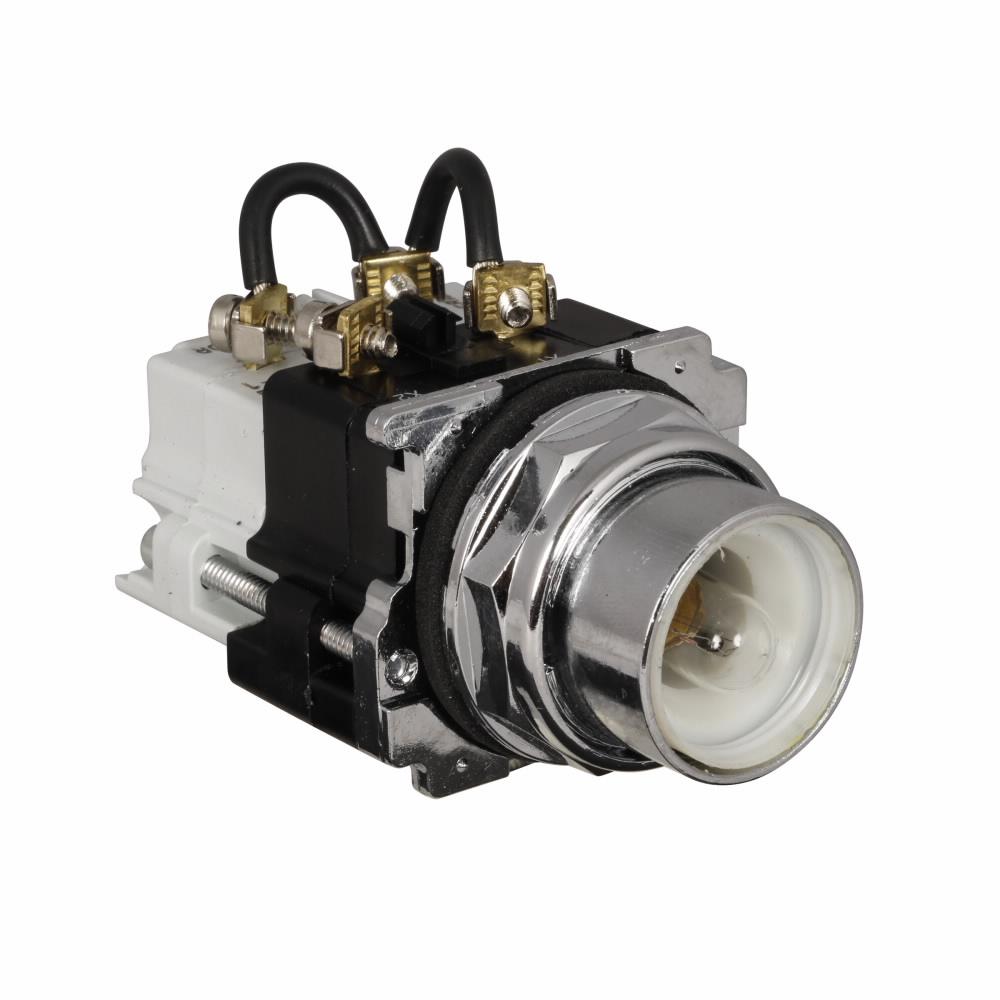

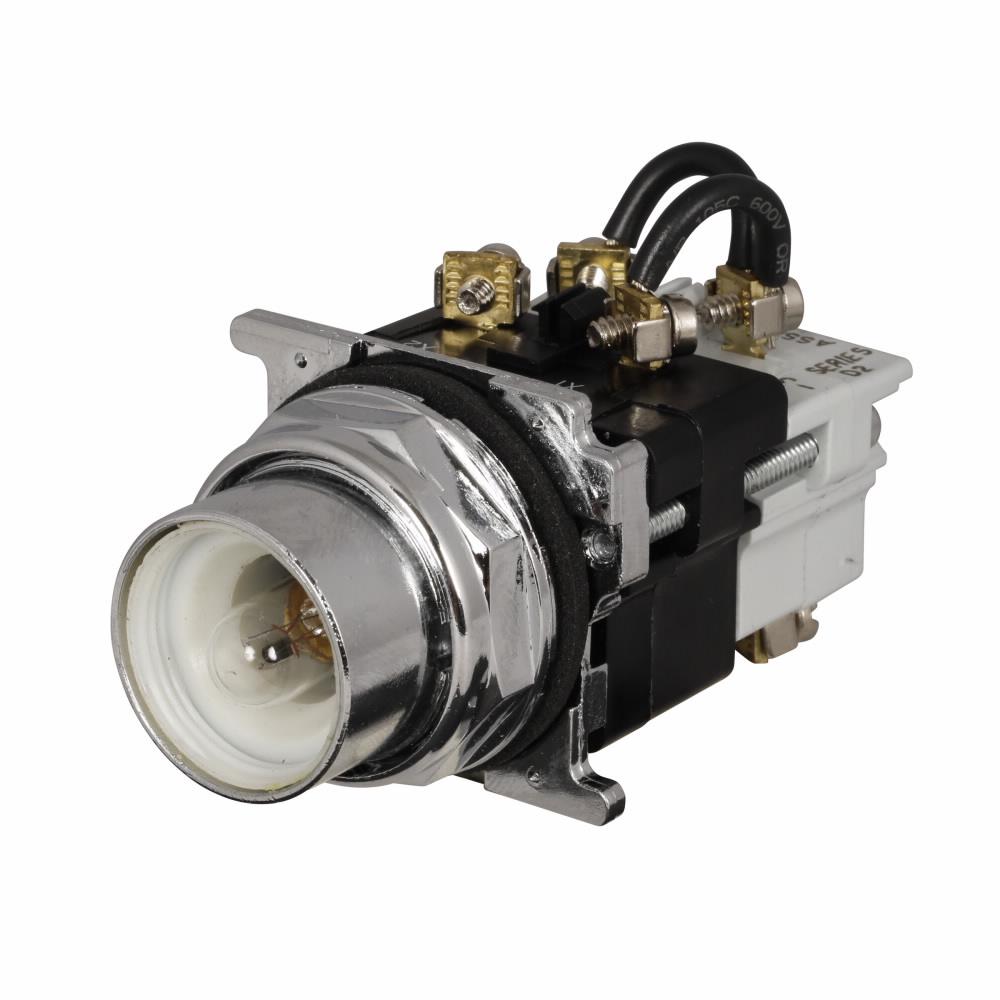

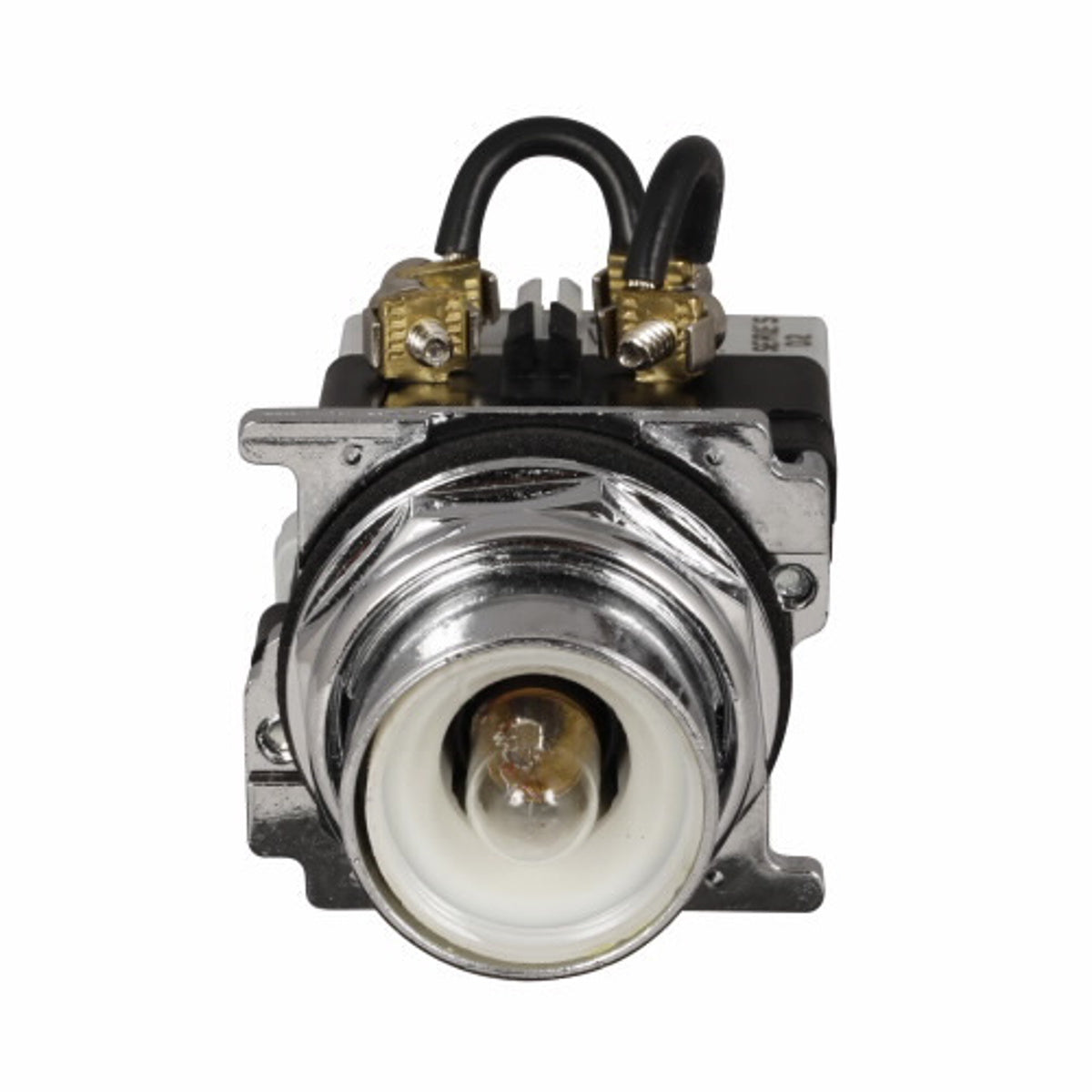

Eaton 10250T235NC21 Pushbutton Heavy-duty Watertight and Oiltight Indicating Light 24 Vac/dc

Product Description

The Eaton 10250T235NC21 pushbutton is a heavy-duty, watertight, and oiltight indicating light. This 30.5 mm pushbutton features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent liquid buildup inside, preventing operation in freezing environments.

• Heavy-duty watertight and oiltight design
• Features reliability nibs for improved contact
• Drainage holes prevent liquid buildup

Product Highlights

The Eaton 10250T235NC21 is ideal for electrical assemblies, panels, and EOEM applications requiring a robust and reliable pushbutton.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T235NC21
• Country of Origin: United States

Technical Specifications

• Catalog Number: 10250T235NC21
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: United States
• Made in USA: Yes
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Standard: UL Listed,CSA Certified,CE Marked
• Item Type: Pushbutton
• Bezel/Housing: Round Metal/Polished Chrome
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• Lamp Type: Incandescent
• Lens Material: Plastic
• Series: 10250T
• Size: 30.5 mm
• Terminal Type: Screw
• Type: Heavy Duty Full Voltage PresTest Oiltight Watertight
• Voltage Rating: 24 VAC/VDC
• Product Name: Eaton 10250T pushbutton
• UPC: 782114705155
• Product Length/Depth: 0.01 in
• Product Height: 0.01 in
• Product Width: 0.01 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Light unit type: Incandescent, full voltage
• Light unit voltage: 24 Vac/dc
• Actuator: PresTest
• Lens Color: Red
• Rating: NEMA 3 NEMA 4 NEMA 12 NEMA 13 NEMA 4X NEMA 3R
• Product Series: 10250T
• Family Series: Cutler Hammer, Div of Eaton Pilot Lights, 10250T Series
• Description: Eaton 10250T pushbutton, Heavy-duty watertight and oiltight Indicating Light, PresTest, Incandescent, Full voltage, NEMA 3, 3R, 4, 4X, 12, 13, Red, Plastic, 24 Vac/dc
• Push-to-Test: Yes
• Mounting: 30 mm
• Lens/Button Shape: Round Extended
• Bezel: Metal Round
• Nominal Lamp Voltage: 24 VAC, 24 VDC
• Protection Rating: IP65
