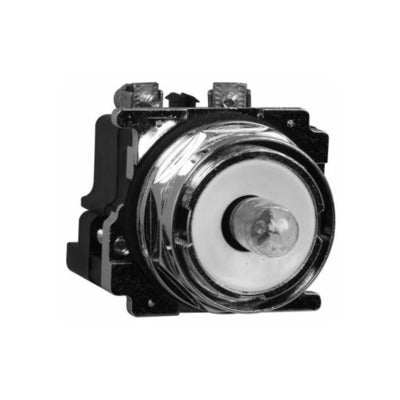

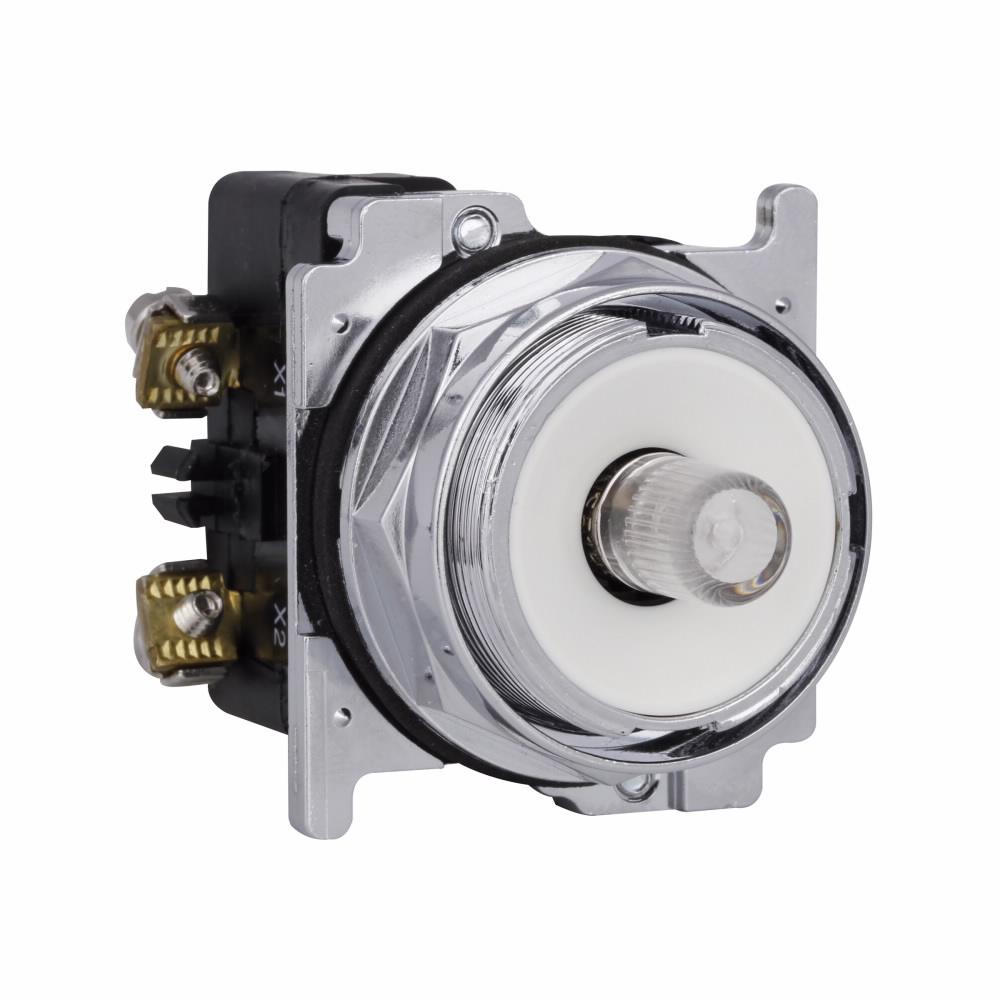

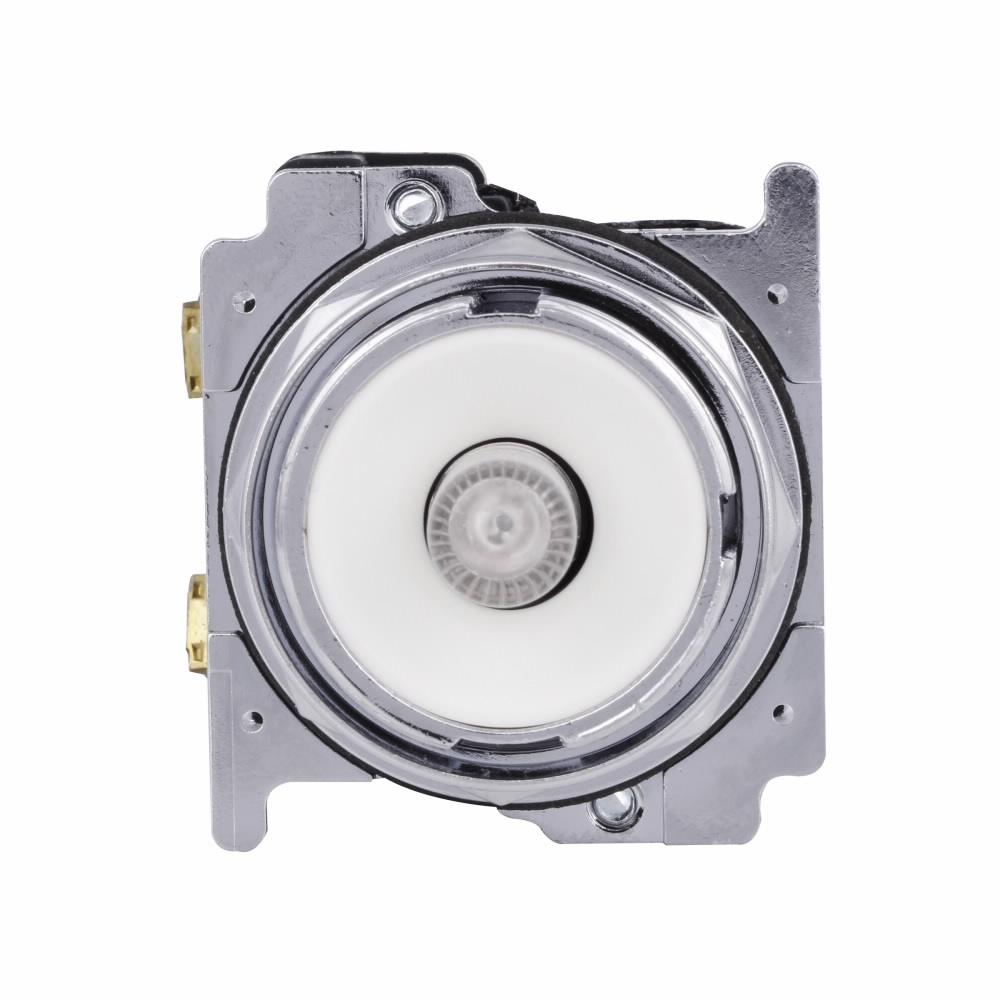

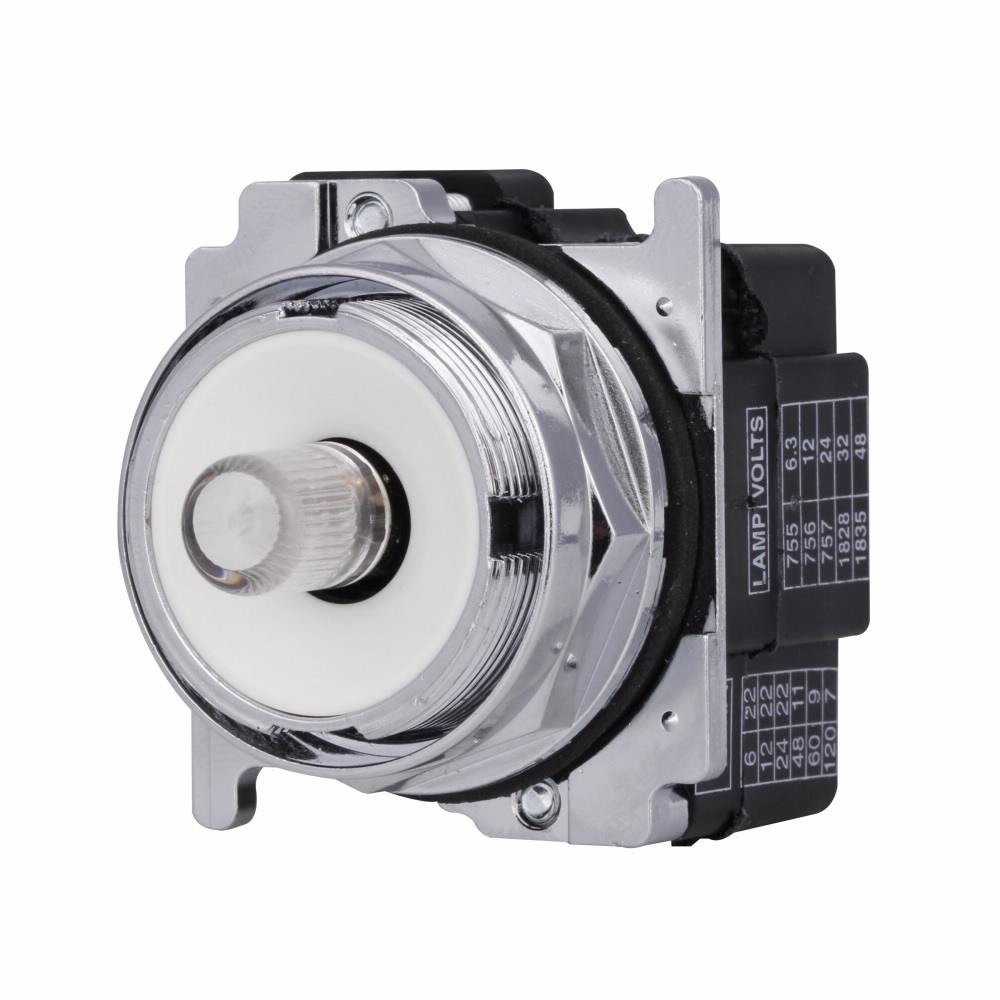

Eaton 10250T226N indicating light 120 VAC/VDC

Product Description

The EATON 10250T226N is part of the 10250T line of 30.5 mm pushbuttons, featuring heavy-duty zinc die-cast construction. It improves contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent liquid build-up inside, preventing operation issues in freezing environments. It is a heavy-duty oil/watertight standard actuator.

• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes
• Grounding nibs on the operator casing

Product Highlights

This EATON indicating light has a die-cast zinc bezel/housing, and a NEMA 3/3R/4/4X/12/13 enclosure.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T226N
• Country of Origin: United States

Technical Specifications

• Bezel/Housing: Die Cast Zinc
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• Lamp Type: Incandescent/Neon
• Series: 10250T
• Size: 30.5 mm
• Type: Heavy Duty Oil/Watertight Standard Actuator
• Voltage Rating: 120 VAC/VDC
• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T226N
• UPC: 782113148212
• Product Length/Depth: 2.4 in
• Product Height: 3.4 in
• Product Width: 2.1 in
• Compliances: CE Marked
• Certifications: UL Listed
• Product Type: Pushbutton
• Light unit type: Incandescent, neon
• Light unit voltage: 120 Vac/dc
• Actuator: Standard
• Style: 30.5 mm
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Pilot light
• Product series / family name: 10250 series
• Functions: 30mm pilot light/lamp neon bulb
• Supply voltage (AC): 120Vac
• Shape: Round
• Diameter: 30.5mm (door punch)
• Connection type: with pressure connections
• Degree of protection: IP65
• NEMA 3: NEMA 3R
• NEMA 4: NEMA 4X
• NEMA 12: NEMA 13
• Material: Zinc die cast (body) Chrome-plated (housing)
• Manufacturer product status: Commercialized
• Compliant with standard(s): CE EN60947-5-1 EN60947-5-5 UL508 CSA
• Approval: CE, UL, CSA
• Terminal Connection: Saddle Clamp
• Nema Rating: 3, 3R, 4; 4X,12, 13
• Duty Rating: Heavy Duty
• Actuator Type: Standard
• Body Material: Metal
• Manufacturer Part Number: 10250T226N
