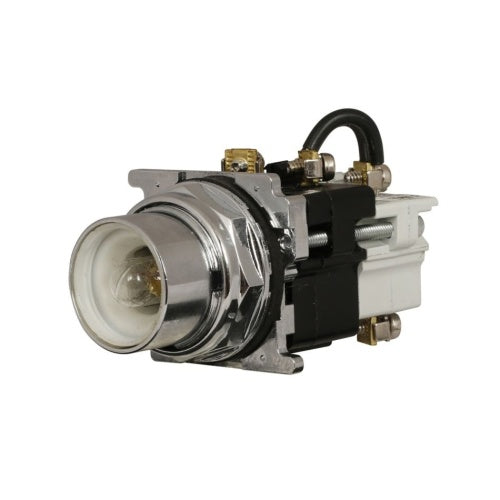

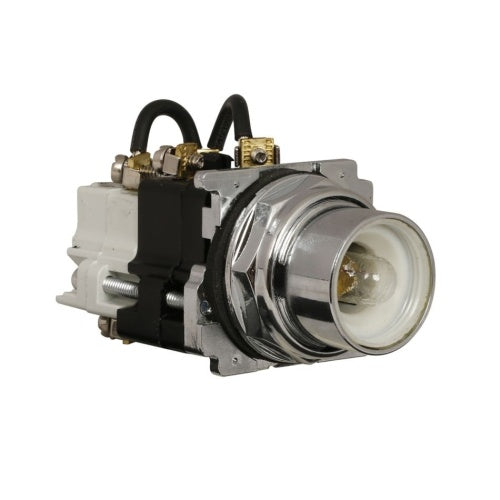

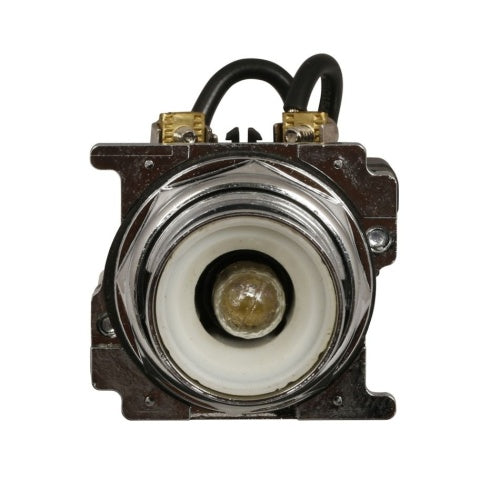

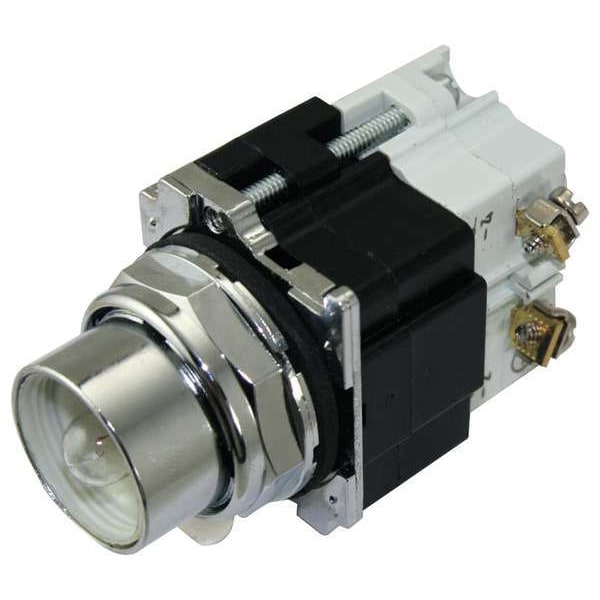

Eaton 10250T223N Heavy Duty PresTest Transformer Oiltight Watertight Indicating Light 380 VAC

Product Description

The EATON 10250T223N is a heavy-duty PresTest transformer oiltight watertight indicating light. This 30.5 mm pushbutton features a heavy-duty die-cast zinc construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent liquid build-up inside, preventing operation issues in freezing environments.

• Without lens
• Heavy-duty zinc die-cast construction
• Durable chrome finish

Product Highlights

The EATON 10250T223N heavy-duty pushbuttons are designed to excel in challenging environments. Engineered to be water and oil-tight, these pushbuttons are ideal for applications demanding unwavering reliability and durability.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T223N
• Country of Origin: Dominican Republic

Technical Specifications

• UNSPSC: 39121534
• Lamp Type: Incandescent
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Terminal Type: Screw
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• Voltage Rating: 380
• Size: 30 mm
• Type: Incandescent
• Series: 10250T
• Alternate Mfr Part Number: 10250T223N
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: 10250T223N
• UPC Code: 782113772547
• NEMA Rating: 12, 13, 3, 3R, 4, 4X
• Component: Push Button
• Manufacturer: Eaton
• (Switching-Indication) Size: 30.5 mm
• (Switching-Indication) Legend: START
• Item: Pilot Light
• Voltage: 380V AC
• Shape: Round
• Terminal Connection: Saddle Clamp
• Lens Material: No Lens Included
• Lens Type: No Lens Included
• Lamp Module Type: Transformer
• Basic Material: Metal
• IP Rating: IP65
• Body Material: Metal
• Includes: Light Module, Operator
• Standards: CE, CSA, UL Listed
• Replacement Lamps: 6VF17
• Lamp Voltage: 6V AC/DC
• Product Name: Eaton 10250T pushbutton
• Actuator: PresTest
• Light Unit Type: Incandescent, transformer
• Rating: NEMA 4X;NEMA 4;NEMA 13;NEMA 3;NEMA 3R;NEMA 12
• Light Unit Voltage: 380 Vac
• Compliances: CE Marked
• Certifications: UL Listed;CSA Certified
• Lamp Color: Clear
• Includes Lamp Module: No Lamp Module Included
• Lens Color: No Lens Included
• NEMA Enclosure Rating: 12, 13, 3, 3R, 4, 4X
• Lamp Voltage - Maximum: 380 V AC
• Includes Lens: No Lens Included
• Resistance Properties: Oil and Grease Resistant; Watertight
• Includes Push-To-Test: Push-To-Test Included
• Body Finish: Chrome Plated
• Voltage Rating - Maximum: 120 V AC/DC
• Panel Cutout Diameter: 30 mm
• Max Lamp Bulb Voltage: 380 V AC
• Max Voltage Rating (Supply): 120 V AC/DC
• Panel Mounting Hole Diameter: 30 mm
• Lamp Bulb Color: Clear
• Lamp Bulb Type: Incandescent
• Category: Optoelectronics
• Panel Indicators, Pilot Lights: Panel Indicators, Pilot Lights
• Ratings: AC
• Panel Cutout Shape: Round
• Packaging: Box
• Panel Cutout Dimensions: 1.20" (30.50mm)
• Part Status: Active
• Termination Style: Screw Terminal
• Ingress Protection: IP65, NEMA 3, 3R, 4, 4X, 12, 13
• (Switching-Indication) NEMA Rating: NEMA 4X
