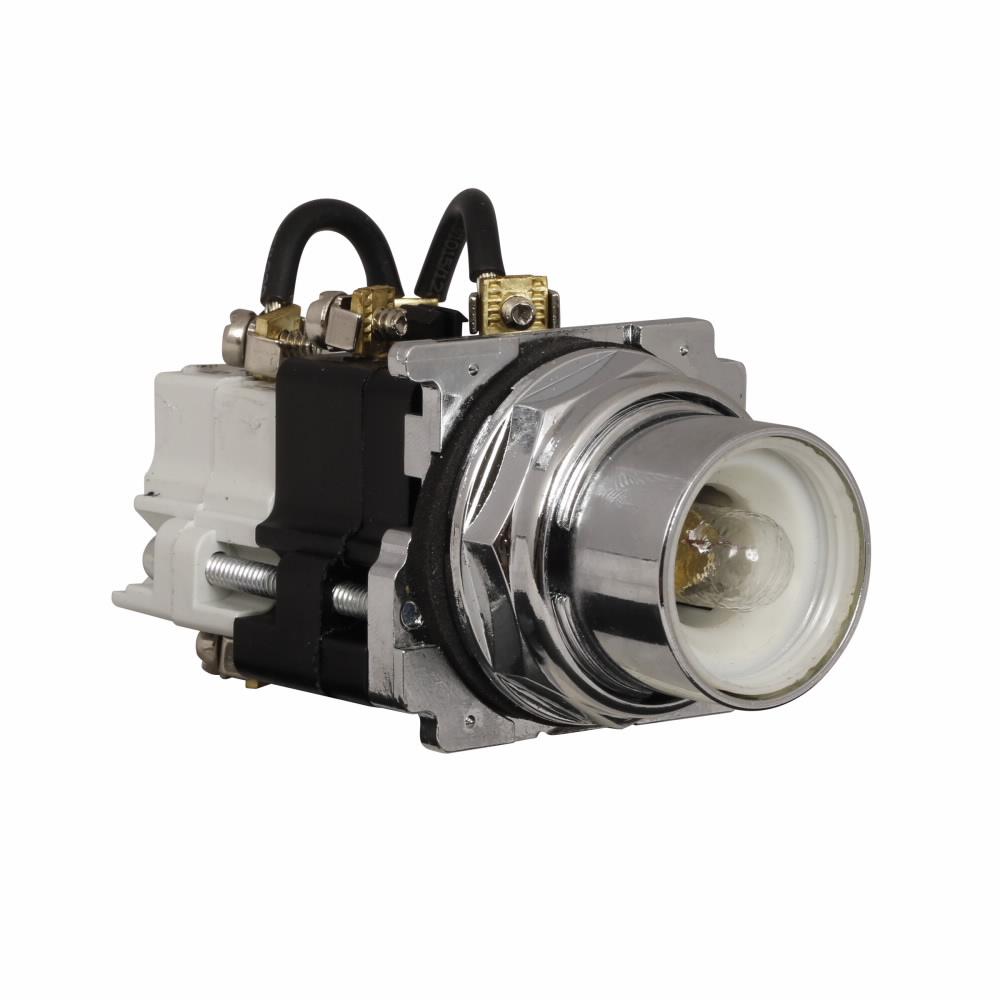

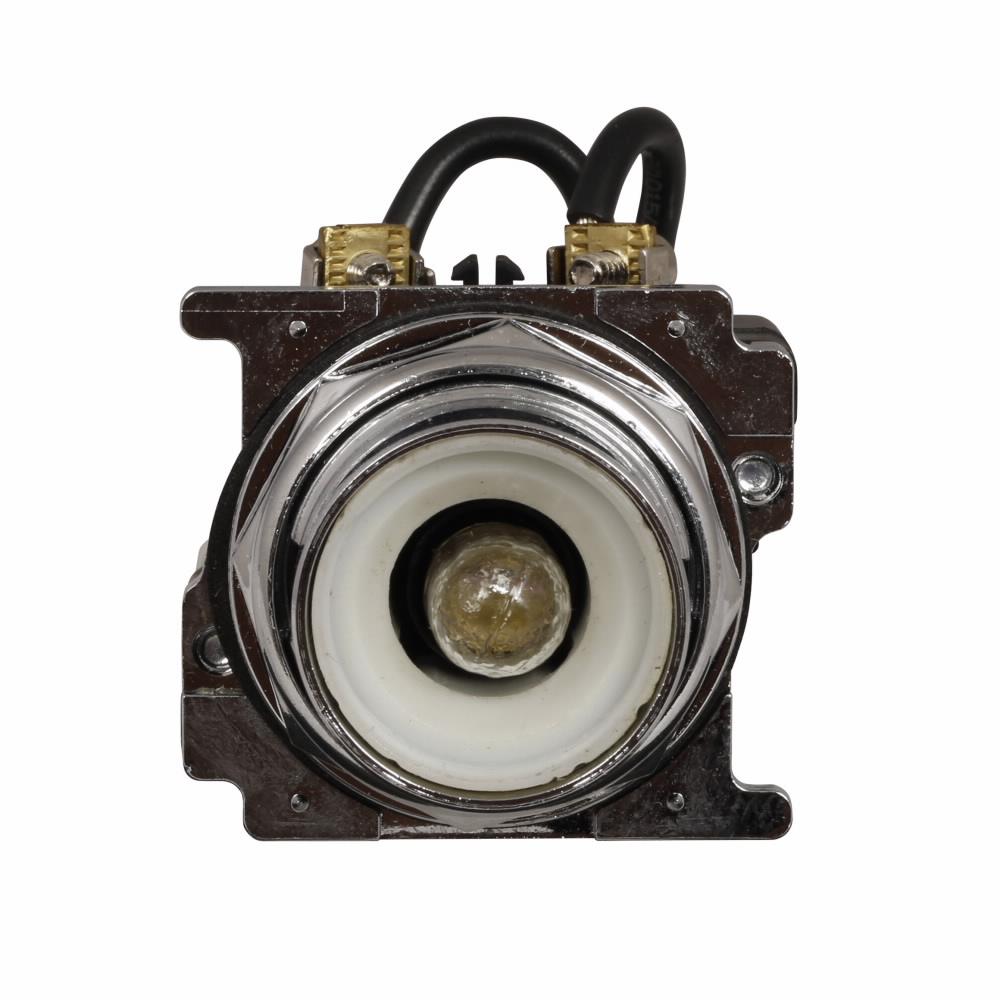

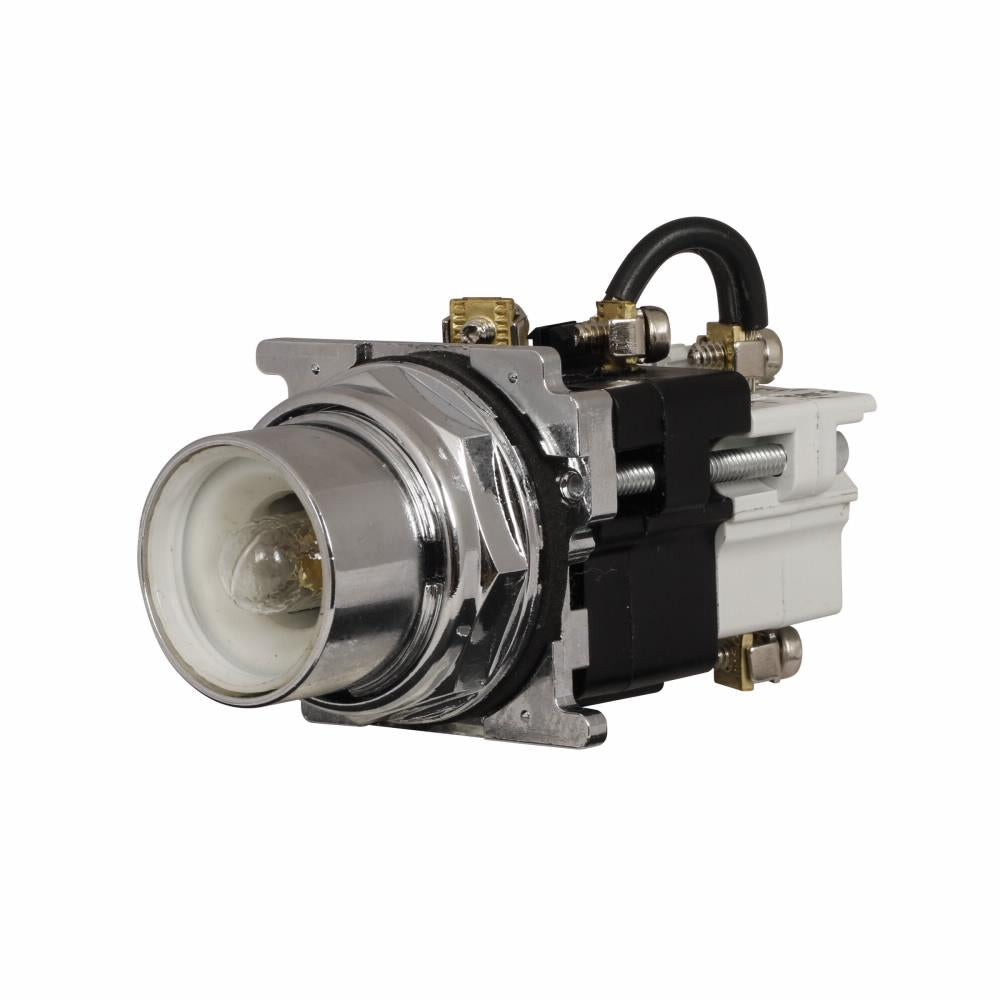

Eaton 10250T221N Indicating Light 120 VAC 30.5 mm

Product Description

The EATON 10250T221N is part of the 10250T line of 30.5 mm pushbuttons, featuring heavy-duty die-cast zinc construction. Reliability nibs enhance contact reliability, even in dry circuit and fine dust conditions. Drainage holes prevent liquid buildup, ensuring operation in freezing environments. It is a heavy-duty oiltight watertight PresTest actuator indicating light with an incandescent lamp and a polished chrome/die-cast zinc bezel/housing.

• Contact blocks feature enclosed silver contacts with pointed reliability nibs.
• Features a 755 lamp number and transformer type light unit.
• NEMA 3/3R/4/4X/12/13/IP65 enclosure.

Product Highlights

Heavy-duty, oiltight, and watertight indicating light with reliable switching for various applications and environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T221N

Technical Specifications

• Bezel/Housing: Polished Chrome/Die Cast Zinc
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Environmental Conditions: 1 to 150 deg F Operating
• Lamp Type: Incandescent
• Series: 10250T
• Shape: Round
• Size: 30.5 mm
• Terminal Type: Pressure Plate
• Type: Heavy Duty Oiltight Watertight PresTest Actuator
• Voltage Rating: 120 VAC
• Catalog Number: 10250T221N
• UPC: 782113772523
• Product Length/Depth: 3.5 in
• Product Height: 2 in
• Product Width: 2.5 in
• Product Type: Pushbutton
• Light unit type: Incandescent, transformer
• Light Unit Voltage: 120 Vac
• Actuator: PresTest
• Style: 30.5 mm
• Rating: NEMA 12 NEMA 4X NEMA 3 NEMA 3R NEMA 4 NEMA 13
