Eaton 10250T21LB electrical 30.5 mm 600 VAC 2NO 3-position selector switch

Product Description

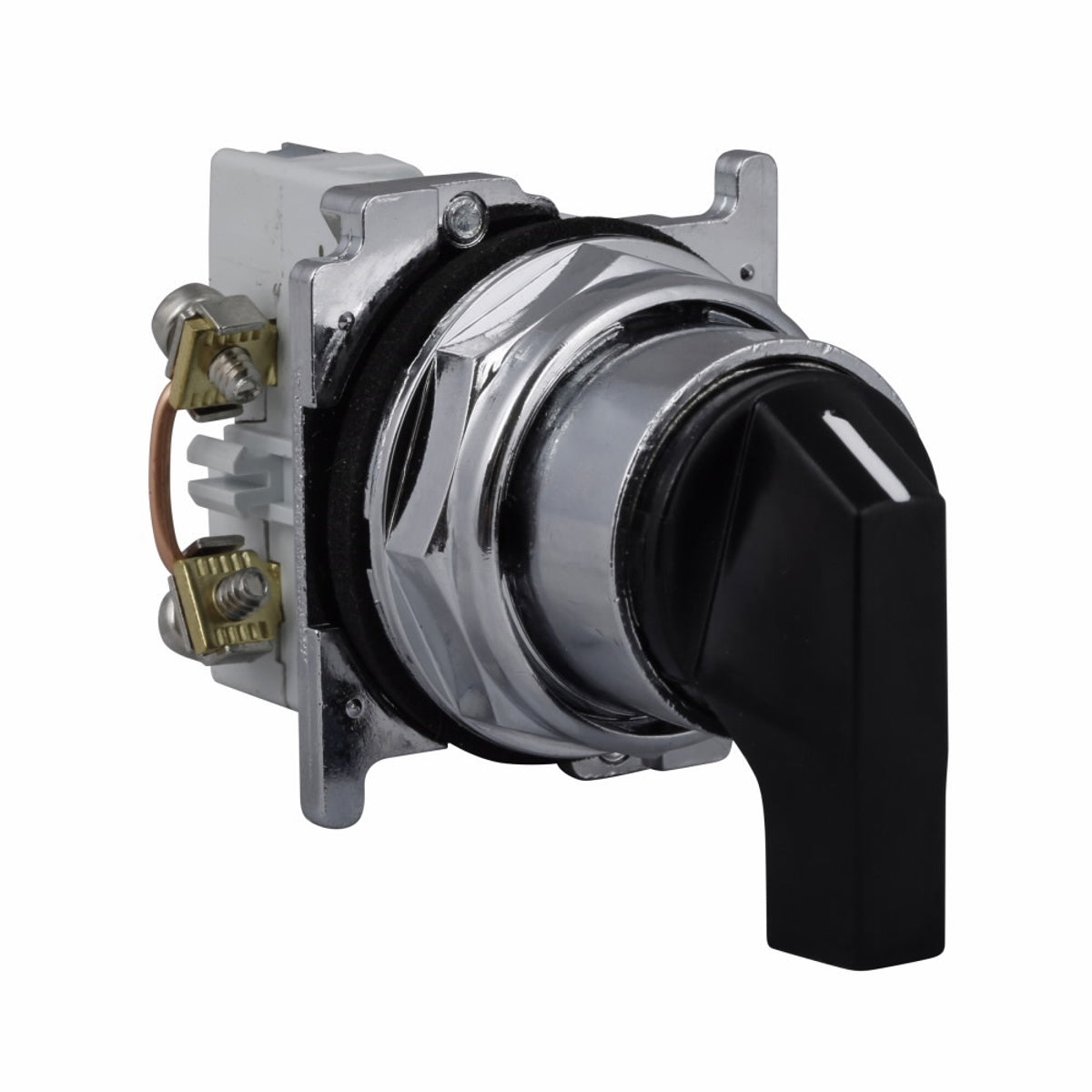

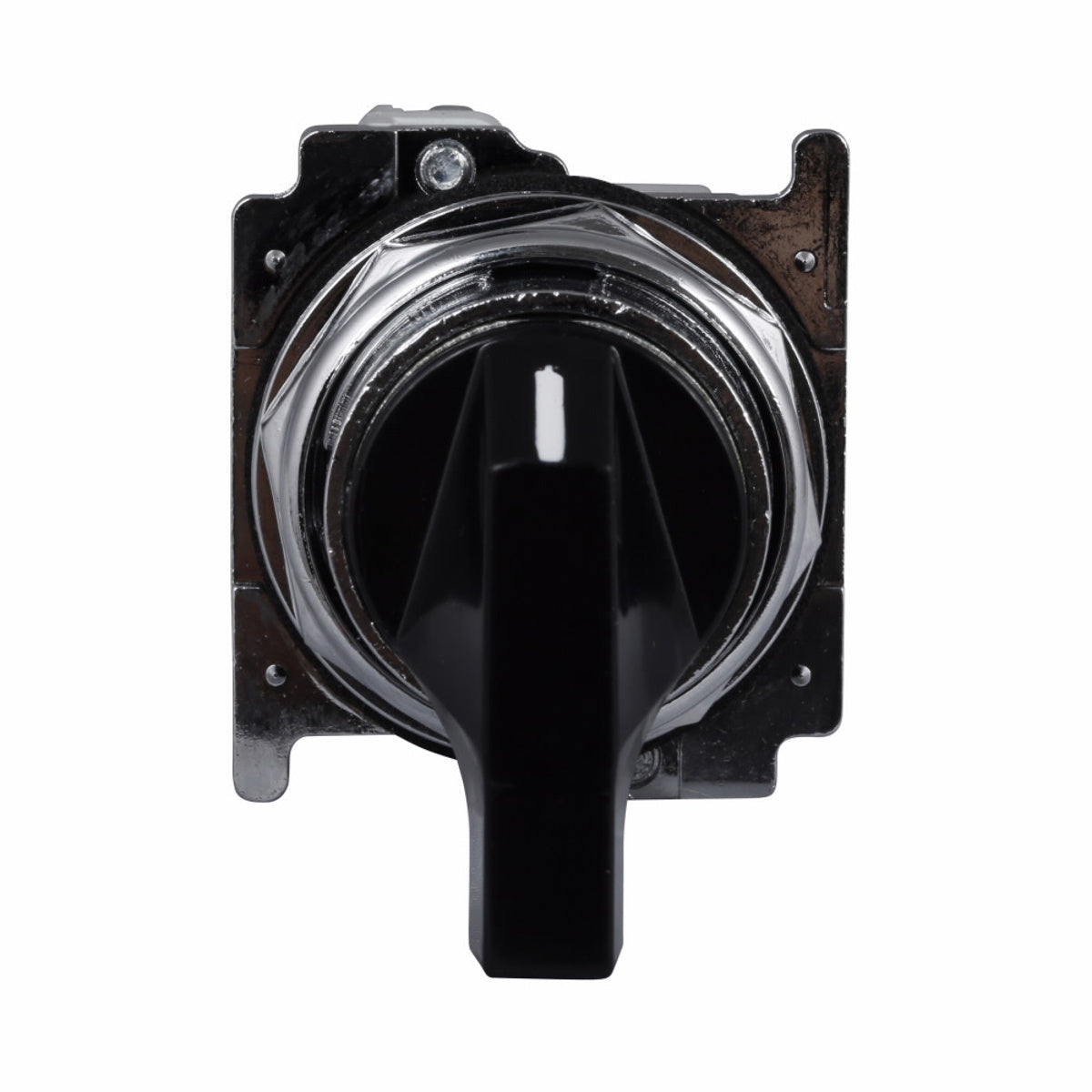

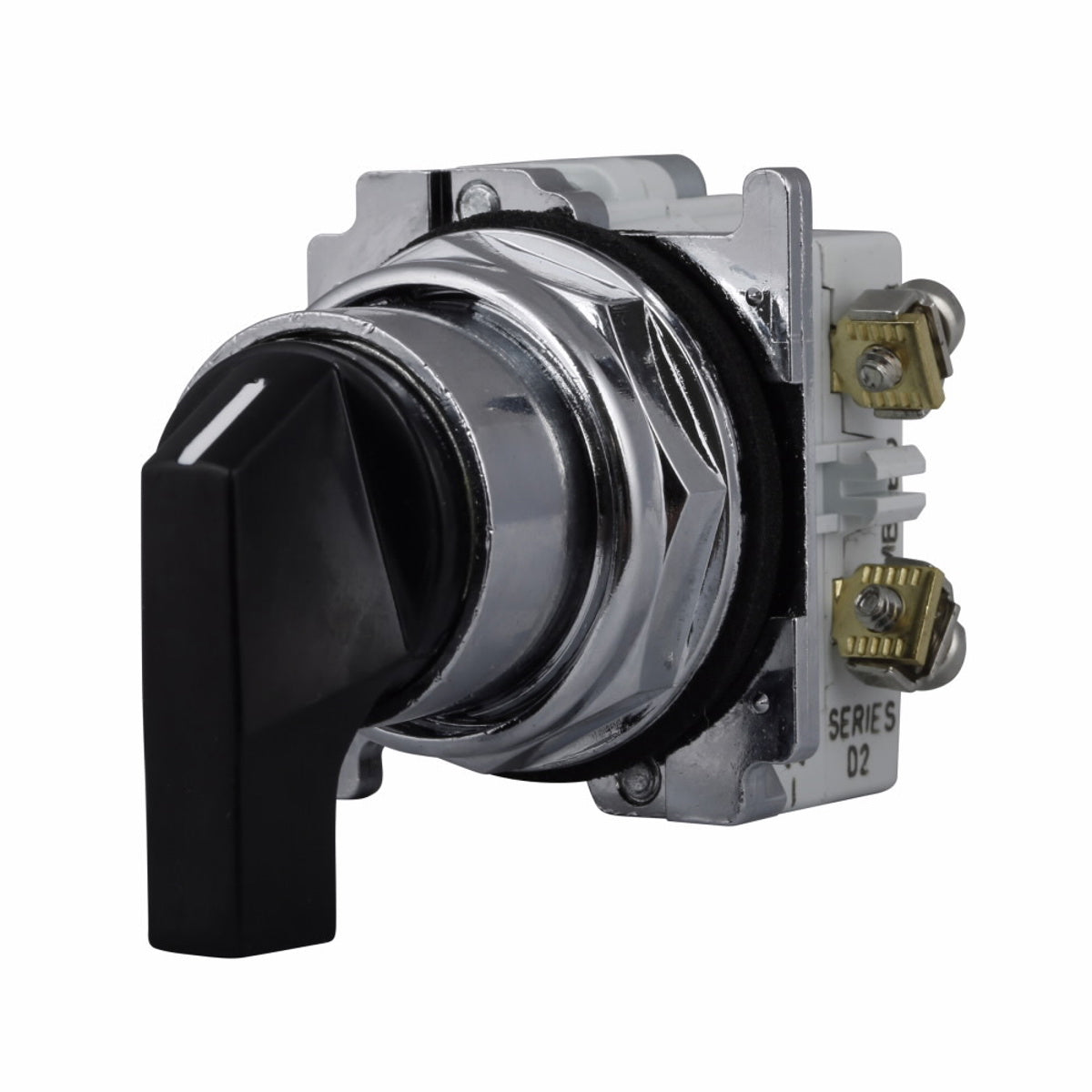

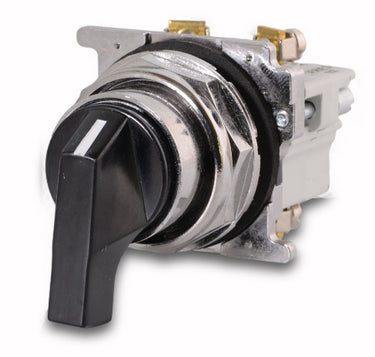

The EATON 10250T21LB is a heavy-duty assembled selector switch with a 30.5 mm size and a 2NO contact configuration. This non-illuminated, three-position switch features a lever actuator and is designed for use in various applications. It has a 60 degree throw and a maintained contact mode.

• Heavy-Duty Assembled Selector Switch
• Non-illuminated
• Three-position

Product Highlights

This selector switch features enclosed silver contacts, diaphragm seals, and grounding nibs for enhanced reliability and performance in demanding environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T21LB
• Country of Origin: Dominican Republic

Technical Specifications

• Size: 30.5 mm
• Type: Heavy Duty, 60
• Brand: Eaton
• Width: 2.4 in
• Action: Maintained
• Height: 2 Inch
• Length: 3.4 Inch
• Actuator: Lever
• Standard: UL,CE Marked,CSA
• Duty Rating: Heavy Duty
• Terminal Type: Screw
• Bezel Material: Metal
• Product Series: 10250T
• Number of Positions: 3
• Contact Configuration: 2 NO
• NEMA: 13,3R,4X,4,12,3
• Catalog Number: 10250T21LB
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Item Type: Pushbutton
• Contact Mode: Maintained
• Contact Rating: 10 A at 600 VAC 50/60 Hz
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Material: Die Cast Zinc
• Throw: 60 deg
• Enclosure: NEMA 3/3R/4/4X/12/13/IP65
• Standards/Approvals: CE Marked|CSA Certified|cULus Listed|UL File No. E23223|UL Listed
• Voltage: 600
• MPN: 10250T21LB
• Series: 1025
