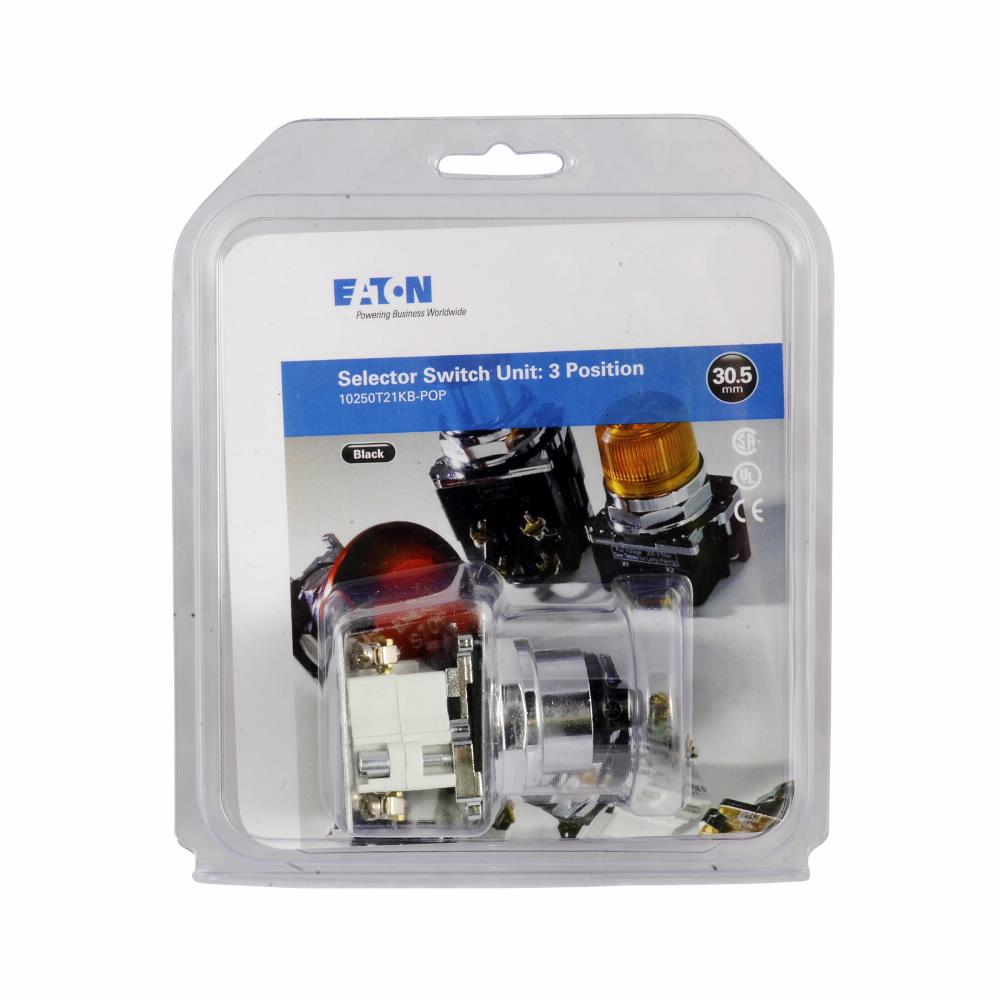

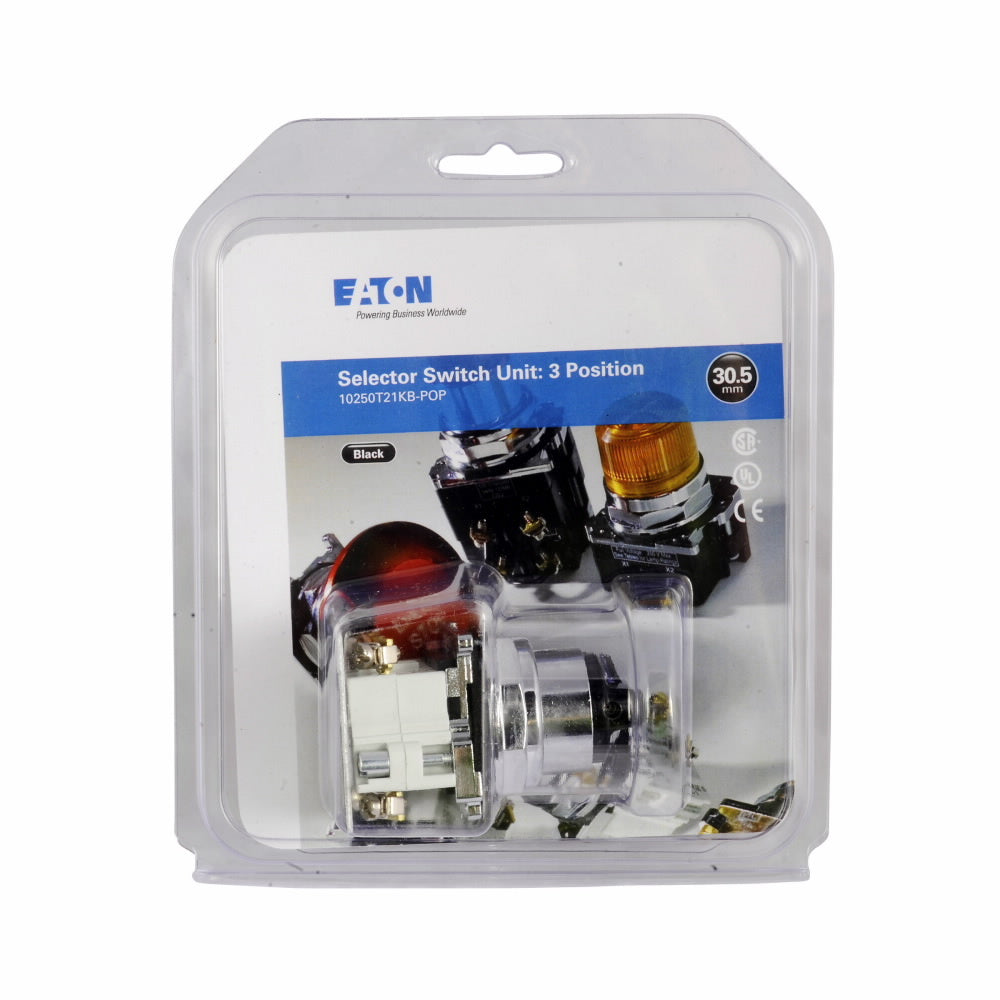

Eaton 10250T21KB-POP Eaton Heavy-duty Assembled Selector Switch 30.5 mm 60 throw

Product Description

Eaton’s heavy-duty assembled selector switch, model 10250T21KB-POP, features a durable zinc die-cast construction. It is designed for long-lasting usage and reliable performance in demanding environments. The switch is maintained with three positions and has a 60-degree throw. It is ideal for various applications in electrical assemblies and control panels.

• 30.5 mm size compatible with most panel openings.
• NEMA rating ensures protection against dust and water.
• Easy installation with screw terminal connections.

Product Highlights

This Eaton selector switch is a robust solution for control circuits in industrial settings. Its durable design incorporates features for reliability and safety.

Product Information

Standard Information

• MPN: 10250T21KB-POP
• Brand: Eaton

Technical Specifications

• Actuator: Knob
• Contact Configuration: 2 NO
• Number of Positions: 3
• Throw: 60 degrees
• Material: Die Cast Zinc
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Contact Rating: 10 Amps at 600 Volts AC, 5 Amps at 250 Volts DC
• Country of Origin: Dominican Republic
