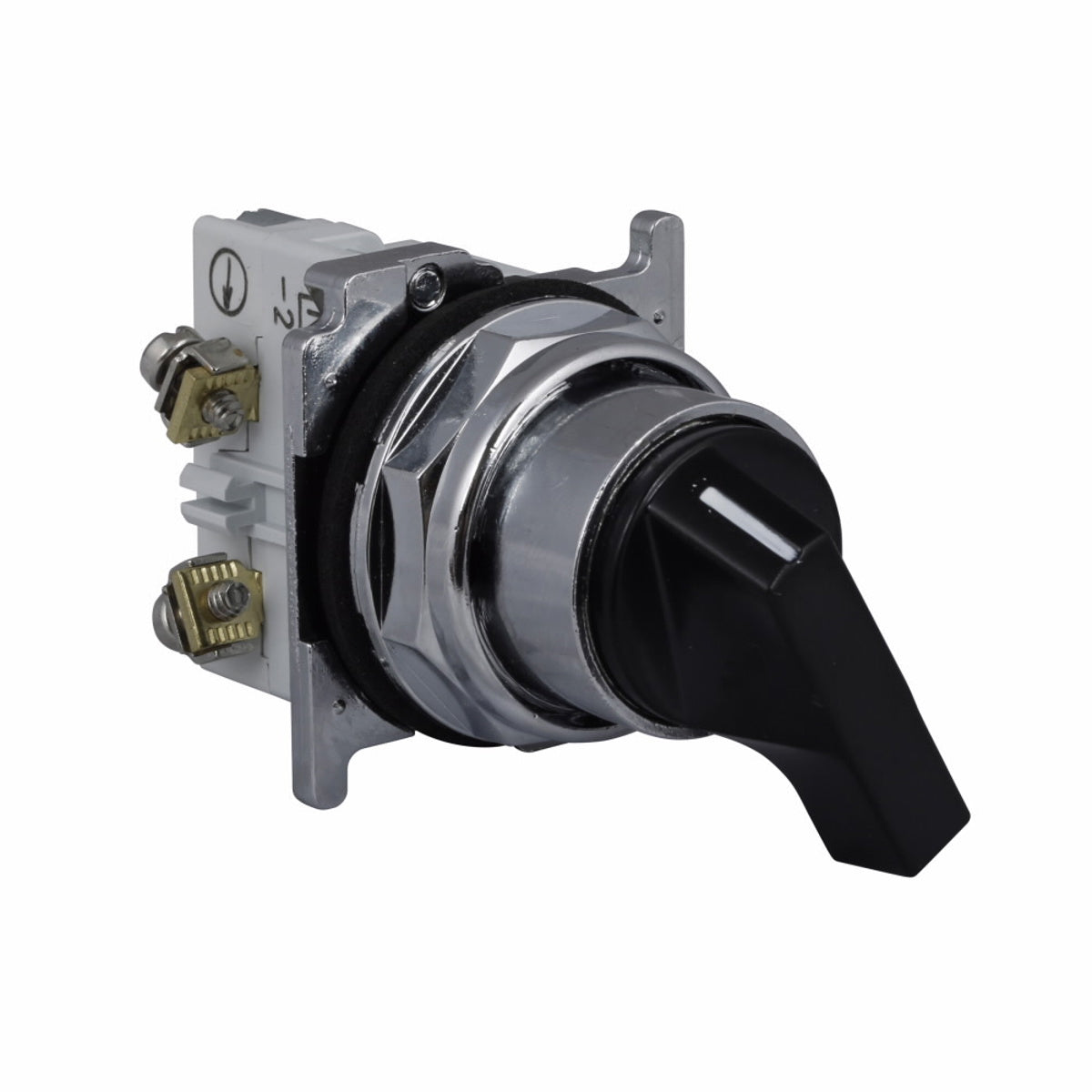

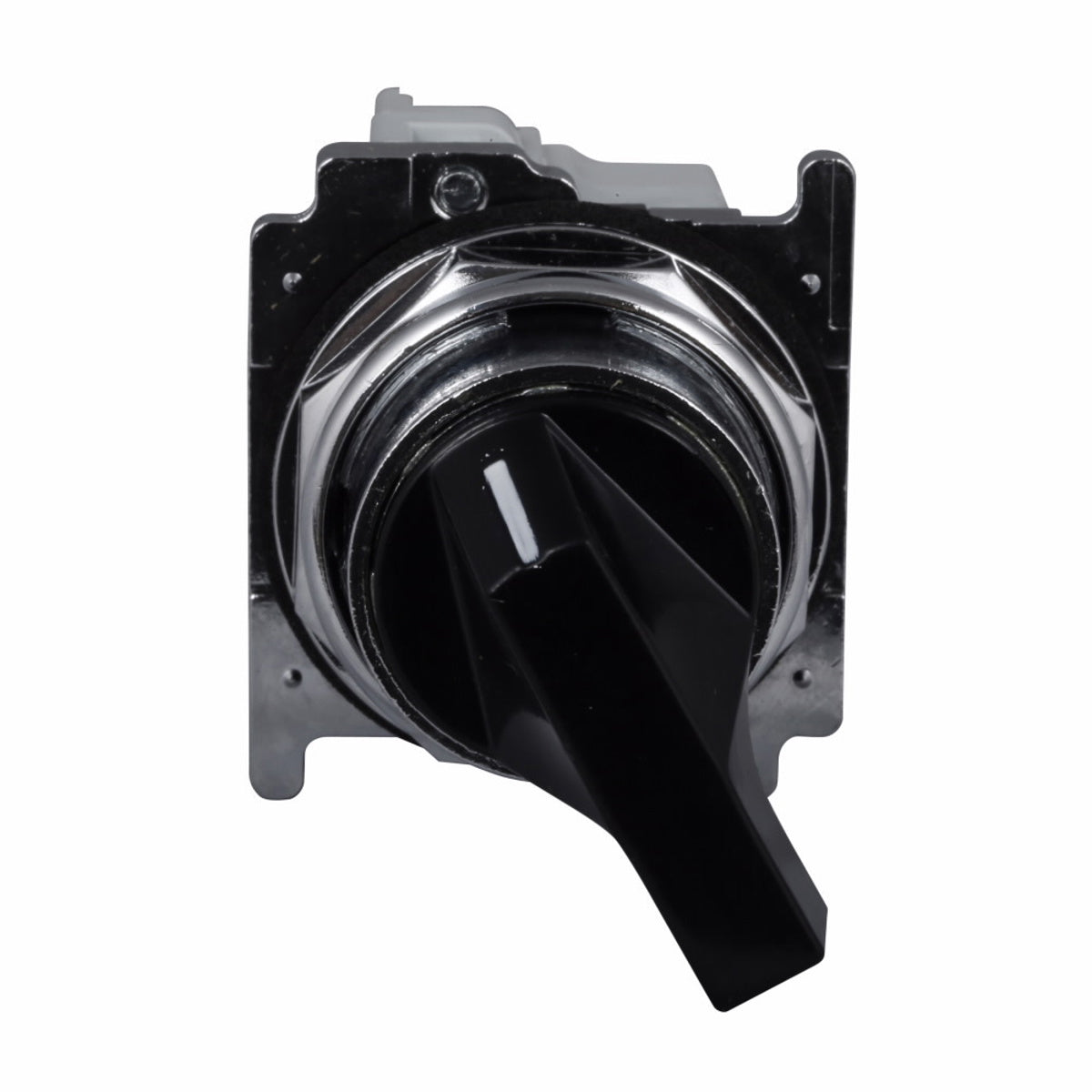

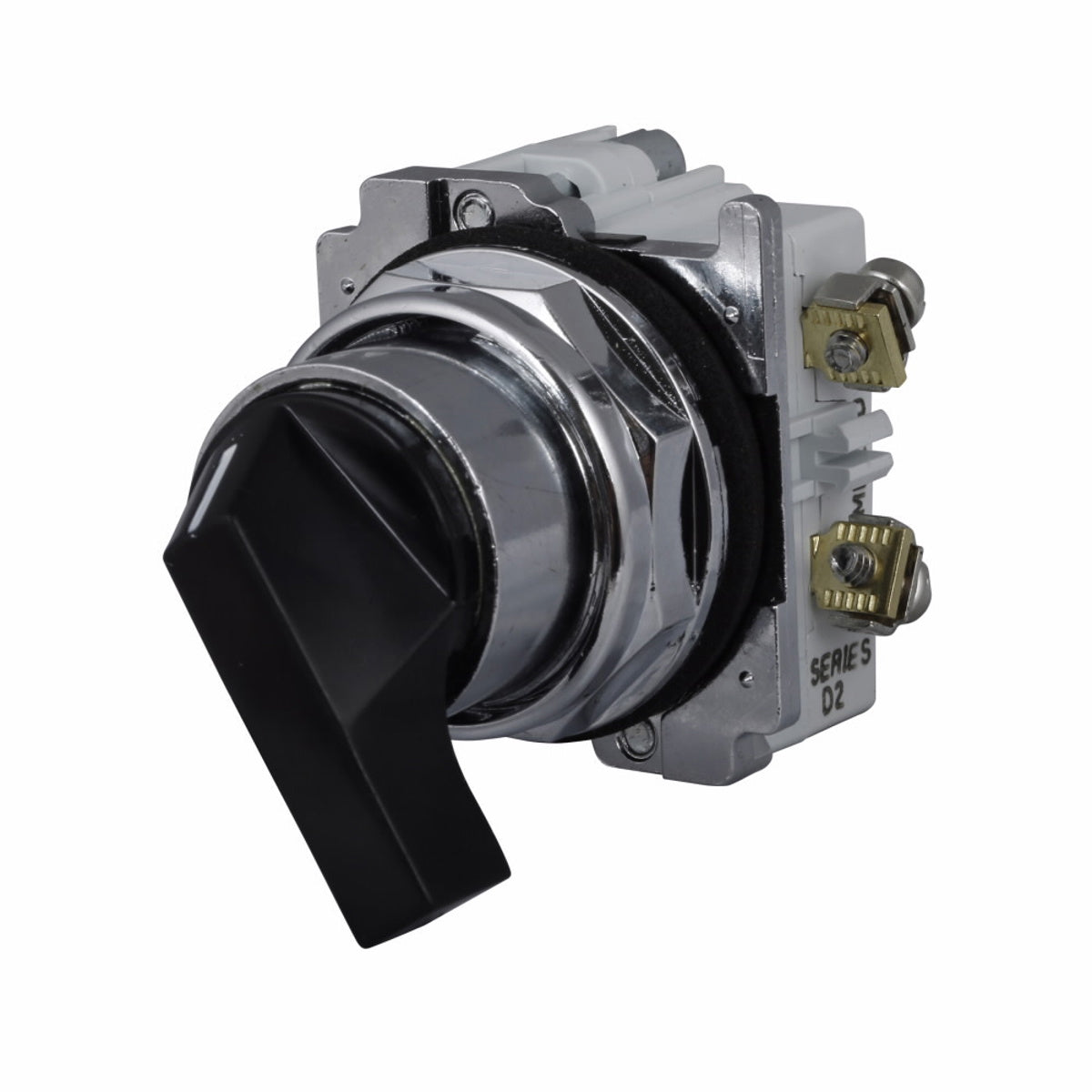

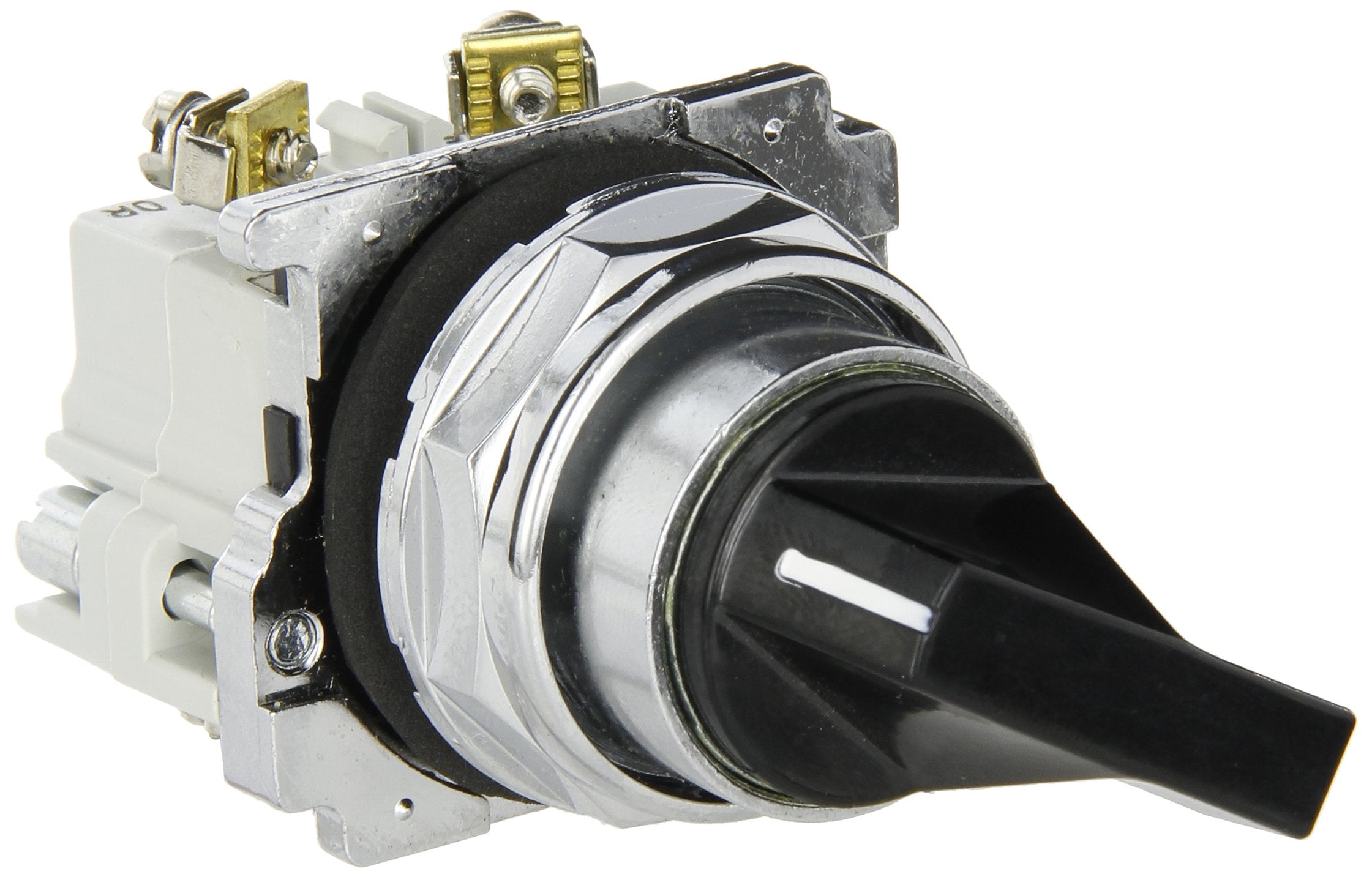

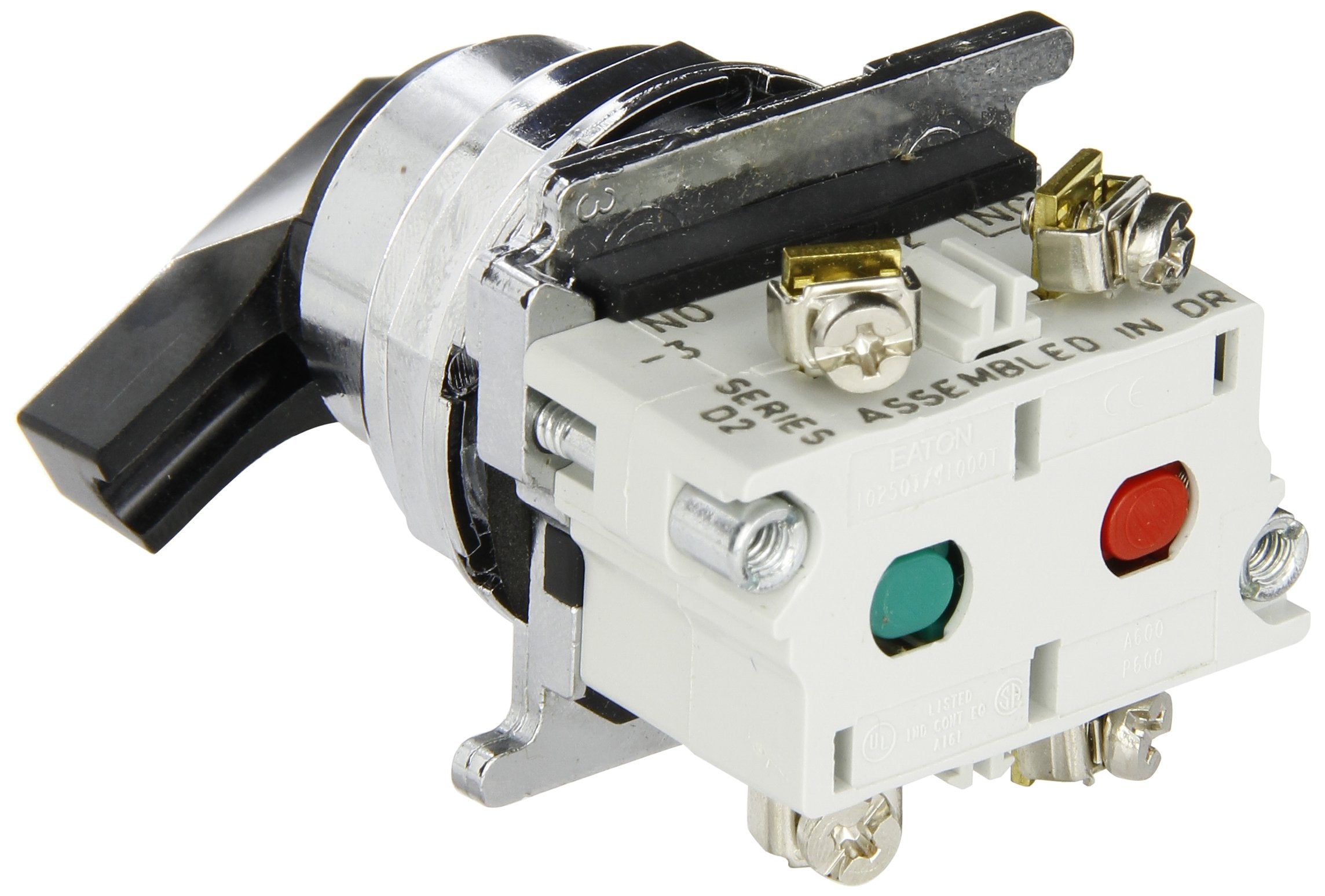

Eaton 10250T20LB Electrical 30.5 mm 600 VAC 1no 1nc 2-position Maintained Knob Lever Non-Illuminated Selector Switch

Product Description

The Eaton 10250T20LB is a 30.5 mm heavy-duty selector switch with a maintained knob lever. This non-illuminated, two-position switch features a 1NO-1NC contact configuration and is suitable for electrical assemblies and panels. It is designed with a heavy-duty zinc die-cast construction for enhanced durability.

• Heavy-Duty construction
• Non-illuminated
• Two-position
• 1NO-1NC contact configuration

Product Highlights

This Eaton selector switch ensures reliable contact even in harsh conditions, thanks to its reliability nibs and drainage holes.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T20LB
• Country of Origin: Dominican Republic

Technical Specifications

• Size: 30.5 mm
• Type: Selector Switch
• Brand: Eaton
• Height: 2.1 Inch
• Length: 3.5 Inch
• Actuator: Lever
• Duty Rating: Heavy Duty
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
• Number of Positions: 2
• Contact Configuration: 1NO-1NC
• Catalog Number: 10250T20LB
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Standard: CSA Certified,UL Listed,CE Marked
• UPC: 782113357355
• GTIN: 00782113357355
• Contact Mode: Maintained
• Contact Rating: 10 A at 600 VAC 50/60 Hz
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Material: Die Cast Zinc
• Series: 10250T
• Throw: 60 deg
• Voltage: 600 VAC
• Positions: 2-Position
• Illumination: Non-Illuminated
• NEMA Rating: 3, 3R, 4, 4X, 12, 13
• Product Type: ELECTRONIC_SWITCH
• Product Group: BISS
• Number of Items: 1.0
• Enclosure: NEMA 3/3R/4/4X/12/13
• Standards/Approvals: CE Marked|Class I Div 1 Group A, B, C, D|Class II/Class III|CSA Certified|CSA File No. LR13046|UL File No. E122485|UL Listed
• Product Length/Depth: 3.5 in
• Product Width: 2.5 in
• Compliances: CE Marked
• Certifications: CSA Certified, UL Listed
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Throw type: 60 °
• Operation Type: Maintained
