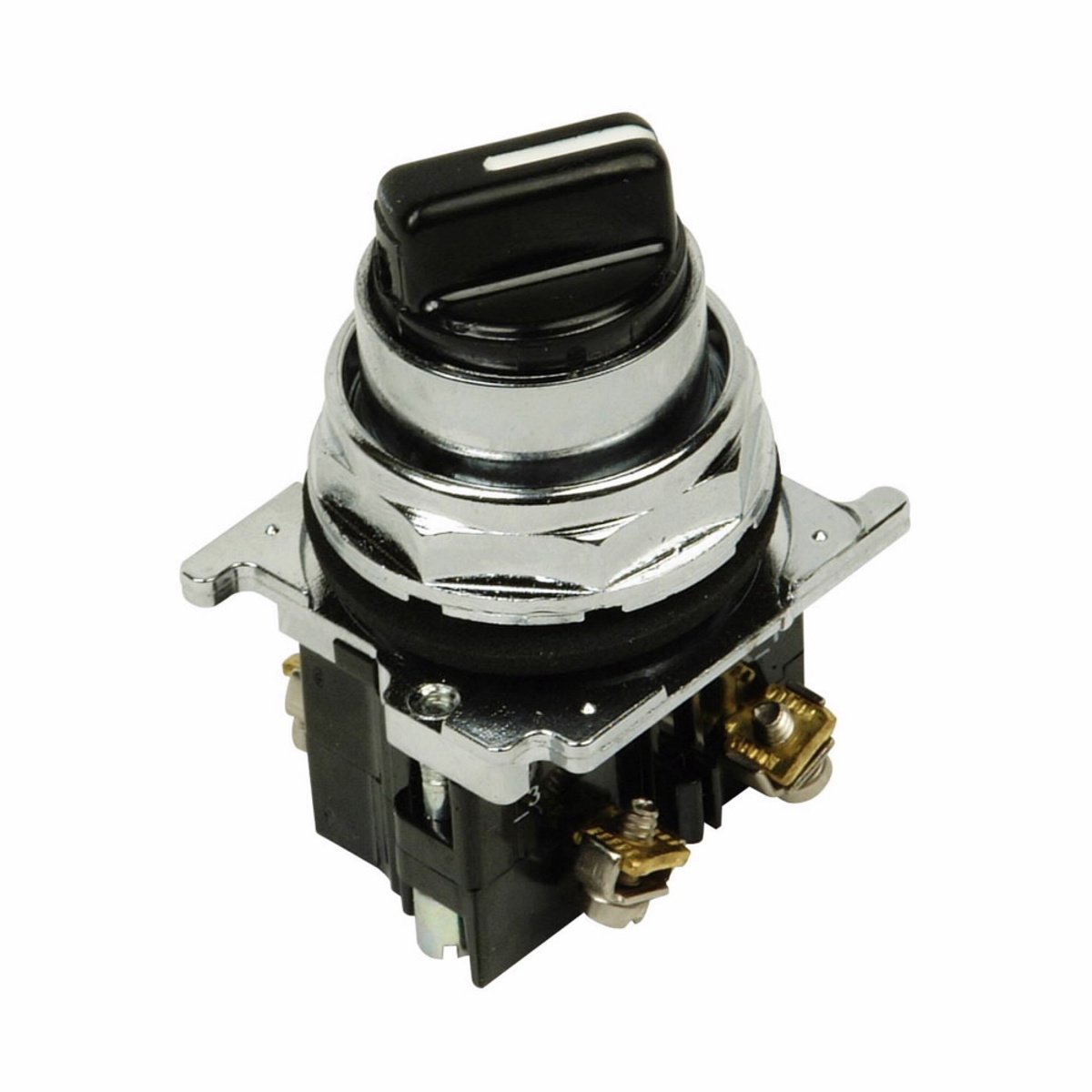

EATON 10250T20KB Selector Switch 30.5 mm Non-Irradiated 1NC-1NO

Product Description

The EATON 10250T20KB is a selector switch designed for heavy-duty applications. This non-illuminated selector switch features a robust zinc die-cast construction, which ensures durability and reliability in various conditions.

• 30.5 mm size with knob actuator
• Rated for 10 Amps at 600 VAC and 5 Amps at 250 VDC
• NEMA 3/3R/4/4X/12/13/IP65 enclosure for protection against dust and water

Product Highlights

This selector switch is ideal for industrial applications requiring reliable switching and durability. The maintained contact mode makes it suitable for various electrical assemblies and control panels.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: 10250T20KB

Technical Specifications

• Size: 30.5 mm
• Contact Configuration: 1 NC - 1 NO
• Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Number of Positions: 2
• Throw: Left to Right
• Actuator: Knob
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Material: Die Cast Zinc
• Legend Color: Black
