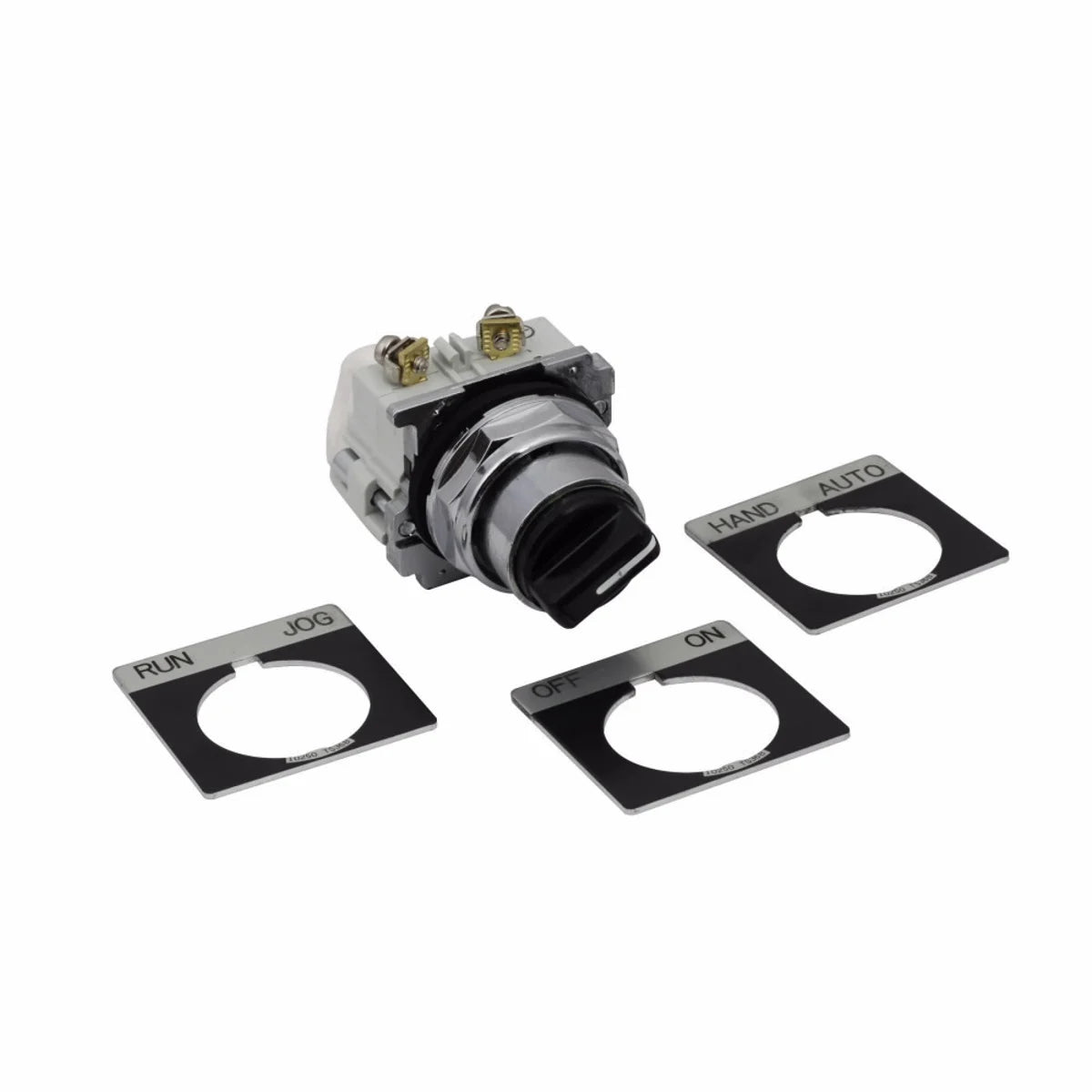

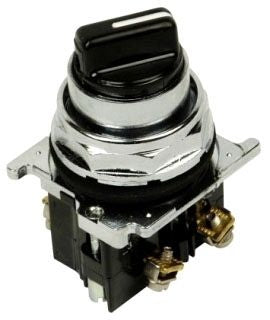

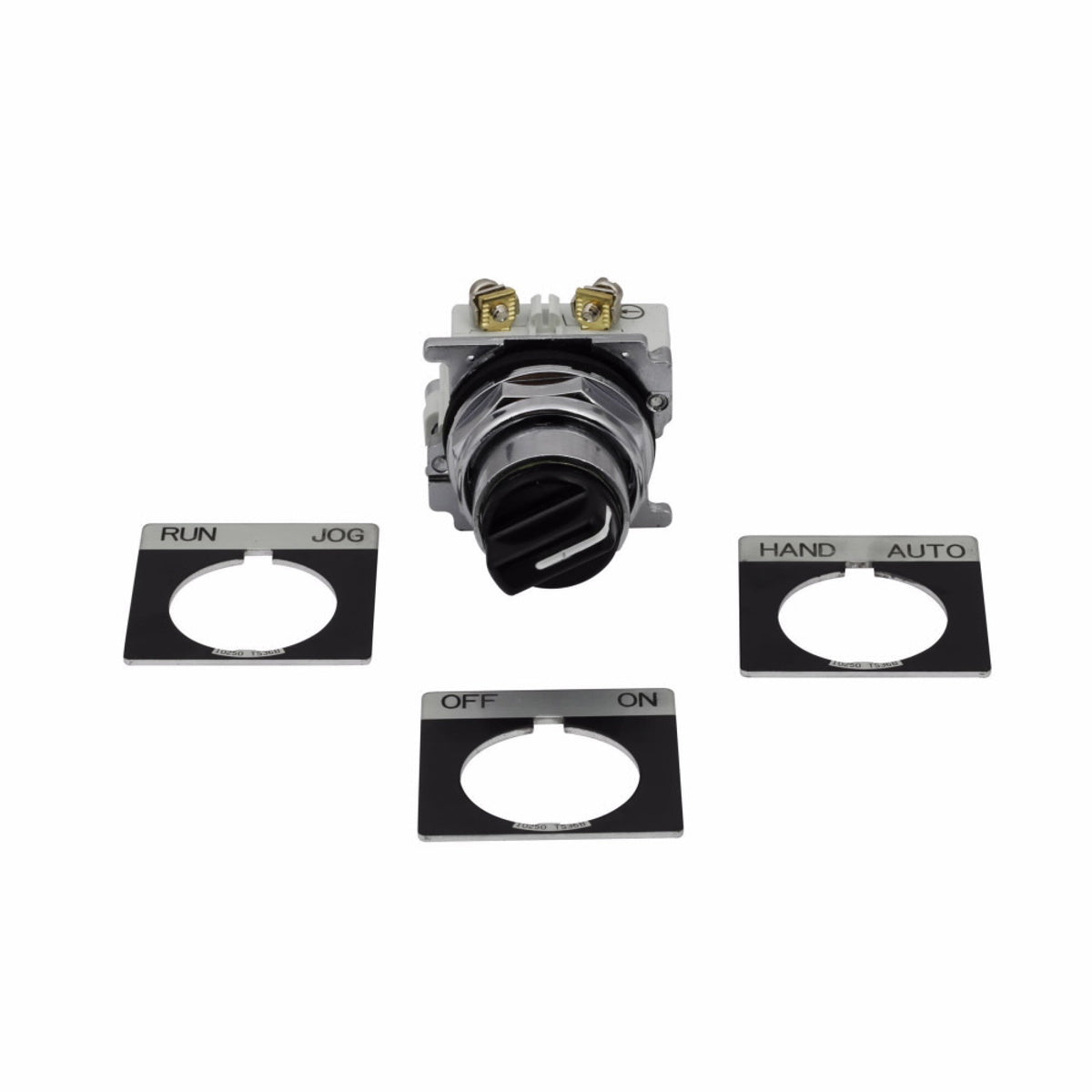

Eaton 10250T20KB-POP Non-Illuminated Selector Switch 30.5mm 2 Position

Product Description

The Eaton 10250T20KB-POP is a non-illuminated selector switch designed for heavy-duty applications. This 30.5 mm switch features a maintained contact configuration with one normally open and one normally closed contact. It is suitable for environments requiring a high level of protection against dust and moisture.

• Heavy duty zinc die-cast construction
• NEMA rated for tough environmental conditions
• IP65 rating for dust and water resistance

Product Highlights

This switch is built to withstand rigorous use while maintaining operational reliability. The zinc enclosure prevents corrosion and wear, making it ideal for industrial settings.

Product Information

Standard Information

• Brand: Eaton
• MPN: 10250T20KB-POP

Technical Specifications

• Contact Configuration: 1NO-1NC
• Number of Positions: 2
• Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Actuator Type: Knob
• Length: 7 inches
• Width: 6 inches
• Height: 3 inches
• Weight: 0.43 lb
• Application: Commercial / Institutional Buildings
