Eaton 10250t203n Indicating Light 30.5 Mm Incandescent

Product Description

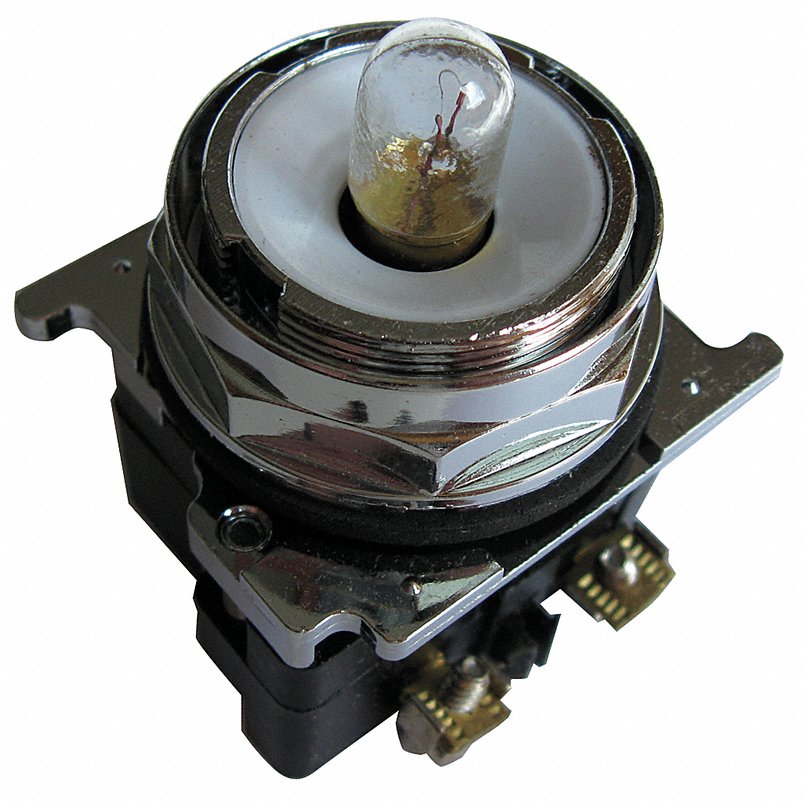

The EATON 10250t203n is a heavy-duty watertight and oiltight indicating light from the 10250T series, designed for demanding industrial panel applications. It uses a full-voltage incandescent light unit rated at 6 volts AC/DC and mounts in a standard 30.5 mm panel cutout. The unit ships without a lens included, giving installers the flexibility to select the appropriate lens color for their application. Rated to NEMA 3, 3R, 4, 4X, 12, and 13 standards, it is built to handle wet, dusty, and corrosive environments. Electricians and panel builders install this indicator light in control stations, machine panels, and enclosures where environmental sealing is required.

The 10250t203n is suited for use in both industrial and commercial control panel installations where a reliable pilot light with a standard actuator configuration is needed. Its NEMA 4X rating makes it appropriate for washdown environments, outdoor installations, and locations exposed to coolants or oils. The 30.5 mm mounting format is widely used across industrial control stations, making this a common replacement or new-installation choice for electricians working on motor control centers, machine tools, and process control enclosures.

Key Features

• Full-voltage incandescent light unit rated at 6 volts AC/DC
• 30.5 mm heavy-duty watertight and oiltight construction
• NEMA 3, 3R, 4, 4X, 12, and 13 rated for harsh environment use
• Standard actuator style for straightforward panel integration
• No lens included, allowing field selection of lens color
• UL Listed and CSA Certified; CE Marked

Compatibility

Designed as an OEM-style indicating light for use with 30.5 mm industrial control panel stations in the EATON 10250T series product family.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before installing or servicing the light unit. Verify the panel cutout diameter matches the 30.5 mm mounting requirement before mounting. Select and install an appropriate lens separately, as none is included with this unit.

Technical Specifications

• Series: 10250T
• Light Unit Type: Incandescent, Full Voltage
• Light Unit Voltage: 6 volts AC/DC
• Mounting Size: 30.5 mm
• Actuator: Standard
• NEMA Rating: 3, 3R, 4, 4X, 12, 13
• Lens: Not included
• Product Length/Depth: 2.4 inches
• Product Height: 2.9 inches
• Product Width: 2.1 inches
• Product Weight: 0.2 pounds
• Certifications: UL Listed, CSA Certified, CE Marked
• Warranty: 1 year

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250t203n
