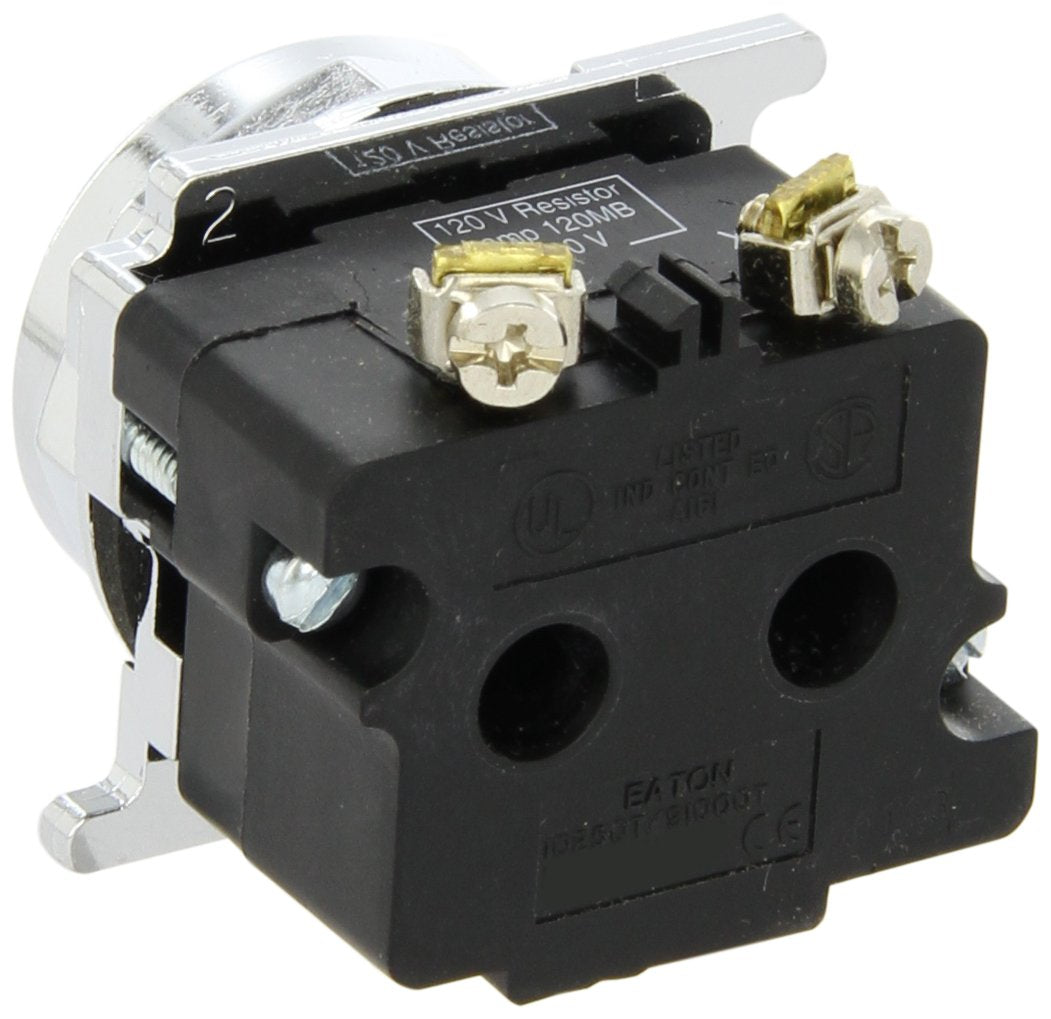

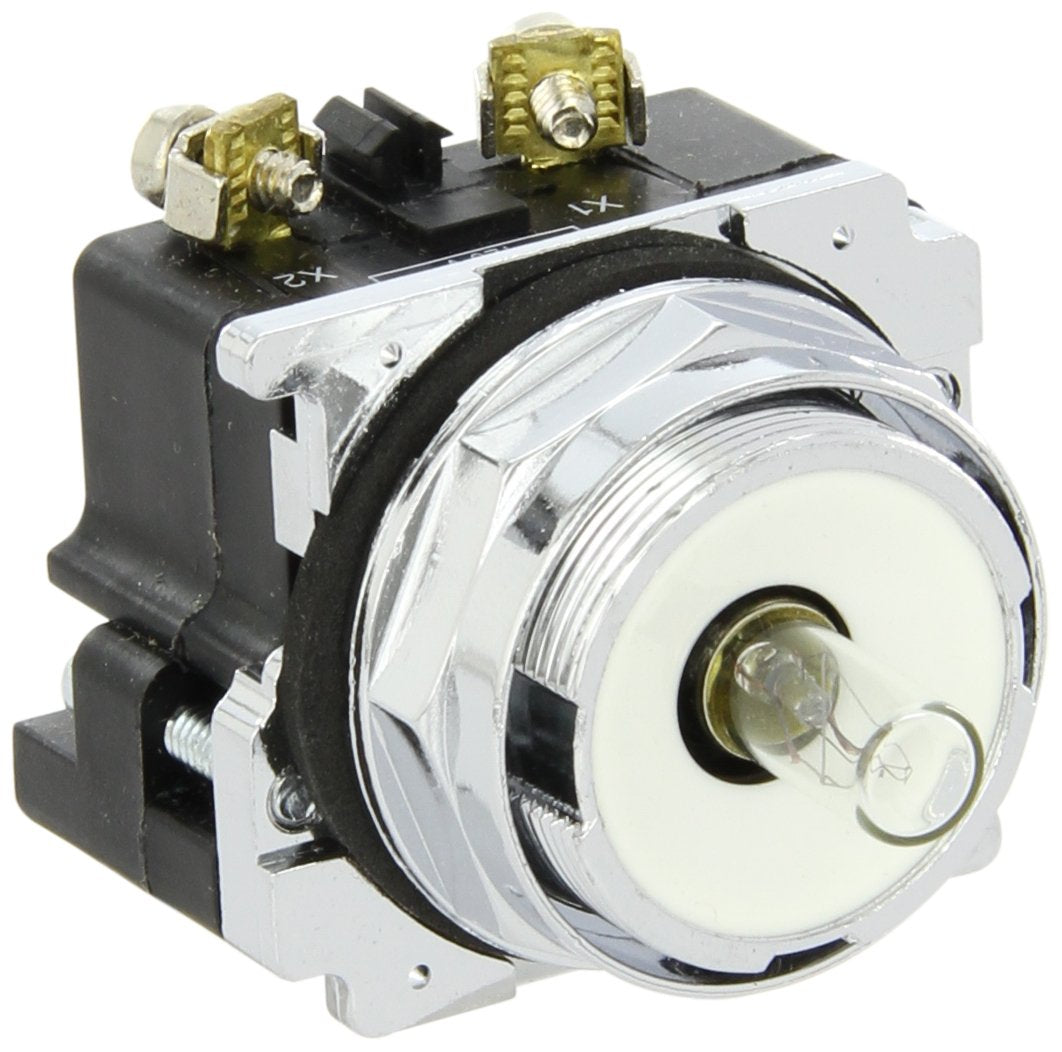

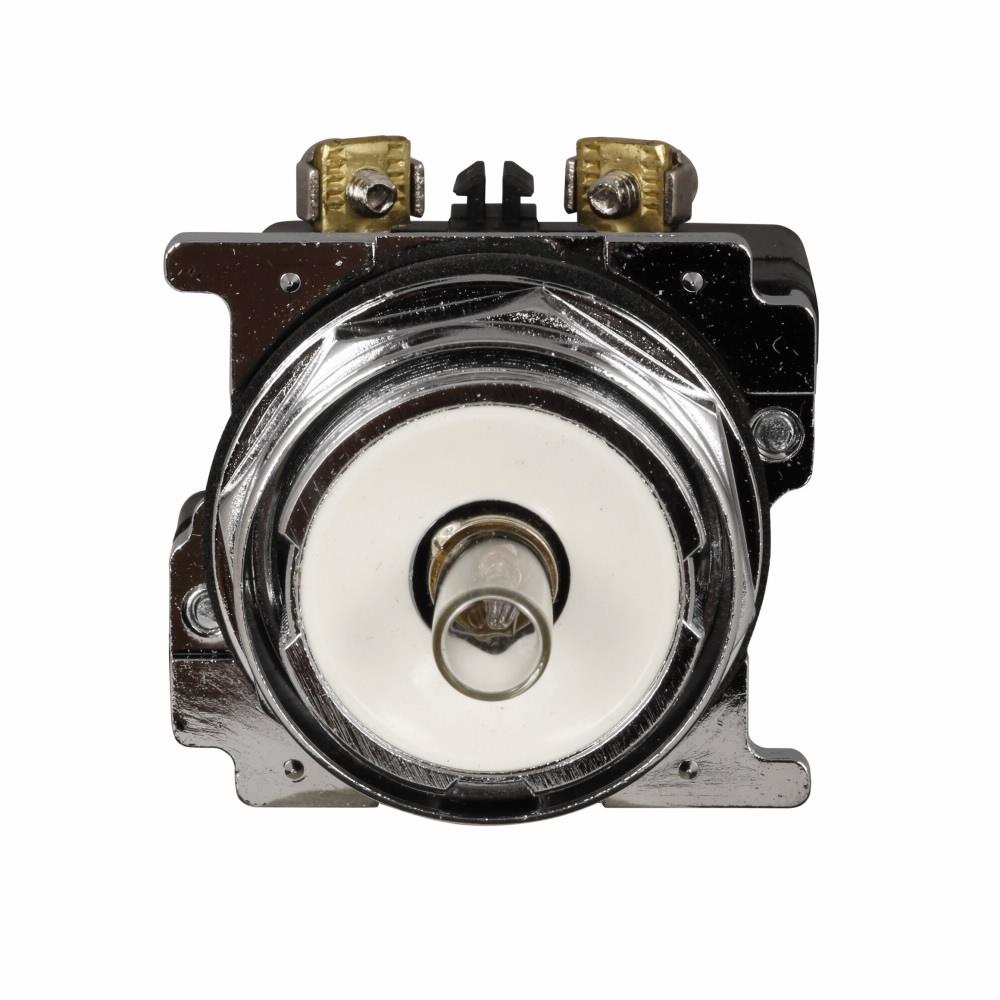

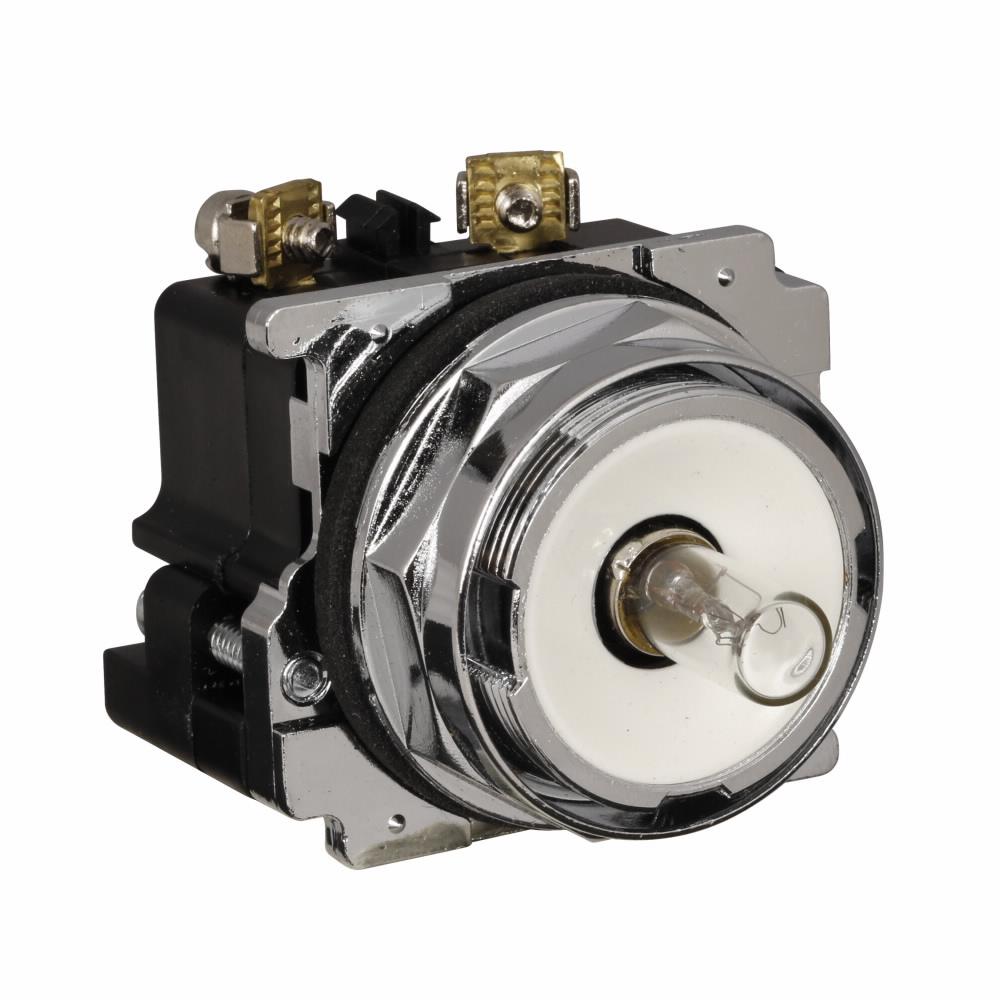

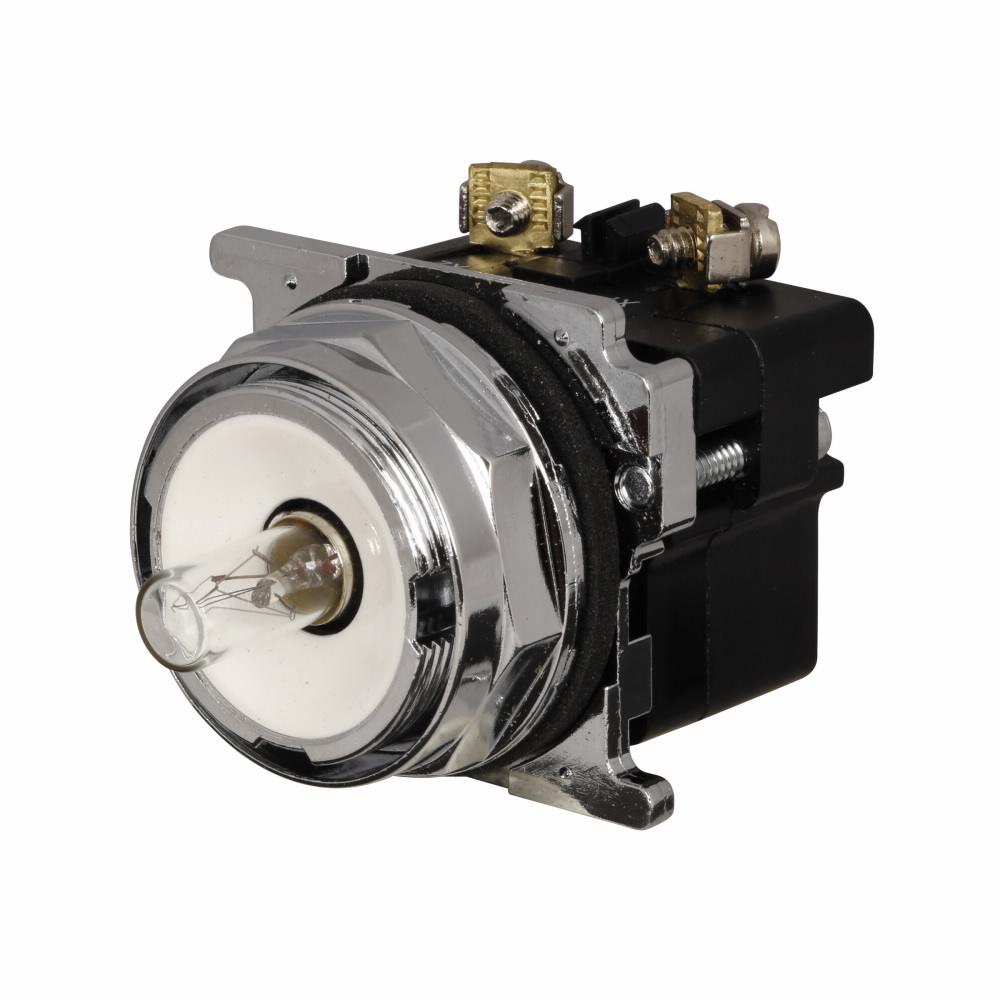

Eaton 10250T201N Indicating Light 120 VAC/VDC 30.5 mm

Product Description

The EATON 10250T201N is part of the 10250T line of 30.5 mm pushbuttons, featuring heavy-duty die-cast zinc construction. Reliability nibs improve contact reliability, even under dry circuit and fine dust conditions. Drainage holes prevent liquid build-up inside the operator, preventing operation issues in freezing environments. It is a heavy duty oiltight watertight standard actuator indicating light.

• Contact blocks feature enclosed silver contacts with pointed reliability nibs.
• Nibs bite through oxide, eliminating the need for expensive logic level blocks for most applications.
• Features a 120MB lamp number.

Product Highlights

This EATON indicating light has a polished chrome/die cast zinc bezel/housing and is suitable for automation and logic control equipment applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T201N
• Country of Origin: DOM

Technical Specifications

• Bezel/Housing: Polished Chrome/Die Cast Zinc
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Environmental Conditions: 1 to 150 deg F Operating
• Lamp Type: Incandescent
• Series: 10250T
• Shape: Round
• Size: 30.5 mm
• Terminal Type: Screw
• Type: Heavy Duty Oiltight Watertight Standard Actuator
• Voltage Rating: 120 VAC/VDC
• Manufacturer: Eaton Cutler-Hammer
• Model / MPN: CH10250T201N
• Brand: Eaton
• Manufacturer Part Number: 10250T201N
• Application: Automation and Logic Control Equipment Applications
• Standards/Approvals: BAA Compliant|CE Certified|UL 508|CSA Certified|Lloyd's Register Certified|IEC 947-5-1|MTTA Certified
• Product Length/Depth: 2.4 in
• Product Height: 3.2 in
• Product Width: 2.1 in
• Compliances: CE Marked
• Certifications: UL Listed
• CSA Certified: CSA Certified
• Product Type: Pushbutton
• Light unit type: Incandescent, resistor
• Light unit voltage: 120 Vac/dc
• Actuator: Standard
• Style: 30.5 mm
• Rating: NEMA 3, 3R, 4, 4X, 12, 13
• UPC: 782113148229
