Eaton 10250T1P Ch 30Mm Cont Blk 1No-1Nc Shrd

Product Description

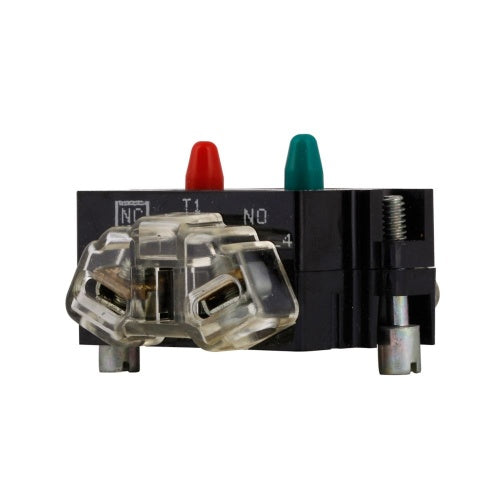

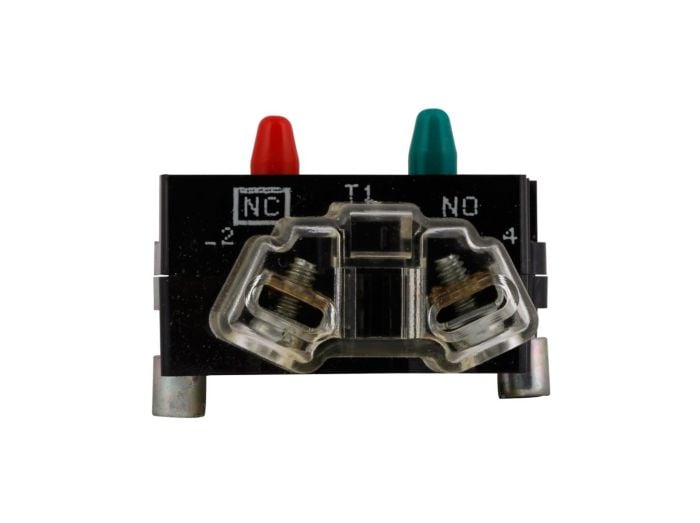

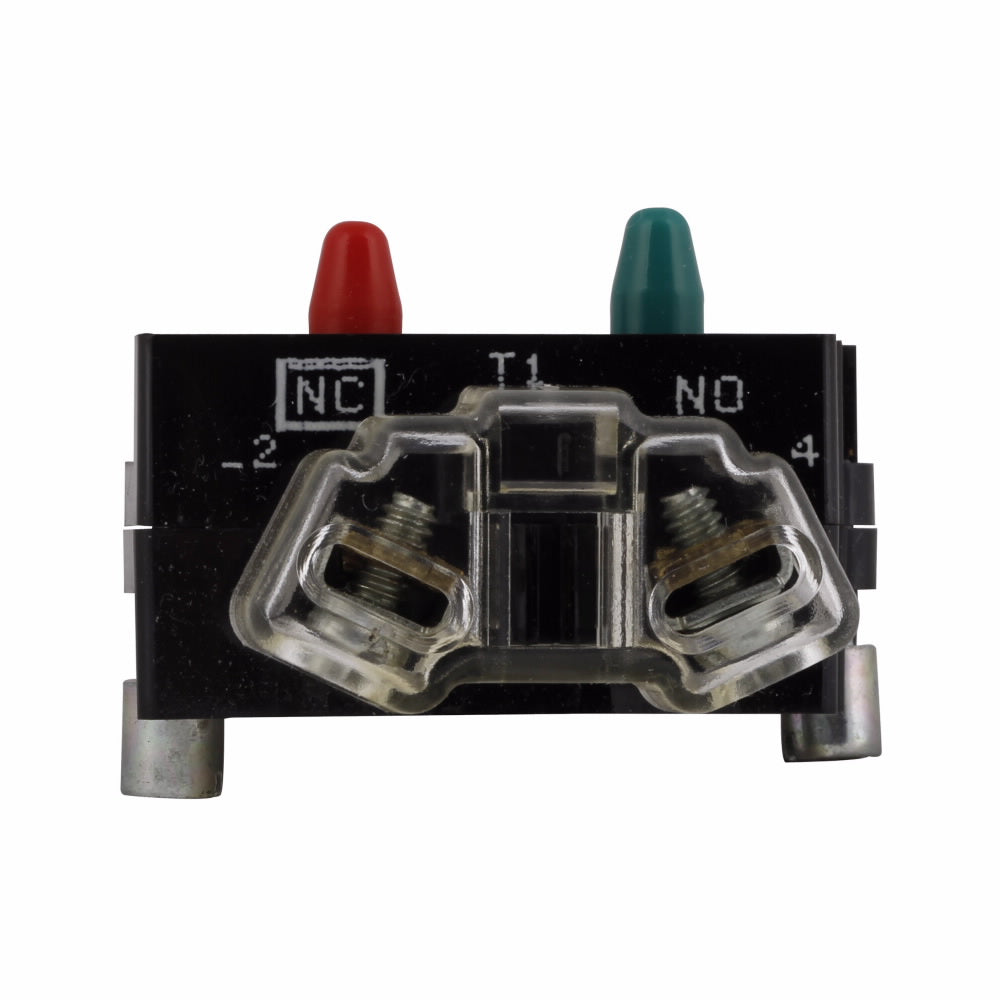

The EATON 10250T1P is a heavy-duty standard contact block from the 10250T series, designed for automation and logic control equipment. It features a 1NC-1NO contact configuration with silver contacts, housed in a thermoplastic block. This contact block is compatible with pushbutton operators and has a 30.5 mm size. It is constructed from die-cast zinc and has pressure terminals.

• Stack up to 6-blocks (12-circuits) unless otherwise noted
• Features a zinc die cast construction with chrome plated housing and mounting nut
• NEMA 1/2/3/3R/4/4X/12/13; IP65

Product Highlights

The EATON 10250T1P contact block offers a reliable solution for industrial applications, with a robust design and easy assembly.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T1P
• Country of Origin: United States

Technical Specifications

• Application: For automation and logic control equipment applications
• Block Material: Thermoplastic
• Color: Black
• Contact Configuration: 1NC-1NO
• Contact Material: Silver
• Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Enclosure: IP65
• Manufacturer Part Number: 10250T1P
• Material: Die-Cast Zinc
• Mounting Type: 6-Stack
• NEMA Rating: NEMA 1/2/3/3R/4/4X/12/13
• Series: 10250T
• Size: 30.5 mm
• Standards/Approvals: UL Listed|CSA Certified|CE Marked
• Terminal Type: Pressure
• Type: Heavy Duty Standard
• Product Name: Eaton 10250T pushbutton contact block
• UPC: 782114121344
• Product Length/Depth: 1.9 in
• Product Height: 2 in
• Product Width: 1.2 in
• Product Weight: 0.5 lb
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Stack up to 6 blocks (12 circuits) unless otherwise noted
• Product Type: Pushbutton accessory
• Contact configuration: 1 NO-1 NC (standard)
• Terminals: Pressure
• Manufacturer: Eaton
• Product Series: 10250T
• Family Series: Eaton Switches, 10250T Series
• Description: Eaton 10250T pushbutton contact block, 10250T series, Standard Contact Block, 1NO-1NC, Pressure terminal
• Comments: 1NO-1NC, Pressure Terminal
• Net Weight: 0.5 lbs
• Gross Weight: 0.5 lbs
• UNSPSC Code: 39120000
• Brand: Eaton - Cutler Hammer
• (Switching-Indication) Size: 30.5 mm
