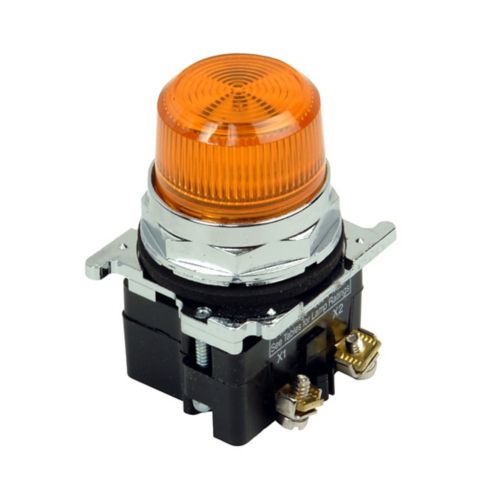

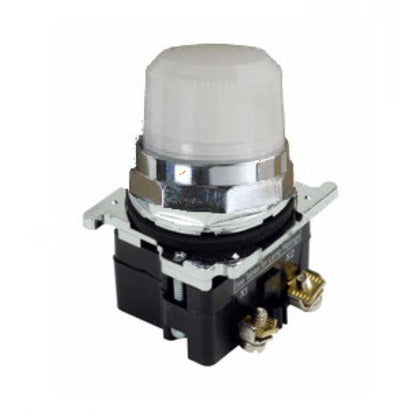

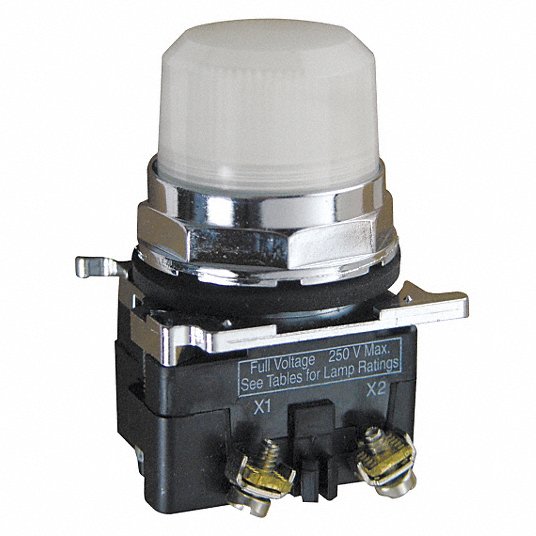

Eaton 10250T197LWP2A Indicating Light 120V

Product Description

The EATON 10250T197LWP2A indicating light is part of the 10250T line of 30.5 mm pushbuttons featuring heavy-duty zinc die-cast construction. It features a standard actuator, LED lamp, and a plastic lens. Designed for durability, it includes drainage holes to prevent liquid build-up and reliability nibs for improved contact in harsh conditions.

• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes
• Grounding nibs on the operator casing

Product Highlights

This EATON indicating light is ideal for industrial applications requiring robust and reliable visual signaling.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T197LWP2A
• Country of Origin: USA (subject to change)

Technical Specifications

• Type: Full Voltage Heavy Duty Oiltight Watertight Standard Actuator
• Light unit type: LED, full voltage
• Lens material: Plastic
• Light unit voltage: 120 Vac
• Series: 10250T
• Actuator: Standard
• Lens Color: White
• Rating: NEMA 3
• Voltage Rating: 120 VAC
• Lamp Type: LED
• Bezel/Housing: Die Cast Zinc
• Size: 30.5 mm
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• Brand: Eaton
• MPN: 10250T197LWP2A
• Condition: New
• Body Finish: Chrome Plated
• Body Material: Metal
• IP Rating: IP65
• Includes Lamp Module: Lamp Module Included
• Includes Lens: Lens Included
• Includes Push-To-Test: No Push-To-Test Included
• Lamp Bulb Color: Blue
• Lamp Module Type: Full
• Max Lamp Bulb Voltage: 120 V AC
• Max Voltage Rating (Supply): 120 V AC
• NEMA Enclosure Rating: 3; 3R; 4; 4X; 12; 13
• Overall Depth: 3.5 in
• Overall Height: 2 in
• Overall Width: 2 in
• Panel Mounting Hole Diameter: 30 mm
• Resistance Properties: Oil and Grease Resistant; Watertight
• Standards: CE; CSA; UL Listed
• Terminal Connection: Saddle Clamp
• UNSPSC: 39121534
• Volts AC Control: 120
• Material: Plastic
• Application: For slow make and break contact operation
