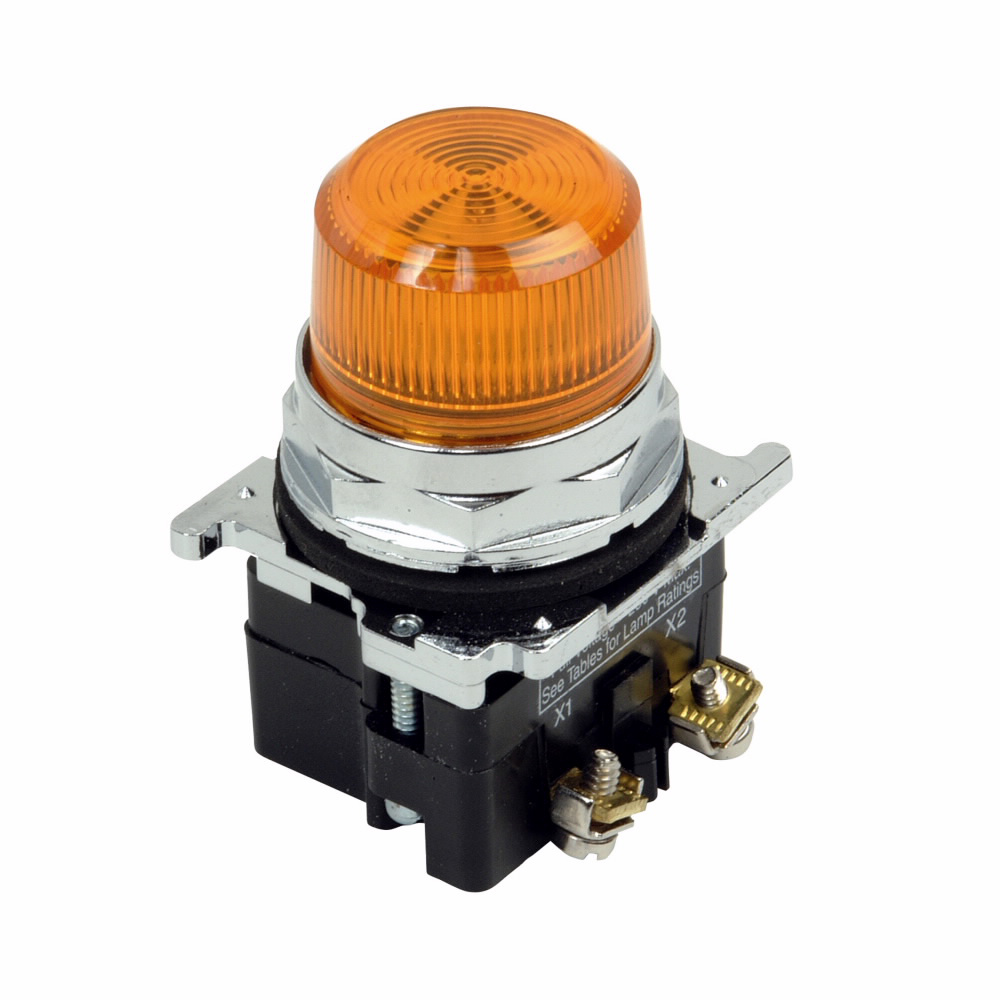

Eaton 10250T197LRP24 10250T Full Voltage Heavy Duty Oiltight Watertight Standard Actuator Indicating Light 24 Vac/dc

Product Description

The Eaton 10250T197LRP24 is a heavy-duty pushbutton designed for demanding environments. This pushbutton operates on 24 VAC/VDC and features a robust construction suited for watertight and oiltight applications. The standard actuator makes it easy to use while the integrated LED lamp provides a reliable indication of operation. With a lens color of red and a size of thirty point five millimeters, this product meets NEMA ratings of 3, 3R, 4, 4X, 12, and 13 for versatile mounting options.

• 24 VAC/VDC operation
• LED indicator for visual status
• Heavy-duty and durable design

Product Highlights

This product is ideal for electrical assemblies, panels, and OEM applications. It can remain operational in various environmental conditions.

Product Information

Standard Information

• Catalog Number: 10250T197LRP24
• Brand: Eaton

Technical Specifications

• Voltage Rating: 24 VAC/VDC
• Type: Full Voltage Heavy Duty Oiltight Watertight Standard Actuator
• Lens Color: Red
• Lens Material: Plastic
• Enclosure Rating: NEMA 3, 3R, 4, 4X, 12, 13
• Average Life: 60000 to 100000 hours
• Amperage Rating: 0.5 A
• Mounting Type: Panel
