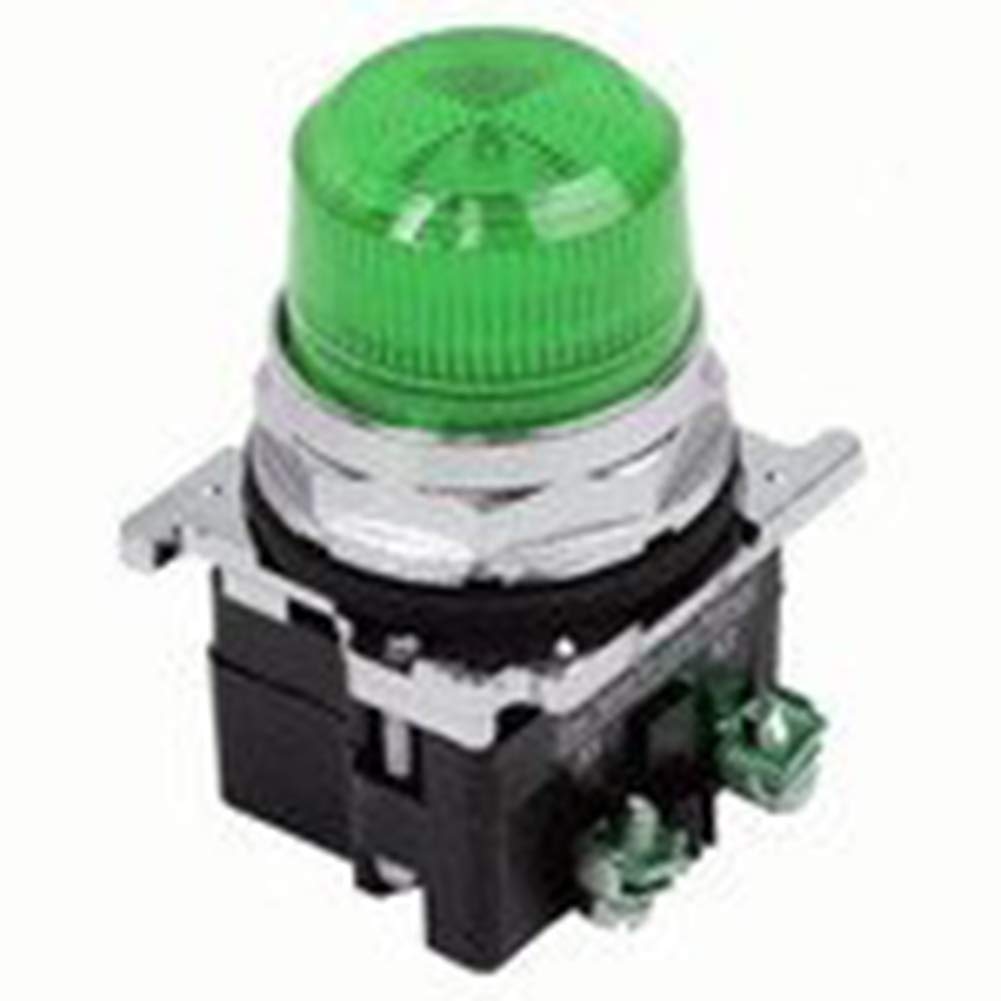

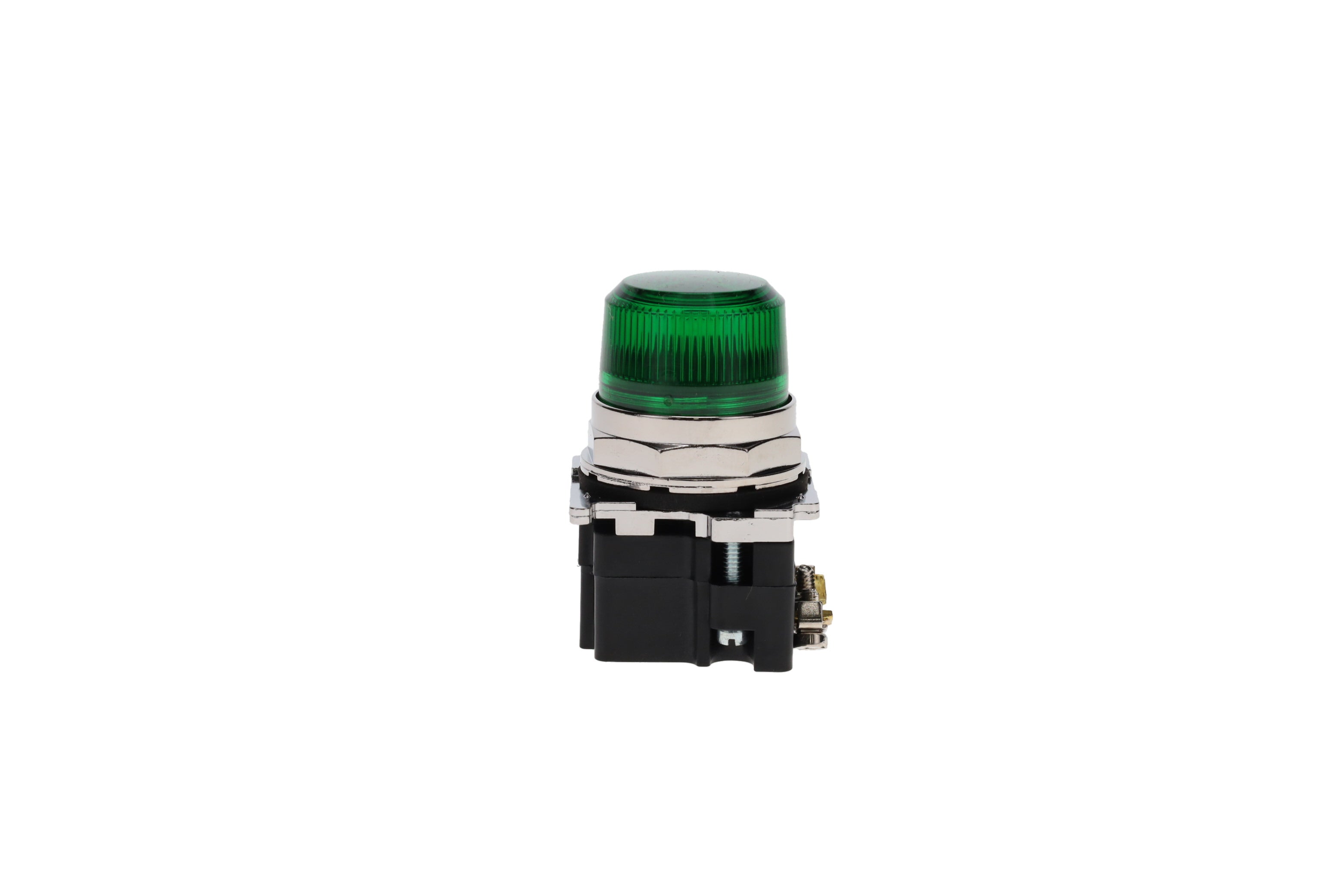

Eaton 10250T197LGP2A Pilot Light 120VAC

Product Description

The Eaton 10250T197LGP2A pilot light operates at 120VAC. This 30.5mm pilot light features heavy-duty zinc die cast construction and reliability nibs to improve contact reliability, even under dry circuit and fine dust conditions. Drainage holes prevent liquid buildup inside the operator, preventing operation in freezing environments.

• Heavy-duty zinc die cast construction
• Reliability nibs improve contact reliability
• Drainage holes prevent liquid buildup

Product Highlights

The Eaton 10250T197LGP2A pilot light is a reliable and durable indicating solution for industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T197LGP2A
• Country of Origin: Dominican Republic

Technical Specifications

• Voltage: 120V AC
• Part #: 10250T197LGP2A
• Category: Pilot Light
• Size: 30.5mm
• Lens Style/Size: Standard
• Lens Material: Plastic
• Bezel: Round Metal, Chrome
• Terminals: Standard Screw
• Enclosure Rating: NEMA 3, 3R, 4, 4X, 12, 13, IEC IP65
• Type: Indicating Light
• NEMA: 4,4X,13
• Lamp Type: LED
• Power Source: Full Voltage
• Average Life: 60000 to 100000 hr
• Base Type: Bayonet
• Bezel/Housing: Polished Chrome
• Environmental Conditions: 1 to 150 deg F Operating, 95% Relative Humidity at 60 deg C
• Series: 10250T
• Shape: Round
• Terminal Type: Pressure Plate
• Voltage Rating: 120 VAC
• Amperage Rating: 0.5 A
• Lens Type: Fresnel
• Mounting Type: Panel
• Certifications: CSA Certified
• Compliances: CE Marked
• Actuator: Standard
• Light unit type: LED, full voltage
• Light unit voltage: 120 Vac
• Rating: NEMA 4X
• Style: 30.5 mm
• Volts AC Control: 120
• IP/NEMA Rating: 4X, 13, 3, 4, 12, 3R
• Mounting: 30.500 mm
• Package Quantity: 1
• Product Height: 3.2 in
• Product Length/Depth: 0.24 in
• Product Width: 2.1 in
