Eaton 10250T185N Pushbutton 600V

Product Description

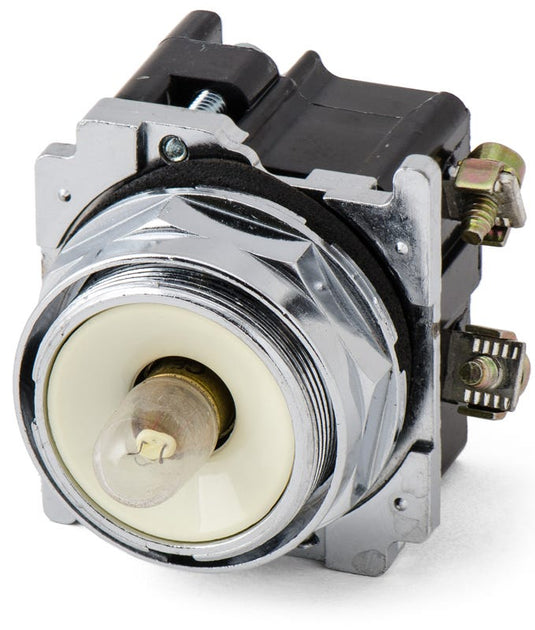

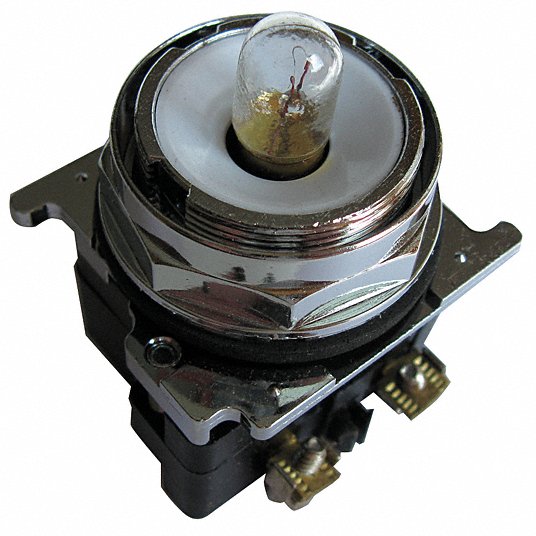

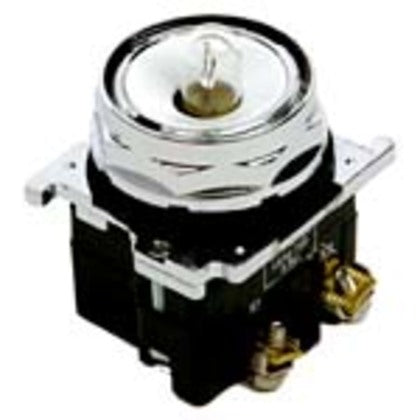

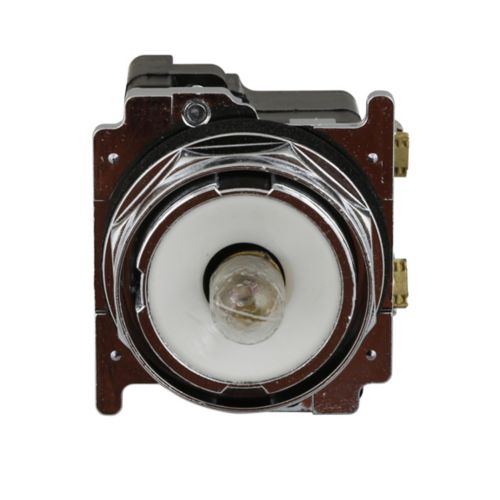

The Eaton 10250T185N is a heavy-duty watertight and oiltight pushbutton indicating light with a standard actuator. It features an incandescent transformer and is rated for NEMA 3, 3R, 4, 4X, 12, and 13 environments. This pilot light has a panel mounting size of 30.5 mm and a voltage rating of 600VAC.

• Heavy-duty watertight and oiltight construction
• Standard actuator
• Incandescent lighting with transformer

Product Highlights

The Eaton 10250T185N is ideal for use in heavy-duty industrial applications requiring a robust and reliable indicating light.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T185N
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T185N
• UPC: 782113148205
• Product Length/Depth: 2.4 in
• Product Height: 3.1 in
• Product Width: 2.1 in
• Product Type: Pushbutton
• Type: Incandescent, Pilot Light
• Light unit type: Incandescent, transformer
• Light unit voltage: 600 Vac
• Series: 10250T Series
• Actuator: Standard
• Style: 30.5 mm
• Rating: NEMA 3R NEMA 13 NEMA 3 NEMA 4 NEMA 4X NEMA 12
• Brand: Eaton/Cutler-Hammer
• Voltage: 600VAC
• Mounting Type: Panel
• Approval: CE, UL, CSA
• Terminal Connection: Saddle Clamp
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Length (in): 2.4
• Width (in): 2.1
• Height (in): 3.1
• Duty Rating: Heavy Duty
• Actuator Type: Standard
• Body Material: Metal
• Mpn: 10250T185N
• Upc: 782113148205
• Gtin: 782113148205
• Body Finish: Chrome Plated
• IP Rating: IP65
• Includes Lamp Module: Lamp Module Included
• Includes Lens: No Lens Included
• Includes Push-To-Test: No Push-To-Test Included
• Lamp Bulb Color: Clear
• Lamp Bulb Type: Incandescent
• Lamp Module Type: Transformer
• Lens Color: No Lens
• Lens Material: No Lens
• Lens Type: No Lens
• Max Lamp Bulb Voltage: 600 V AC
• Max Voltage Rating (Supply): 600 V AC
• NEMA Enclosure Rating: 3; 3R; 4; 4X; 12; 13
• Overall Depth: 2.4 in
• Overall Height: 3.1 in
• Overall Width: 2.1 in
• Panel Mounting Hole Diameter: 30 mm
• Resistance Properties: Oil and Grease Resistant; Watertight
• Standards: CE; CSA; UL Listed
• UNSPSC: 39121534
• Volts AC: 600
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 13, NEMA 3, NEMA 4
• Dimensions: 3.00 in H X 0.30 in W X 2.40 in L
• Manufacturer Part Number: 10250T185N
• Manufacturer: Eaton
