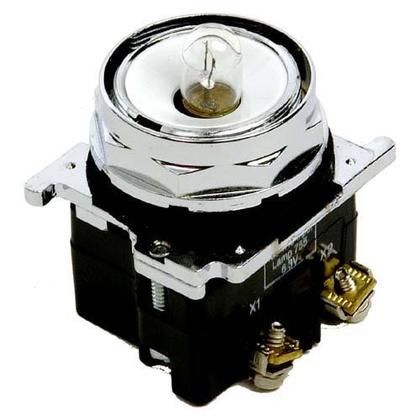

Eaton 10250t182n 30mm Indicator Light 240VAC

Product Description

The EATON 10250t182n is a heavy-duty 30.5 mm watertight and oiltight indicator light designed for industrial and commercial control panel applications. This unit operates on 240 VAC and uses an incandescent transformer light unit configuration. It ships without a lens, giving technicians the flexibility to install the appropriate lens for their specific application. The 10250t182n is built to NEMA 3, 3R, 4, 4X, 12, and 13 ratings, making it suitable for wet, dusty, and corrosive environments. Licensed electricians and industrial controls technicians are the primary installers of this type of pilot device.

This indicator light is intended for use in industrial control panels, machine tool enclosures, and commercial electrical equipment where a reliable visual status indication is required. The 30.5 mm standard operator format fits common cutouts found in heavy-duty control enclosures. Its watertight and oiltight construction makes it well suited for manufacturing floors, outdoor control stations, and processing environments where exposure to liquids, dust, or contaminants is a regular concern.

Key Features

• 30.5 mm standard operator fits common industrial panel cutouts
• 240 VAC incandescent transformer light unit operation
• Heavy-duty watertight and oiltight construction
• NEMA 3, 3R, 4, 4X, 12, and 13 rated for demanding environments
• Ships without lens for application-specific lens selection

Compatibility

Designed as an OEM-style replacement or new-installation pilot light in the EATON 10250T series heavy-duty 30.5 mm indicator light family for industrial and commercial control panel applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before mounting or wiring this indicator light. Verify the supply voltage matches the 240 VAC rating of the unit before energizing. A separate lens must be sourced and installed prior to placing the unit in service if environmental sealing is required.

Technical Specifications

• Operator Size: 30.5 mm
• Voltage: 240 VAC
• Light Type: Incandescent Transformer Light Unit
• Lens: Not included
• Construction: Heavy-Duty Watertight and Oiltight
• NEMA Rating: 3, 3R, 4, 4X, 12, 13

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250t182n
