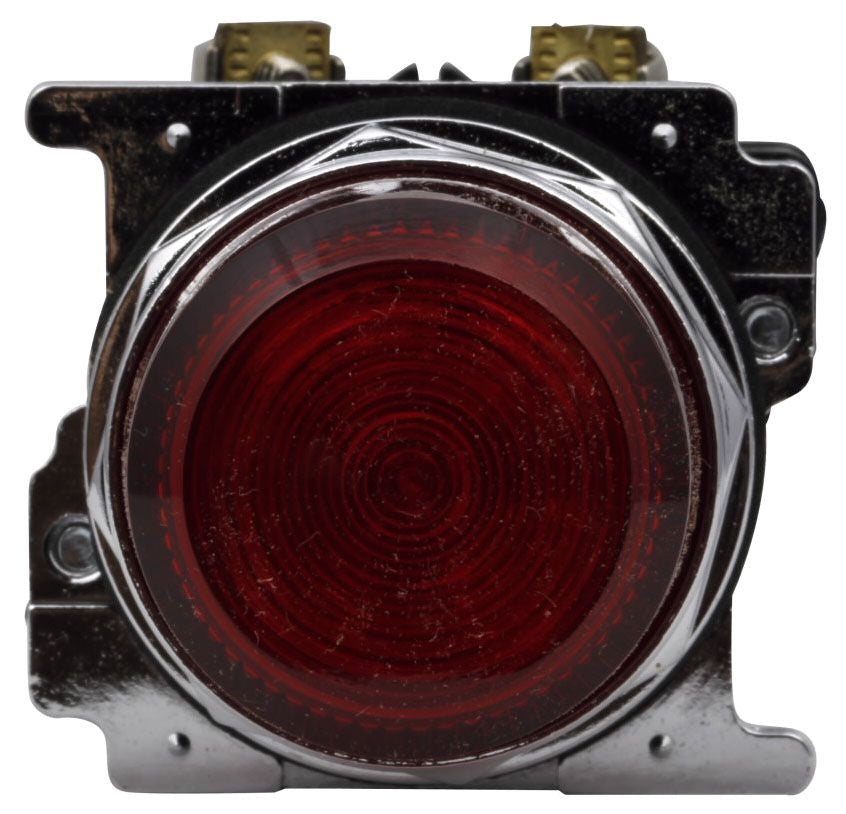

Eaton 10250T181L Standard Type Pilot Light Push Button

Product Description

The EATON 10250T181L is a standard type operator device in the 10250T series of industrial control components. It functions as a pilot light or push button operator designed for use in control panels, machine control stations, and industrial enclosures. Licensed electricians and industrial maintenance technicians install this type of component in motor control circuits, process control panels, and operator interface stations. The compact form factor and standard mounting footprint make it compatible with standard 30mm operator cutouts commonly found in industrial and commercial control applications.

This operator device is suited for industrial and commercial installations where panel-mount control stations are required. Typical applications include motor starters, conveyor controls, pump control panels, and general-purpose machine control enclosures. It is designed for use in environments requiring reliable, rugged push button or pilot light operator hardware meeting standard NEMA panel requirements.

Key Features

• Standard type operator in the EATON 10250T series control device family
• Compact dimensions of 2.000 inches x 2.500 inches x 3.500 inches for panel-mount installation
• Lightweight construction at 0.300 pounds
• Designed for integration into industrial control panels and operator stations
• Standard mounting configuration compatible with common industrial panel cutouts

Compatibility

Designed as an OEM-style operator device for use with industrial control panels and machine control stations requiring standard type 30mm panel-mount operators.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NFPA 70 (NEC) requirements. De-energize and lock out the control panel before installing or servicing any operator device. Ensure the panel cutout dimensions match the operator body before mounting. Follow the manufacturer wiring diagram for proper contact block and legend plate assembly.

Technical Specifications

• Weight: 0.300 pounds
• Length: 2.000 inches
• Width: 2.500 inches
• Height: 3.500 inches
• UPC: 78211455409

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T181L
