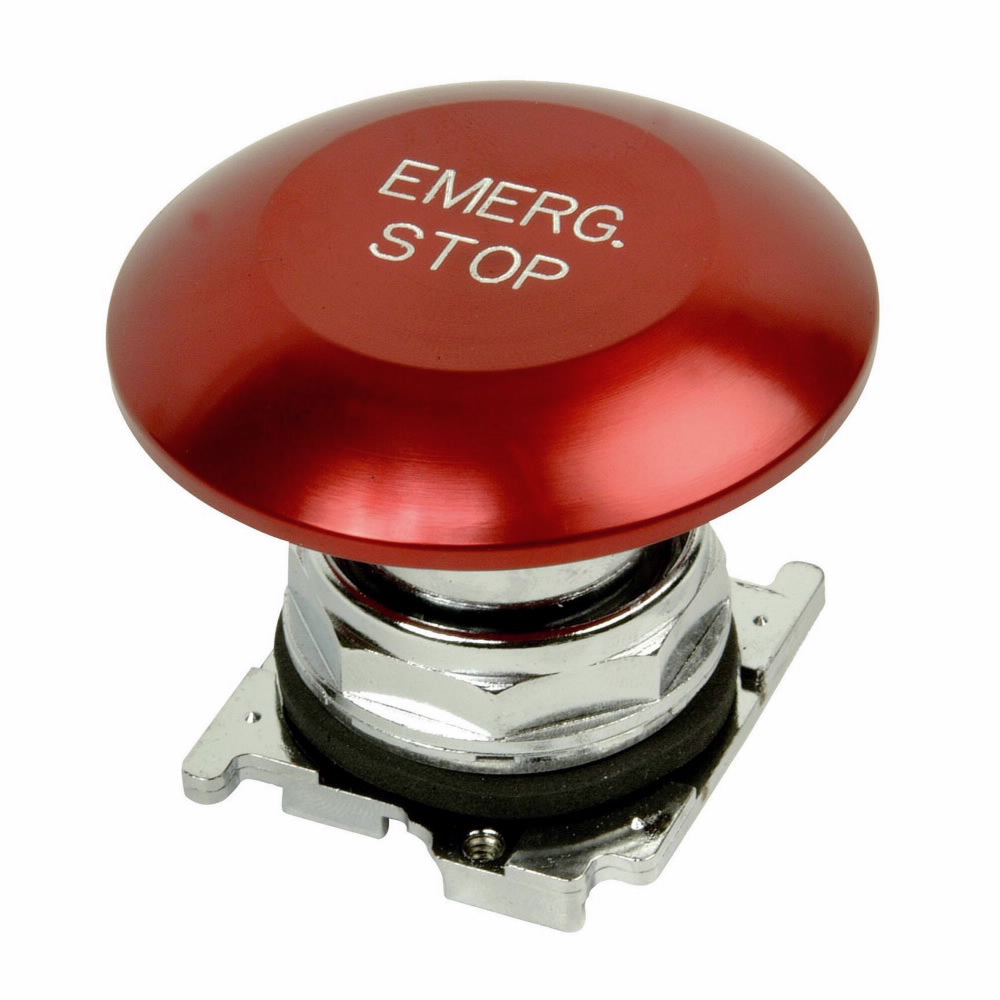

Eaton 10250T17213 CH JMB MSHD PB Emer Stop 65 mm

Product Description

The EATON 10250T17213 is a heavy-duty oil/watertight pushbutton operator from the 10250T series. This 65 mm jumbo mushroom head operator features a 1NO-2NC contact configuration and momentary contact mode. It is constructed from die-cast zinc with a polished chrome bezel and is anodized red.

• Heavy duty die-cast zinc construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes

Product Highlights

This heavy-duty and oil/watertight pushbutton is suitable for stationary machinery, equipment outside factory and other applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T17213
• Country of Origin: China

Technical Specifications

• Application: Stationary Machinery, Equipment Outside Factory and Other Applications
• Bezel Housing: Polished Chrome Bezel
• Color: Red
• Contact Configuration: 1NO-2NC
• Contact Rating: 10 A at 600 VAC/VDC
• Enclosure: NEMA 3/3R/4/4X/12/13/IP65
• Finish: Anodized
• Manufacturer Part Number: 10250T17213
• Material: Die-Cast Zinc
• Series: 10250T
• Size: 65 mm
• Standards/Approvals: ATEX Approved|CE Marking|CSA Certified|EN/IEC 60947|UL Listed
• Temperature Rating: 1 to 150 deg F
• Type: Heavy Duty Oil/Watertight
• Product Length/Depth: 2.4 in
• Product Height: 3.2 in
• Product Width: 2.1 in
• Product Weight: 0.45 lb
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Catalog Notes: Anodized aluminum head is not suitable for use in ultraviolet light applications
• Product Type: Pushbutton
• Actuator color: Red
• Bezel: Chrome
• Bus material: Zinc die cast
• Actuator material: Anodized aluminum
• Actuator: Jumbo mushroom
• Operating mode: Momentary
• Illumination: Non-illuminated
• Field color: Black
• Legend: EMERGENCY STOP
• Rating: NEMA 4X NEMA 4 NEMA 3R NEMA 12 NEMA 3 NEMA 13
• Degree of protection: NEMA 13 NEMA 3R NEMA 12 NEMA 4X NEMA 3 NEMA 4
• Inscription: EMERGENCY STOP
• Contact configuration: 1 NO-1 NC
• Special features: Factory assembled
• Brand: Eaton
• MPN: 10250T17213
• Country of Origin: China
• Condition: New
• Product Diameter: 2.5 in
