Eaton 10250T15235 selector switch 30.5 mm heavy-duty cam 3

Product Description

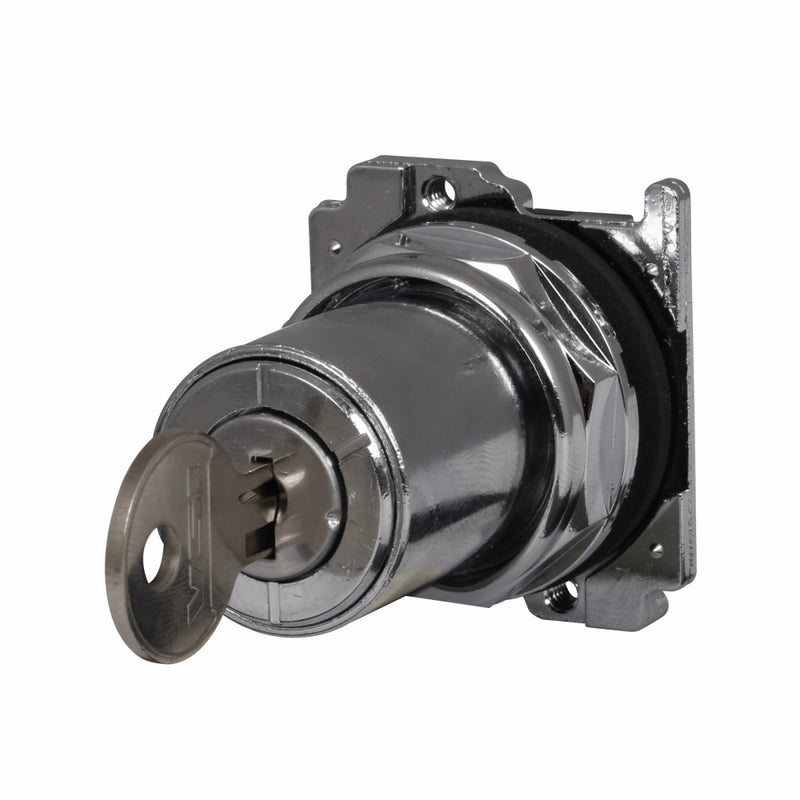

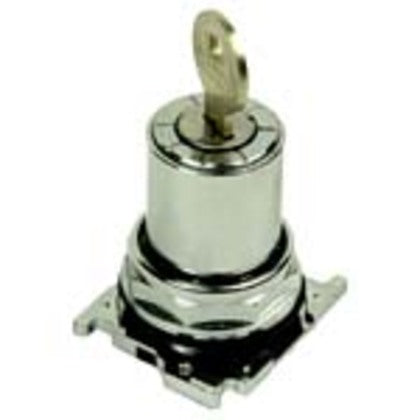

The EATON 10250T15235 is a heavy-duty, key-operated selector switch from the 10250T Series, designed for motor control applications. This selector switch features a 30.5 mm diameter, three-position cam 3 mechanism with a 60° throw. Constructed with a metal housing, it provides non-illuminated operation and is rated for NEMA 3, 3R, 4, 4X, 12, and 13 environments.

• Heavy-duty zinc die cast construction
• Features a 30.5 mm diameter
• Rated for NEMA 3, 3R, 4, 4X, 12, and 13 environments

Product Highlights

The EATON 10250T15235 selector switch is ideal for use with 3-position keylock switches and offers reliable performance in demanding industrial settings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T15235
• Country of Origin: US

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T15235
• UPC: 782113298054
• Product Length/Depth: 2.2 in
• Product Height: 1.9 in
• Product Width: 1.8 in
• Product Weight: 0.4 lb
• Warranty: 1 year
• Compliances: CE Marked
• Certifications: UL Listed, CSA Certified
• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Cam code: Cam 3
• Key removal position: Right and center
• Product Category: Selector switch
• Actuator: Key operated
• Throw type: 60 °
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Illumination: Non-illuminated
• Number of positions: 3
• Series: 10250T
• Alternate Mfr Part Number: 10250T15235-48
• Brand: Cutler Hammer
• Dimensions: 0.10 in W X 1.00 in L
• Manufacturer Part Number: 10250T15235-48
• UPC Code: 782113962573
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 4
• Item: Pushbutton
• Height (cm): 4.83
• Length (cm): 5.59
• Width (cm): 4.57
• Country Of Origin: US
• Weight (kg): 0.18
• Part Number: 10250T15235
• Manufacturer: Eaton
• Category: Motor Control
• Item Subcategory: Pilot Device
• Family: 10250T Series
