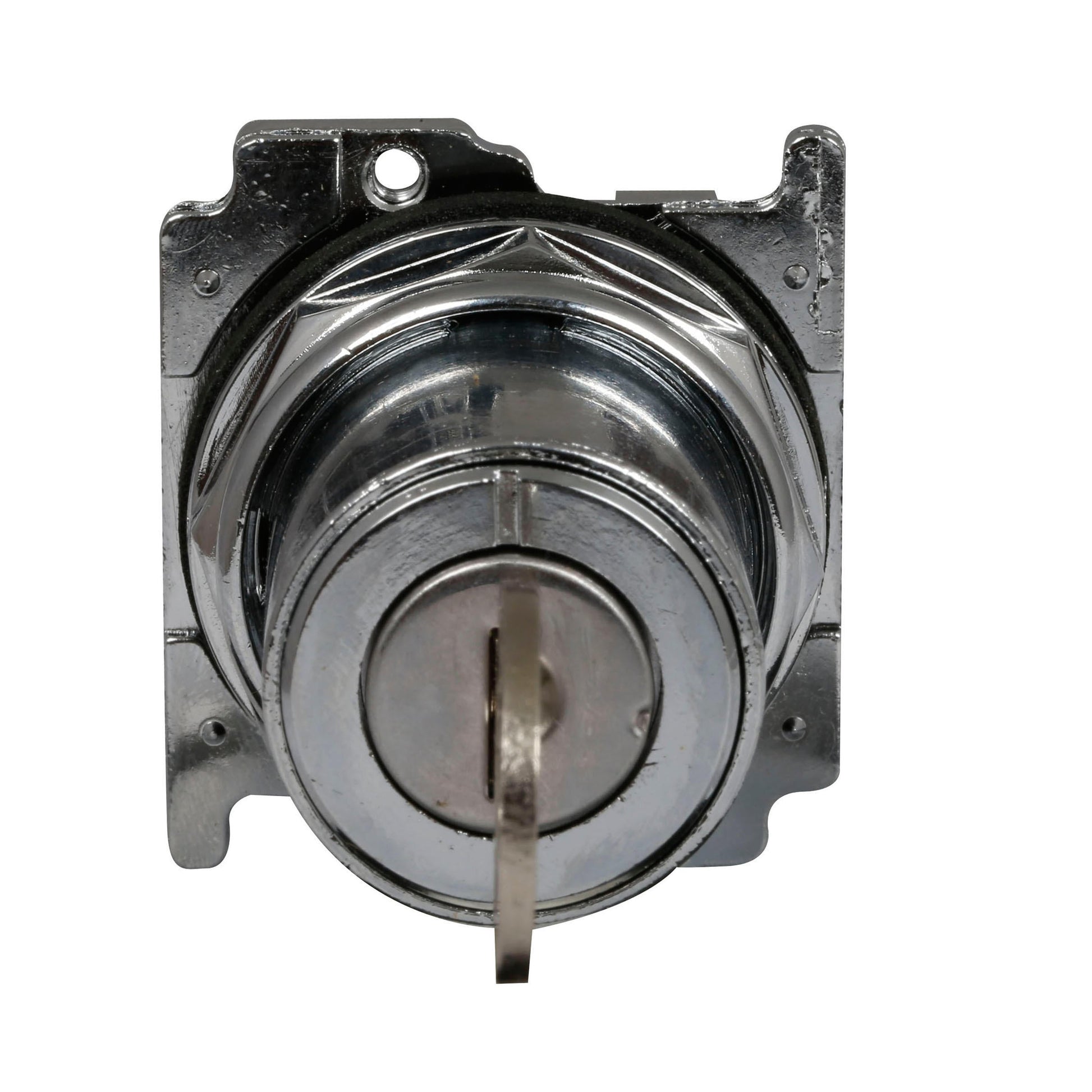

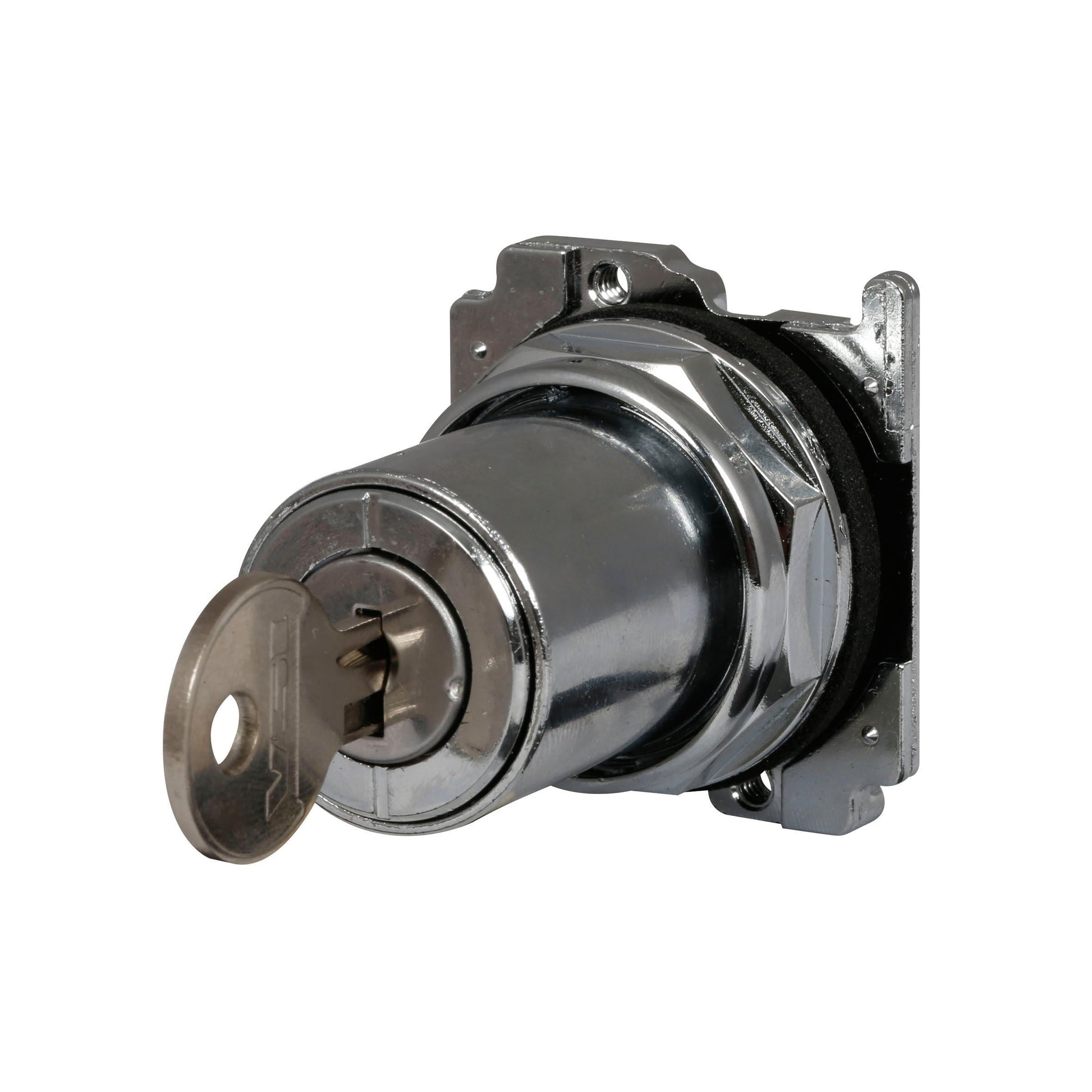

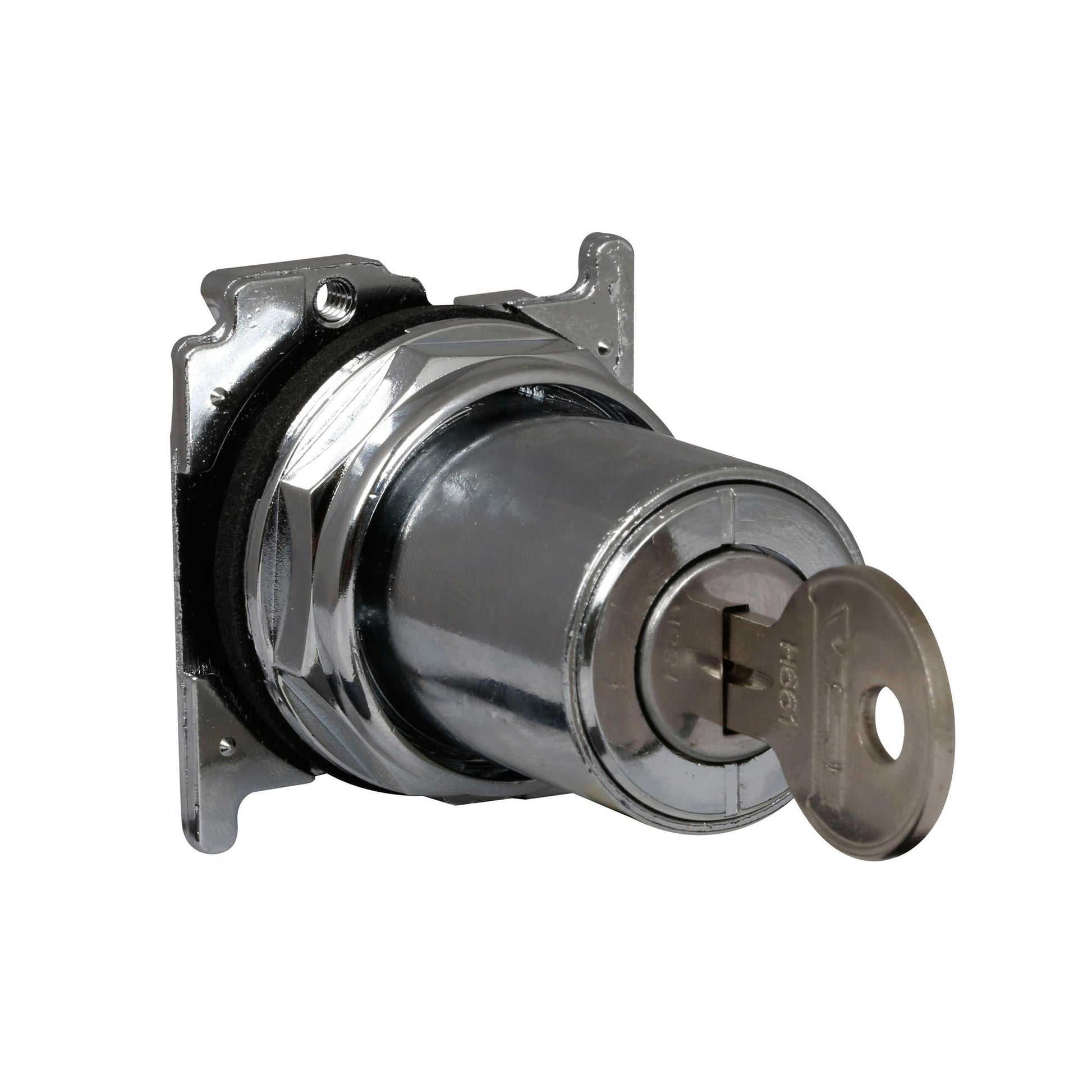

Eaton 10250T15234 selector switch 3-position

Product Description

The Eaton 10250T15234 selector switch delivers heavy-duty performance with a 30.5 mm size and 60° throw. Ideal for NEMA 3, 3R, 4, 4X, 12, and 13 applications, this non-illuminated switch features a three-position key mechanism with center or "off" control. It is suitable for motor control and pilot device applications.

• Heavy-duty selector switch
• 30.5 mm size with 60° throw
• Three-position key mechanism with center only key removal

Product Highlights

The EATON 10250T15234 is a heavy-duty, non-illuminated selector switch with a three-position key mechanism, ideal for motor control in various NEMA-rated environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T15234
• Country of Origin: United States

Technical Specifications

• MPN: 10250T15234
• Brand: Eaton
• Country of Origin: United States
• Manufacturer: Cutler Hammer
• Category: Motor Control
• Subcategory: Pilot Device
• Family: 10250T Series
• Type: 10250T
• Certification: CSA Certified, UL Listed, CE Marked
• Actuator Type: Key operated
• Cam Code: Cam 3
• Illumination: Non-Illuminated
• Key Removal Position: Center Only
• Nema Enclosure Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Number Of Positions: 3
• Throw Type: 60°
