Eaton 10250T15113 Pushbutton 30.5 mm Heavy-Duty

Product Description

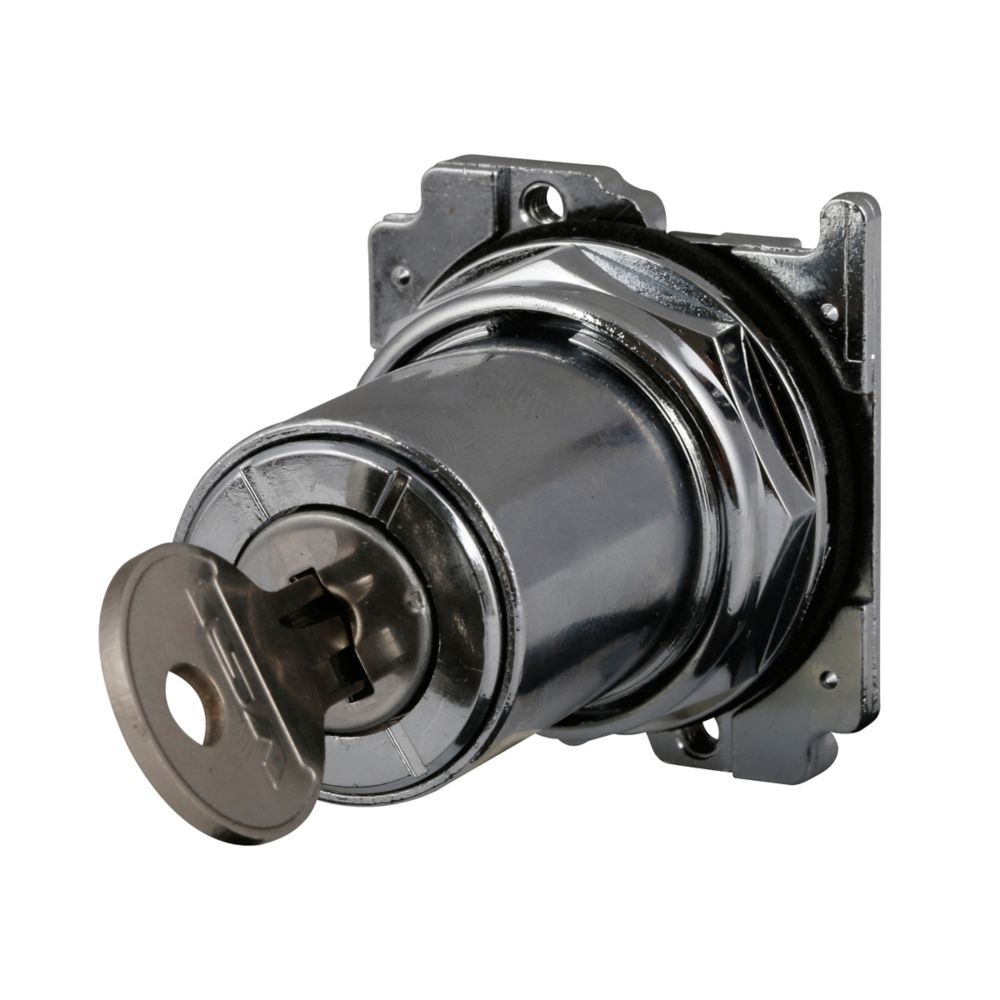

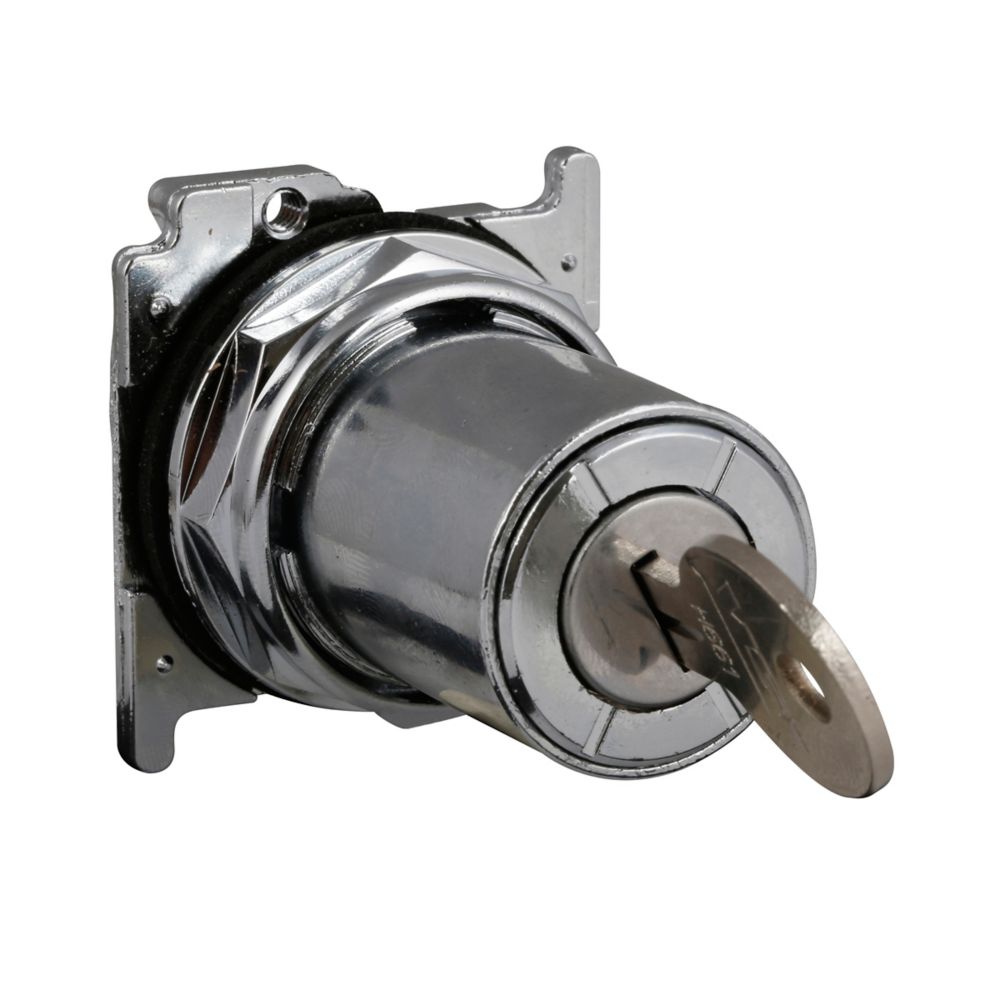

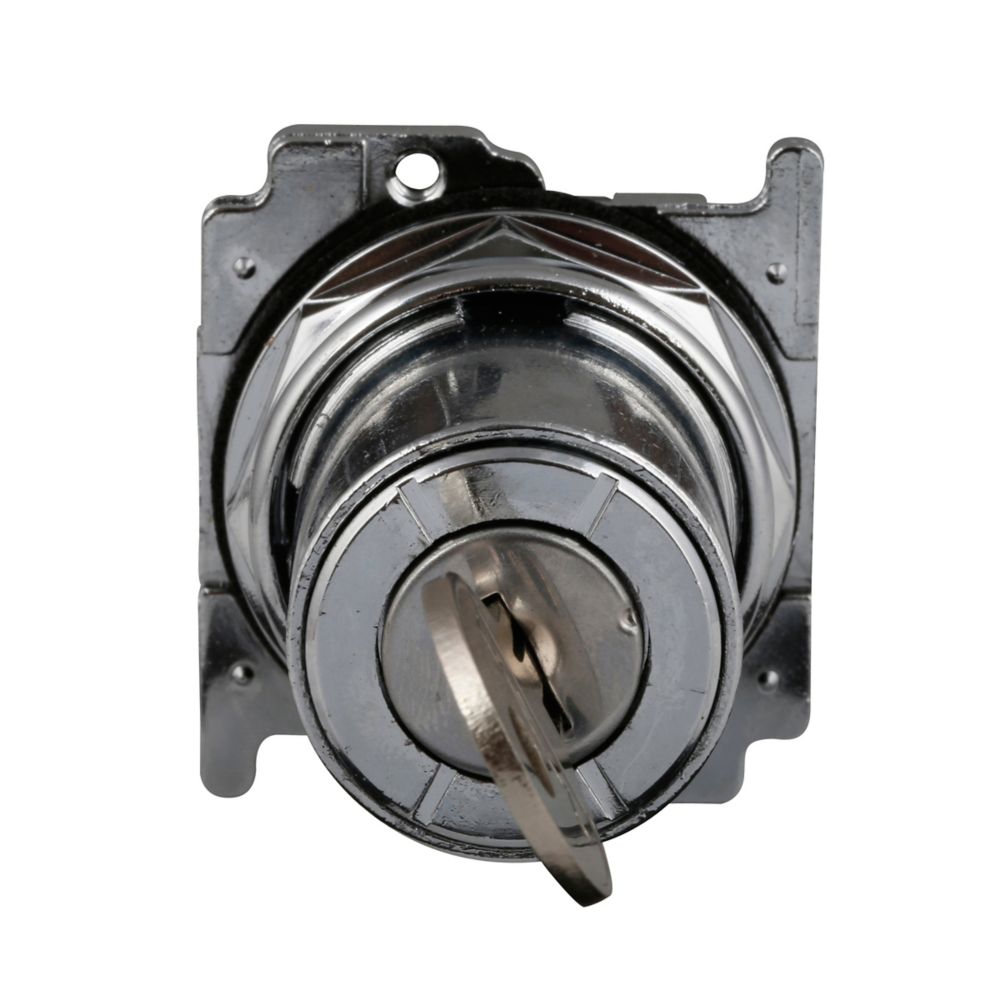

The Eaton 10250T15113 is a 30.5 mm heavy-duty selector switch operator. This non-illuminated, two-position, key-operated switch features a cam 1 and a 60° throw. It is rated NEMA 3, 3R, 4, 4X, 12, and 13. Suitable for electrical assemblies, panels and OEMs applications.

• Eaton contact blocks feature enclosed silver contacts with pointed reliability nibs.
• Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments.
• Right and left key removal position.

Product Highlights

This heavy-duty selector switch ensures reliable switching and is suitable for indoor and outdoor environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T15113

Technical Specifications

• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Cam code: Cam 1
• Key removal position: Right and left
• Actuator: Key/Right/Left
• Throw type: 60 00b0
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Illumination: Non-illuminated
• Number of positions: 2
• Series: 10250T
• Product Length/Depth: 1.9 in
• Product Height: 2.3 in
• Product Width: 1.9 in
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Part Number: 10250T15113
• Manufacturer: Eaton Cutler-Hammer Breakers
• Category: Business & Industrial\Electrical Equipment & Supplies\Switches\Selector Switches
• Material: Die Cast Zinc
• Application: Electrical Assemblies, Panels and OEMs Applications
• Mounting Type: Surface
• Operator Type: Keyed
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• Contact Configuration: 1NC/1NO
• Size: 30.5
• UNSPSC: 39122217
• Contact configuration: 1 NO-1 NC
• Mounting method: Vertical
• UNSPSC Code: 39120000
• Brand: Eaton
• Dimensions: 2.30 in H X 0.45 in W X 1.90 in L
• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T15113-1X
• UPC: 782113441870
• Product Diameter: 1.38 in
