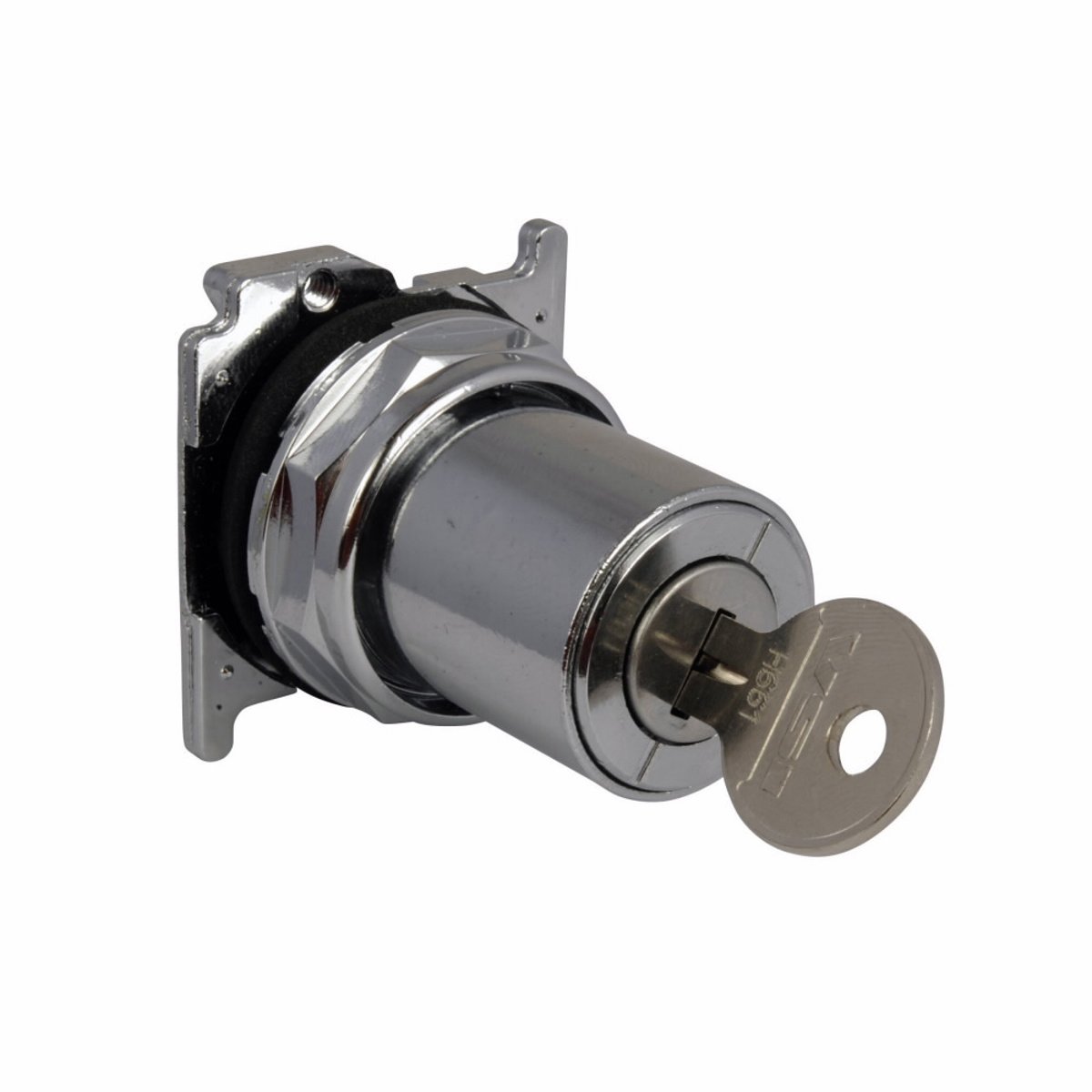

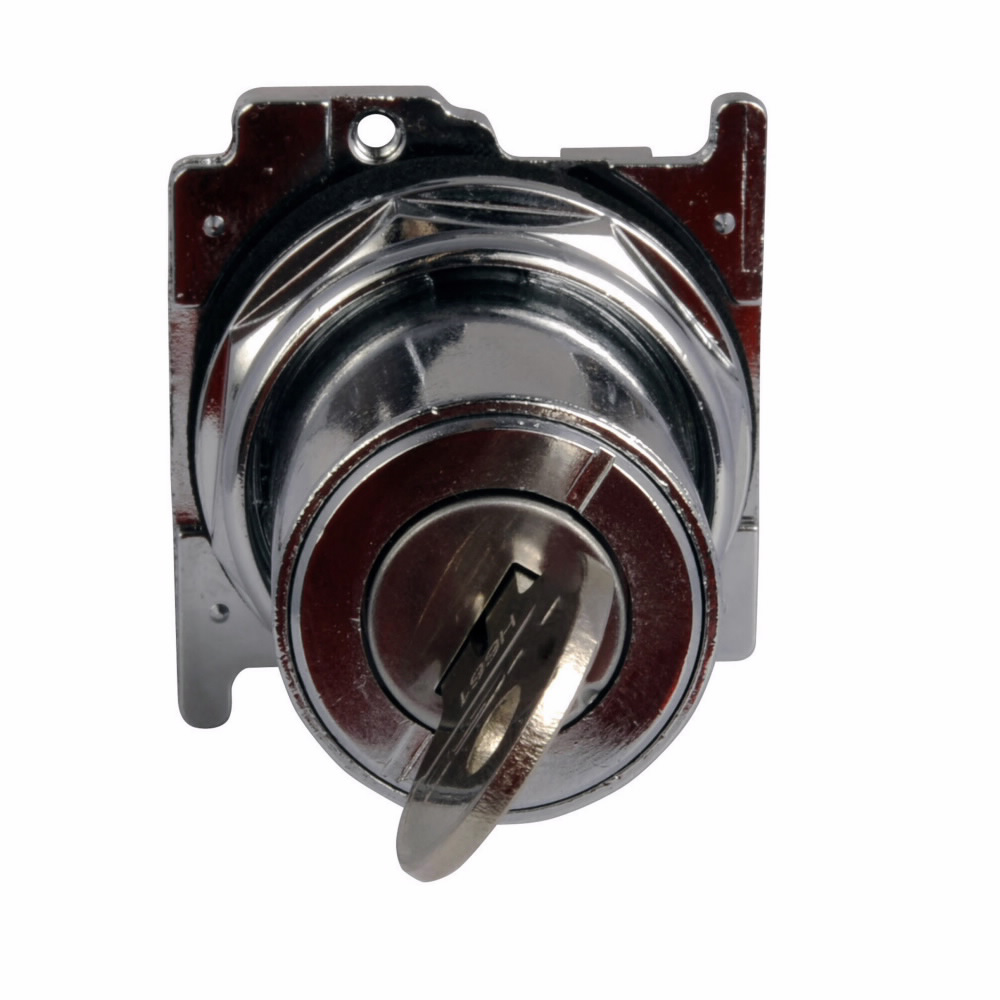

Eaton 10250T15111 Selector Switch 30.5 mm 2-Position NEMA 3 3R 4 4X

Product Description

Eaton 10250T15111 is a heavy-duty selector switch with a size of thirty point five millimeters. This non-illuminated switch features a maintained contact mode and two operational positions. The product is suitable for various applications, specifically designed for stationary machinery and equipment outside factories.

• Heavy-duty construction suited for rigorous environments.
• Operated by a key mechanism allowing for secure switching.
• NEMA-rated for multiple environments, including NEMA three, three R, four, four X, twelve, and thirteen.

Product Highlights

This selector switch is built to withstand harsh conditions, preventing liquid ingress through drainage holes, and features reliability nibs for improved contact performance.

Product Information

Standard Information

• Catalog Number: 10250T15111
• Brand: Eaton

Technical Specifications

• Type: Heavy Duty Non-Illuminated Oiltight/Watertight
• Size: 30.5 mm
• Number of Positions: 2
• Action: Maintained
• Height: 2.2 inches
• Width: 1.9 inches
• Length: 1.9 inches
• Weight: 0.35 lb
• Enclosure Rating: NEMA 3/3R/4/4X/12/13/IP65
• Application: Automation and logic control equipment
