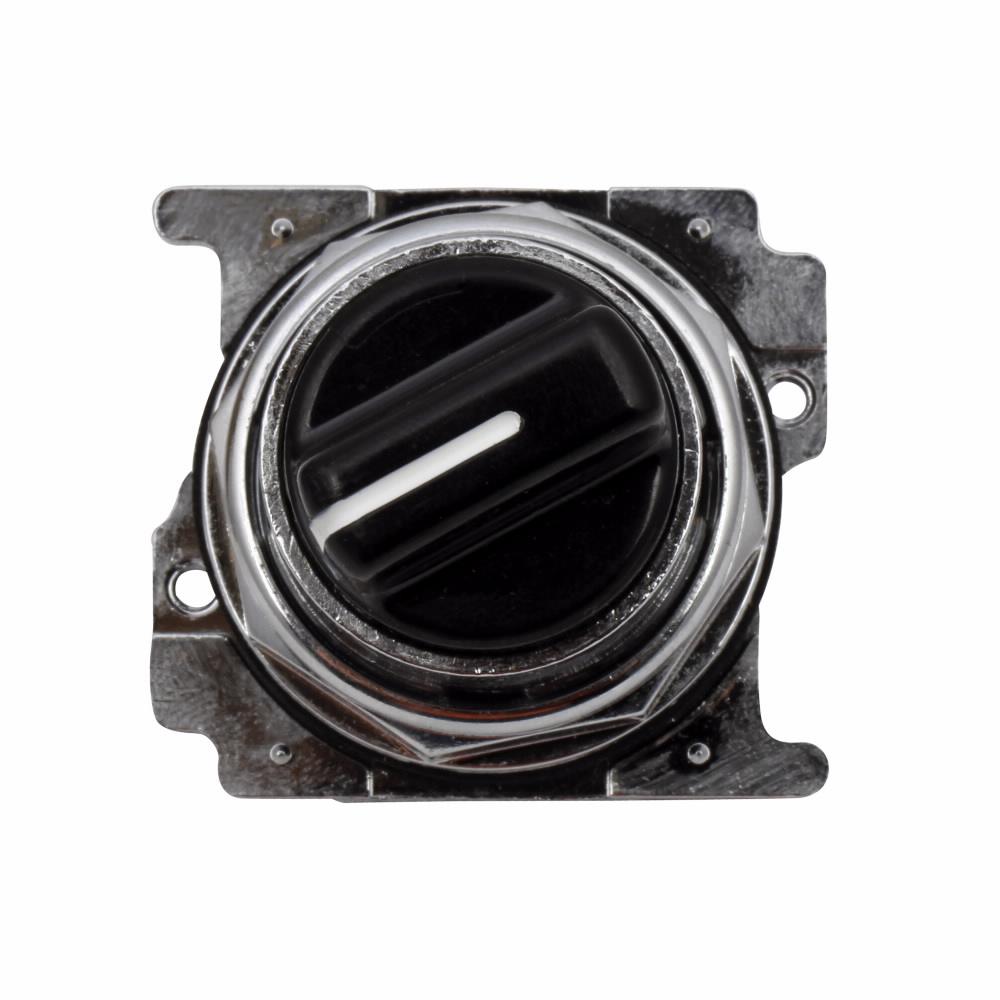

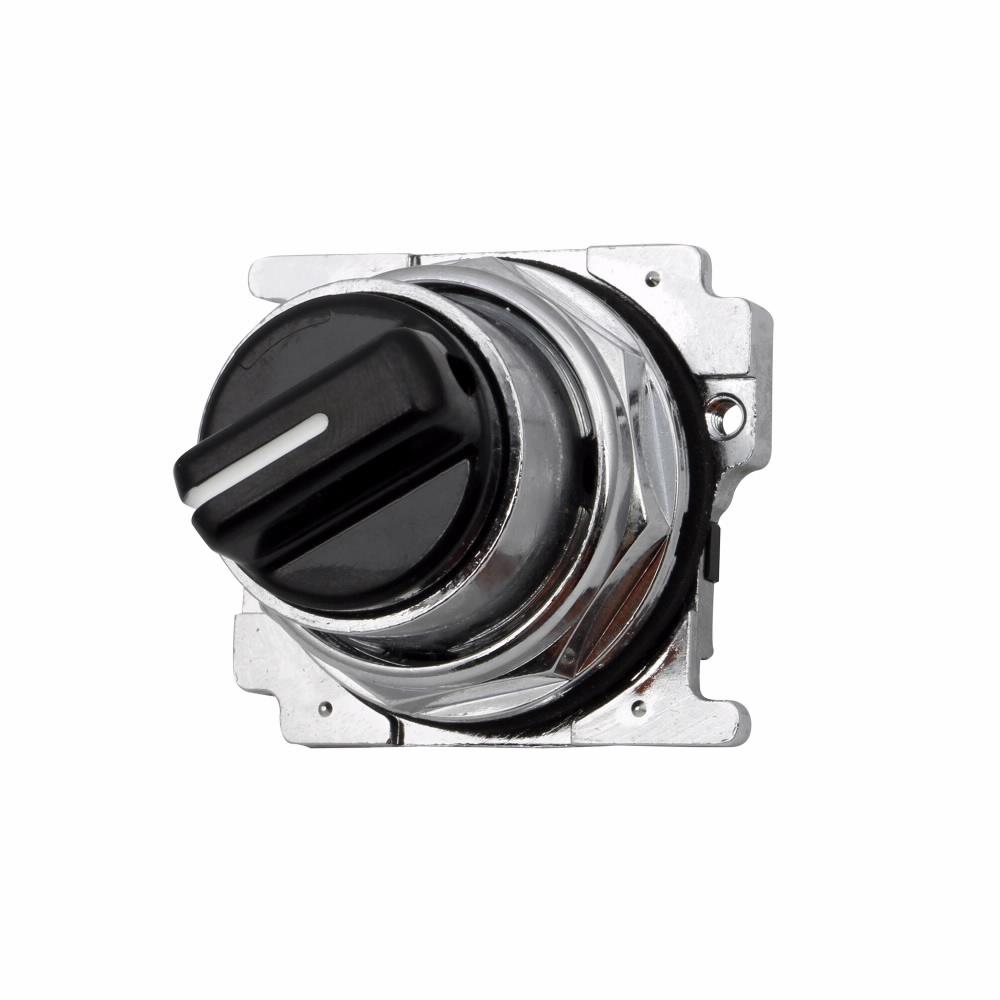

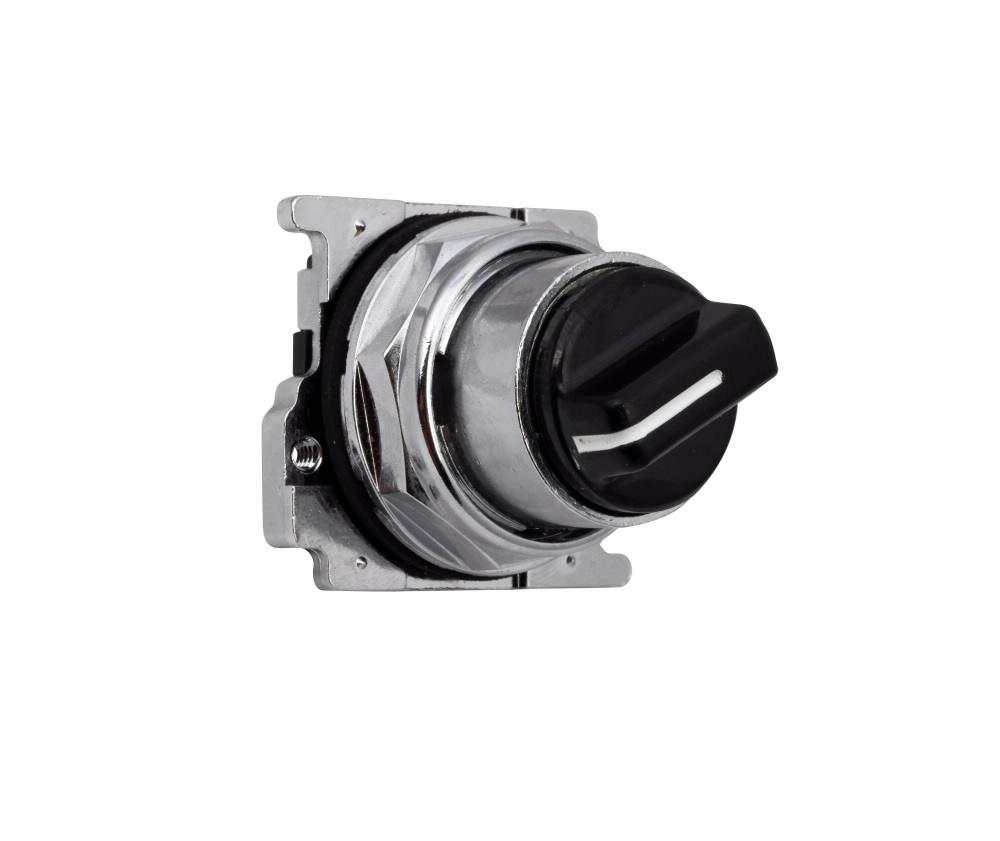

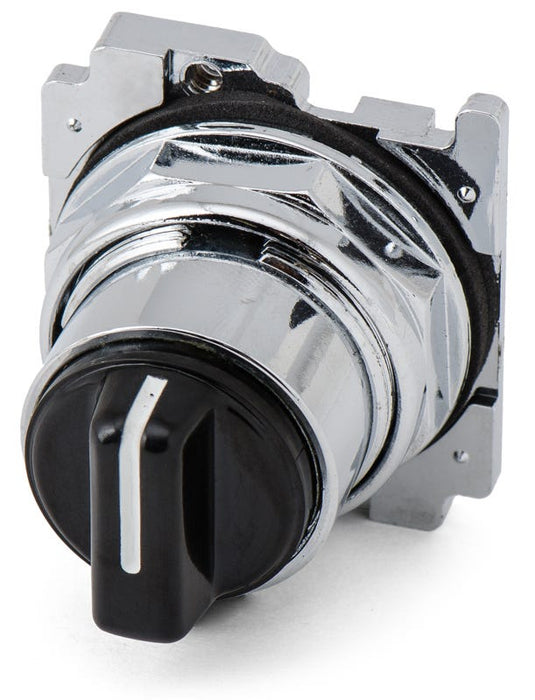

Eaton 10250T1371 selector switch operator 30.5 mm

Product Description

The Eaton 10250T1371 is a 30.5 mm heavy-duty selector switch featuring a zinc die-cast construction. Reliability nibs improve contact reliability, even under dry circuit and fine dust conditions. Drainage holes prevent liquid buildup inside, preventing operation issues in freezing environments. It has a knob operator and a maintained/spring return contact mode.

• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes
• Grounding nibs on the operator casing

Product Highlights

This heavy-duty oiltight/watertight non-illuminated selector switch is suitable for surface mounting and NEMA 3/4/12/13/3R/4X/IP65 enclosure applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T1371
• Country of Origin: United States

Technical Specifications

• Bezel/Housing: Die Cast Zinc
• Cam Code: 1
• Contact Mode: Maintained/Spring Return
• Enclosure Type: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Finish: Polished Chrome
• Mounting Type: Surface
• Series: 10250T
• Throw: 60 deg Left/Right
• Type: Heavy Duty Oiltight/Watertight Non-Illuminated
• Voltage Rating: 600 VAC
• Size: 30.5 mm
• Operator Type: Knob
• Number of Positions: 2
• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T1371
• UPC: 782113226460
• Product Length/Depth: 2.1 in
• Product Height: 1.9 in
• Product Width: 1.7 in
• Compliances: CE Marked
• Certifications: UL Listed
• Product Type: Pushbutton
• Actuator: Knob
• Illumination: Non-illuminated
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Throw Type: 60 Degree
• Brand: Eaton
• Terminal Connection: Standard Screw
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Length (in): 2.1
• Width (in): 1.7
• Height (in): 1.9
• Duty Rating: Heavy Duty
• Action: Maintained/Momentary
• Mpn: 10250T1371
• Upc: 782113226460
• Gtin: 782113226460
• Control Style: Switch
• Country of Origin: United States
• Dimensions (H x W x L): 1.9" x 1.7" x 2.1"
