Product Description

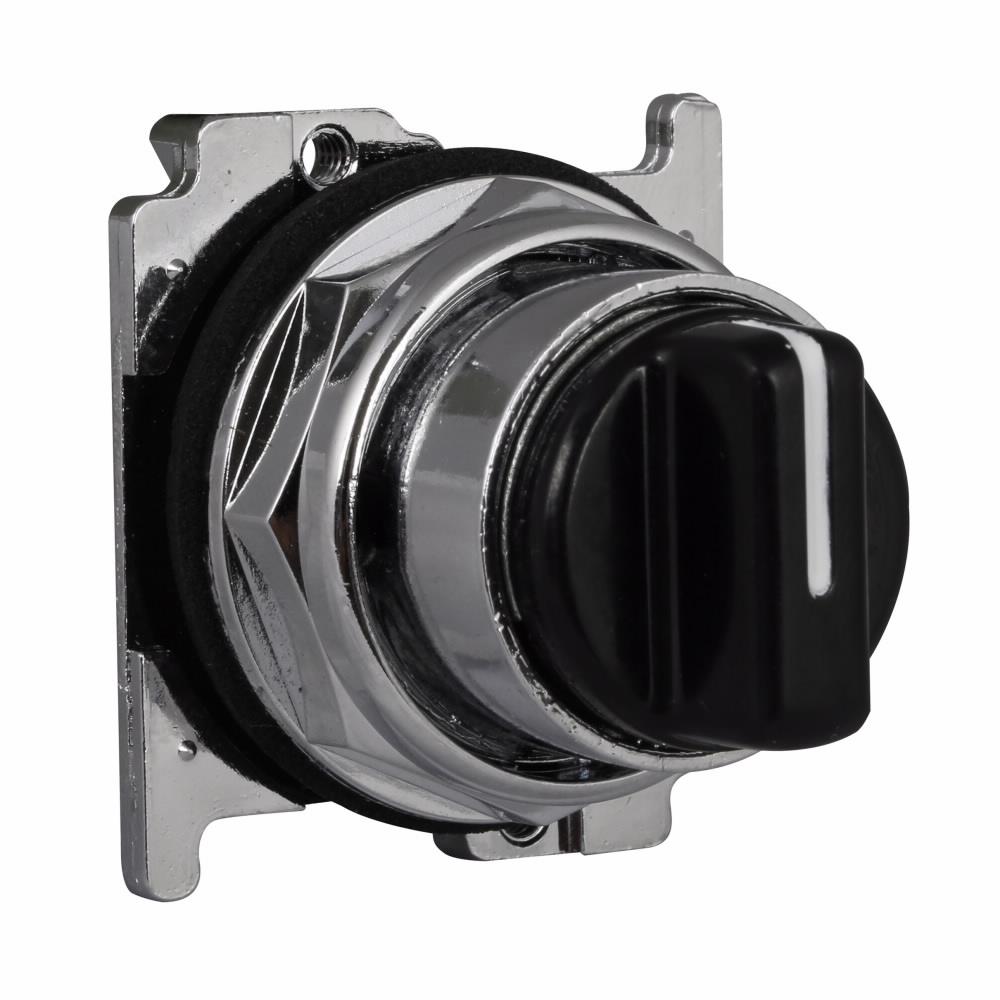

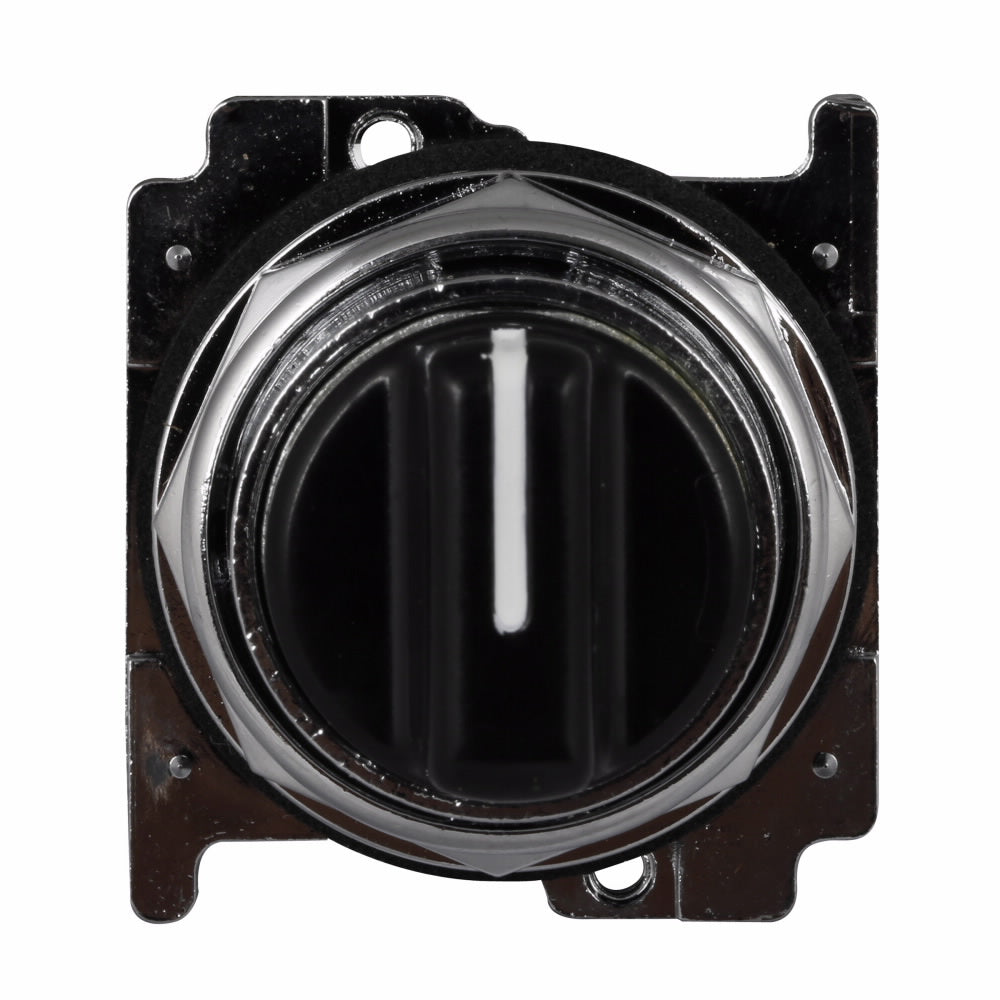

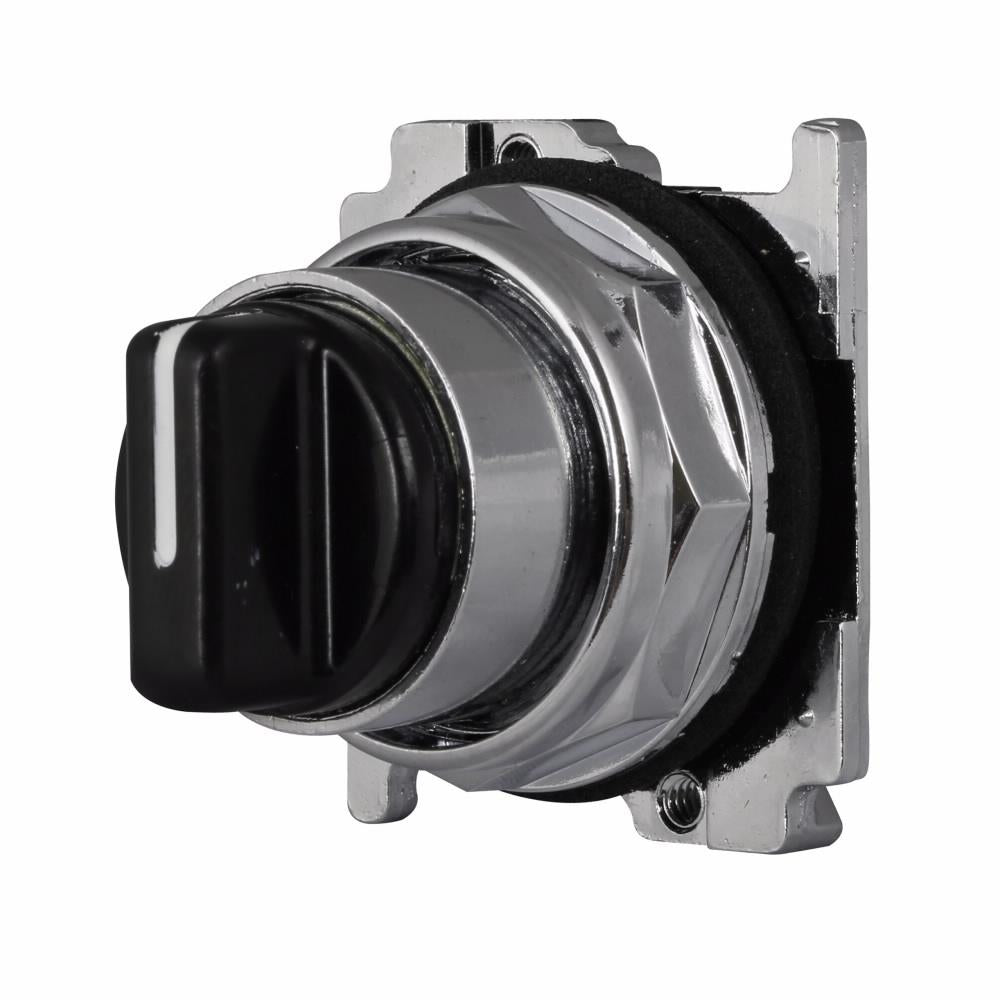

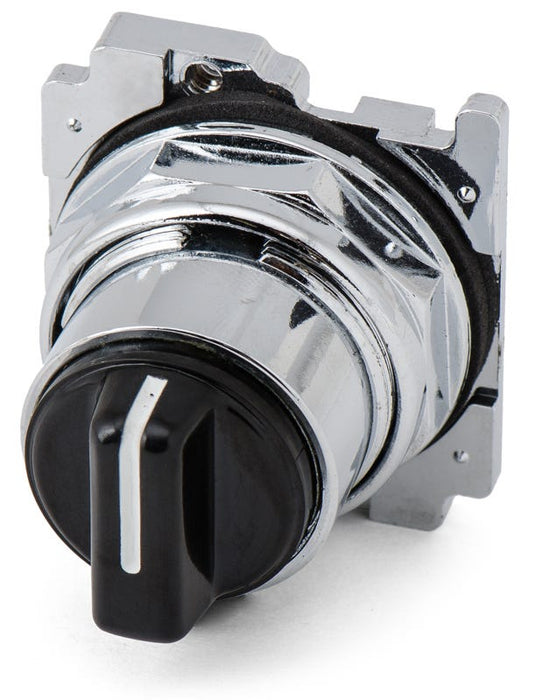

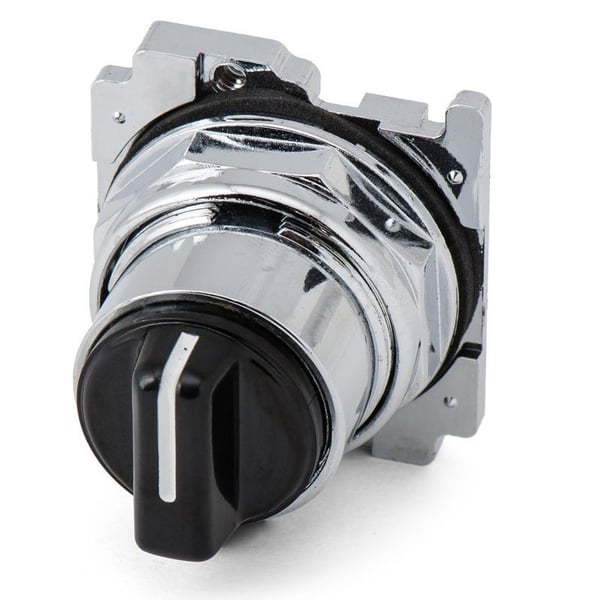

The Eaton 10250T1353 is a heavy-duty oiltight/watertight pushbutton non-illuminated selector switch operator. The 30.5 mm size pushbuttons feature a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
- Enclosed silver contacts with reliability nibs
- Diaphragm seals with drainage holes
- Grounding nibs on the operator casing
Product Highlights
This EATON selector switch operator is ideal for automation and logic control equipment applications. It features a knob operator, 3 positions, and 60 deg Left Center/Right Throw.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 10250T1353
-
Country of Origin: Dominican Republic
Technical Specifications
-
Bezel/Housing: Die Cast Zinc
-
Cam Code: 3
-
Contact Mode: Maintained/Spring Return
-
Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
-
Finish: Polished Chrome
-
Mounting Type: Surface
-
Series: 10250T
-
Throw: 60 deg Left Center/Right
-
Type: Heavy Duty Oiltight/Watertight Pushbutton Non-Illuminated
-
Voltage Rating: 600 VAC
-
Size: 30.5 mm
-
Operator Type: Knob
-
Number of Positions: 3
-
Application: Automation and Logic Control Equipment Applications
-
Standards/Approvals: Buy American Act Compliant|CE Certified|CSA C22.2 File No. 14 File No. LR68551|EN 60947-5-1/60947-5-5|UL 508 File No. 131568
-
Product Length/Depth: 2.1 in
-
Product Height: 1.9 in
-
Product Width: 1.9 in
-
Product Weight: 0.25 lb
-
Compliances: CE Marked
-
Certifications: CSA Certified UL Listed
-
Product Type: Pushbutton
-
Actuator: Knob
-
Illumination: Non-illuminated
-
NEMA rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
-
Product Category: Selector switch
-
Action: Maintained/Maintained/Momentary
-
Terminal Connection: Standard Screw
-
Nema Rating: 3, 3R, 4, 4X, 12, 13
-
Duty Rating: Heavy Duty
-
IP Rating: IP65
-
Panel Mounting Hole Diameter: 30 mm
-
Standards: CSA; UL Listed
-
Switch Function @ 1st Position: On
-
Switch Function @ 2nd Position: On
-
Switch Function @ 3rd Position: On
-
Switch Function @ 4th Position: No Fourth Position
-
Switch Head Type: Short Lever
-
Bezel Material: Anodized Aluminum
-
Hazardous Location Specification: Not Rated
-
Operator Head Material: Metal
