Eaton 10250T1342 Sel Sw 3P Knb Spr-Rl 30.5 mm

Product Description

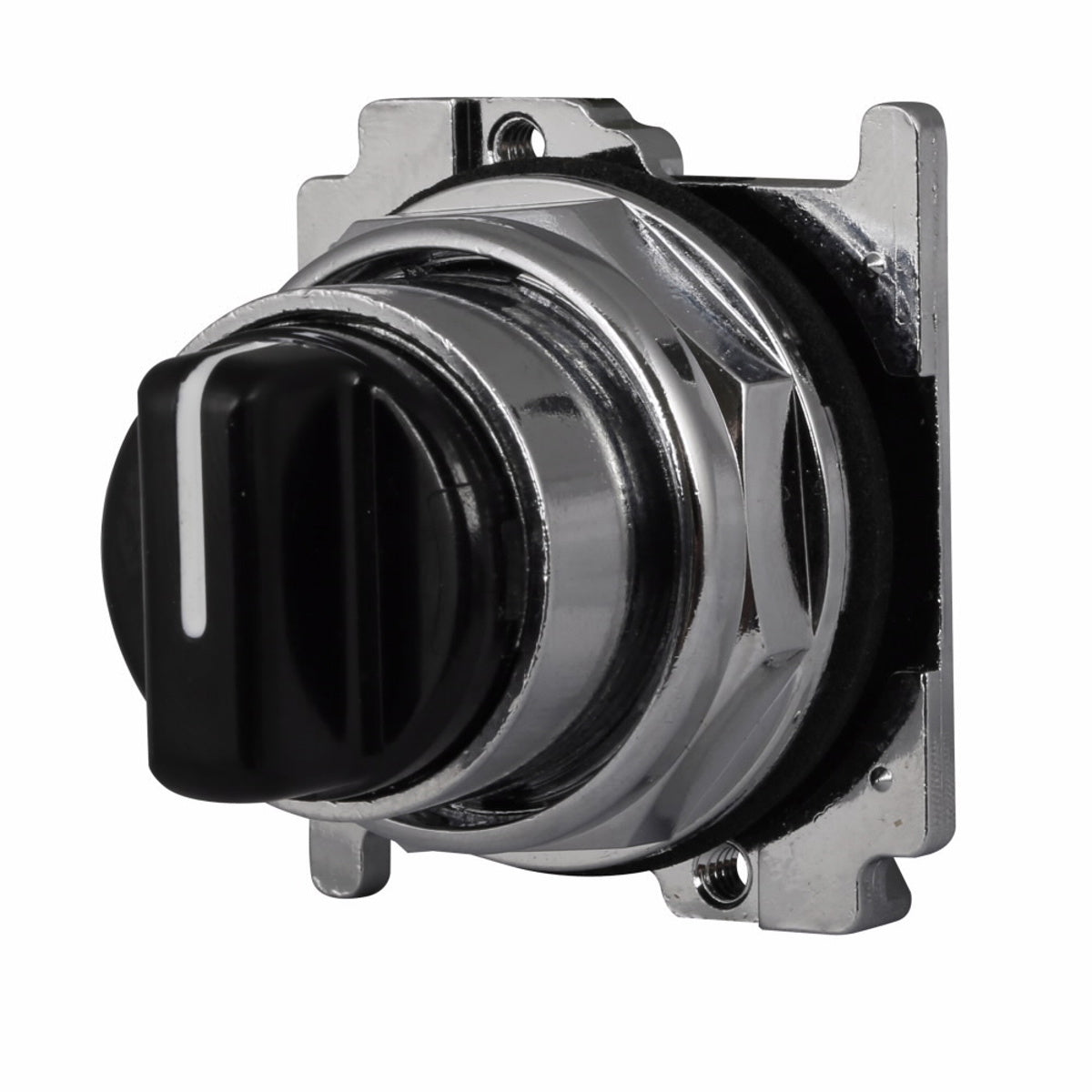

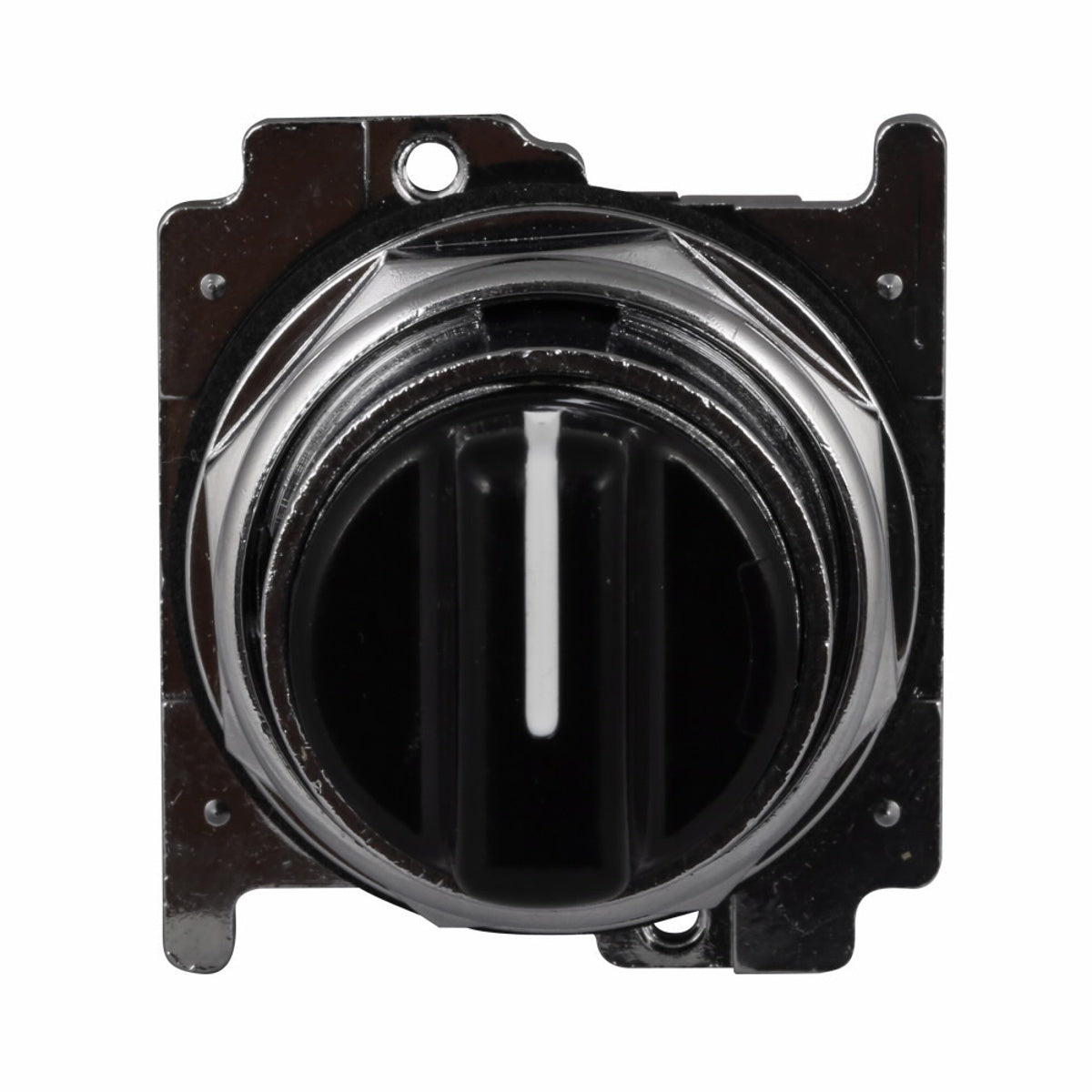

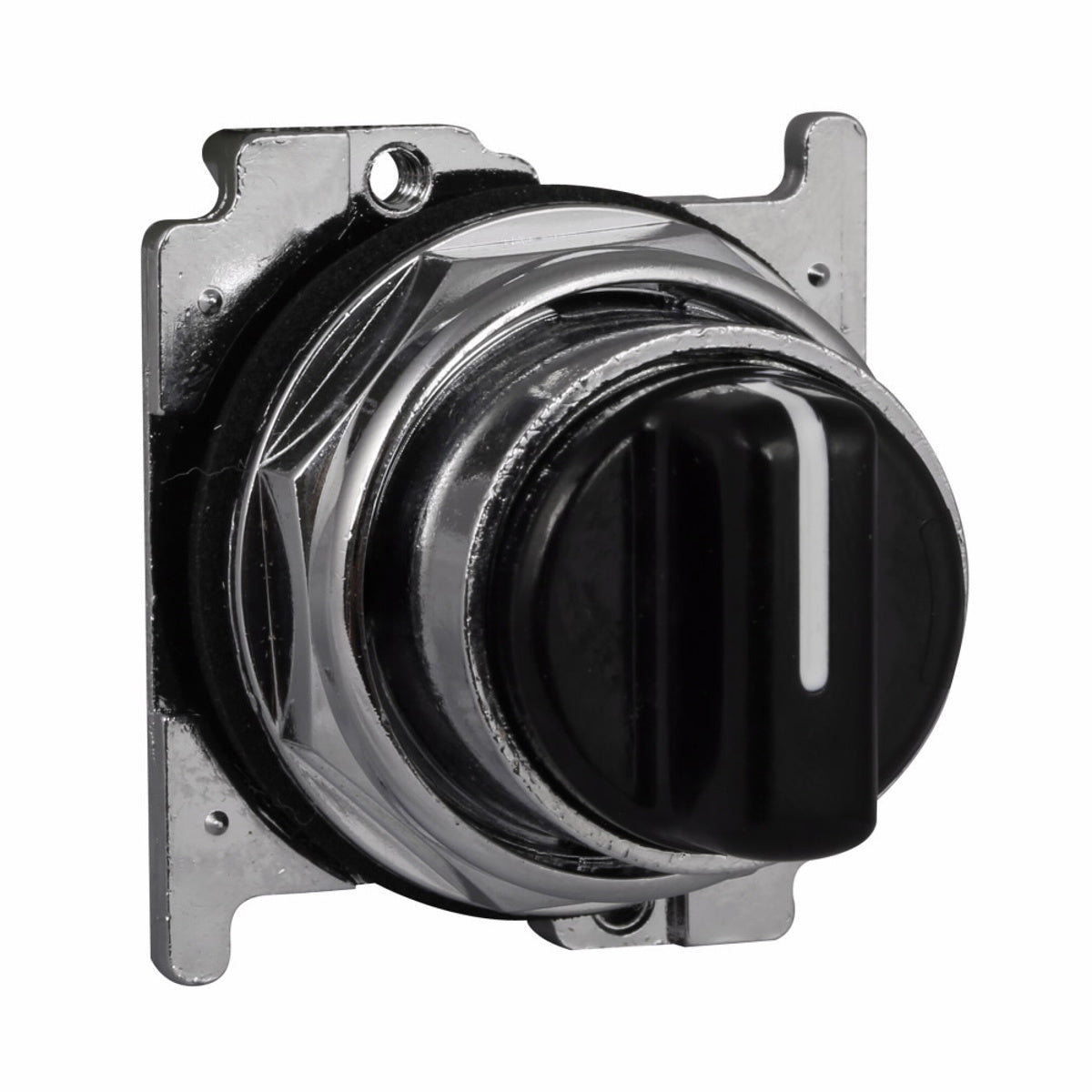

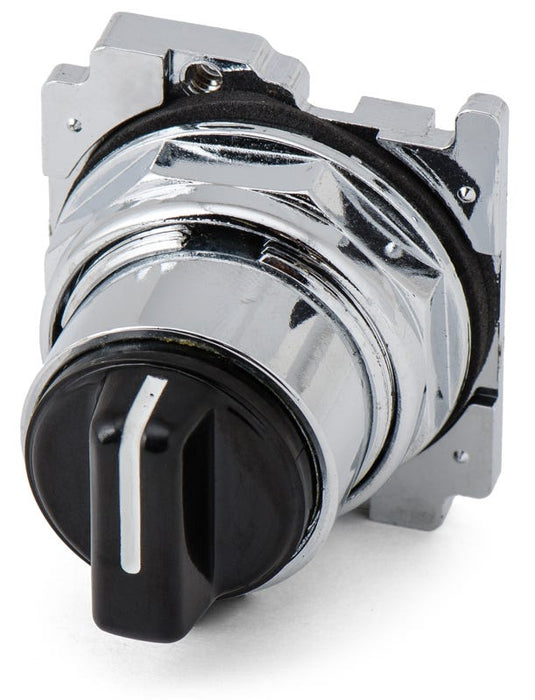

The EATON 10250T1342 is a 30.5 mm selector switch. This heavy-duty, non-illuminated, three-position switch features a knob actuator. It is designed for electrical assemblies, panels, and EOEMs. The unit is oiltight and watertight, with a maintained/spring return contact mode and a 60-degree throw. It is suitable for use in various applications requiring a robust and reliable selector switch.

• Heavy Duty
• Non-illuminated
• Three-position

Product Highlights

Heavy-duty selector switch with knob actuator, ideal for industrial applications requiring robust and reliable performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T1342
• Country of Origin: Dominican Republic

Technical Specifications

• Size: 30.5 mm
• Type: Selector Switch
• Brand: Eaton
• Width: 1.8 in
• Action: Maintained, 60 Throw
• Height: 2.1 Inch
• Length: 2 Inch
• Actuator: Knob
• Duty Rating: Heavy Duty
• Applications: Electrical Assemblies, Panels and EOEMs
• Mounting Type: Vertical
• Number of Positions: 3
• Catalog Number: 10250T1342
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Standard: CSA Certified,UL Listed,CE Marked
• UPC: 782113226408
• GTIN: 00782113226408
• Bezel/Housing: Die Cast Zinc
• Cam Code: 2
• Contact Mode: Maintained/Spring Return
• Enclosure Type: NEMA 3/4/12/13/3R/4X/IP65
• Finish: Polished Chrome
• Series: 10250T
• Throw: 60 deg Left Center/Right
• Voltage Rating: 600 VAC
• Application: Automation and Logic Control Equipment Applications
• Standards/Approvals: CSA C22.2 File No. 14 File No. LR68551|CE Certified|EN 60947-5-1/60947-5-5|UL 508 File No. 131568
• MPN: 10250T1342
• Product Length/Depth: 2 in
• Product Height: 2.1 in
• Product Width: 1.8 in
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Throw type: 60 °
• Model: 10250T1342
• Depth: 1.900
