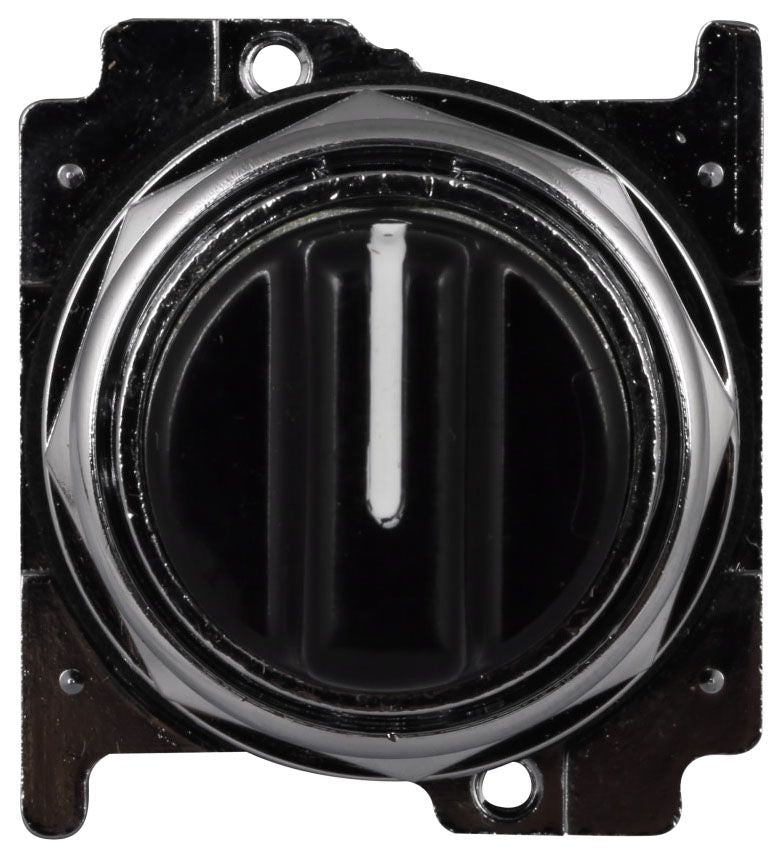

Eaton 10250T1333 Knob Type Operator 30.5mm

Product Description

The EATON 10250T1333 is a knob type operator designed for use in 30.5mm control stations and industrial control panels. This operator provides a reliable manual switching interface, allowing technicians to actuate control circuits through a rotating knob mechanism. It is built for installation into standard 30.5mm panel cutouts and serves as a direct interface between operator personnel and the control system. Licensed electricians and industrial maintenance technicians are the primary installers of this component. Its compact form factor and straightforward mounting make it a practical replacement or new-install choice for industrial control applications.

This knob operator is suited for industrial and commercial control panel applications requiring a 30.5mm mounting footprint. It is typically found in motor control centers, machine control panels, and process control enclosures where manual operator input is needed. The 10250T1333 fits into the 10250T series control station product family from EATON, making it a logical fit for facilities already using that platform.

Key Features

• Knob type actuator for manual rotation-based circuit control
• Designed for 30.5mm panel cutout mounting
• Compact dimensions: 1.9 inches x 2.0 inches x 2.3 inches
• Lightweight construction at 0.25 pounds
• Part of the EATON 10250T series control station platform

Compatibility

Designed as an OEM-style replacement operator for 30.5mm control stations and panel-mount operator assemblies within the EATON 10250T series product family.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC guidelines. De-energize and lock out the control panel before removing or installing any operator component. Verify the panel cutout measures 30.5mm before mounting to ensure proper fit and secure retention. Do not force-fit the operator into undersized or non-standard cutouts.

Technical Specifications

• Operator Type: Knob Type
• Mounting Cutout: 30.5mm
• Dimensions (L x W x H): 1.9 inches x 2.0 inches x 2.3 inches
• Weight: 0.25 pounds
• UPC: 78211322639

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T1333
