Eaton 10250T124 Pushbutton 40 mm

Product Description

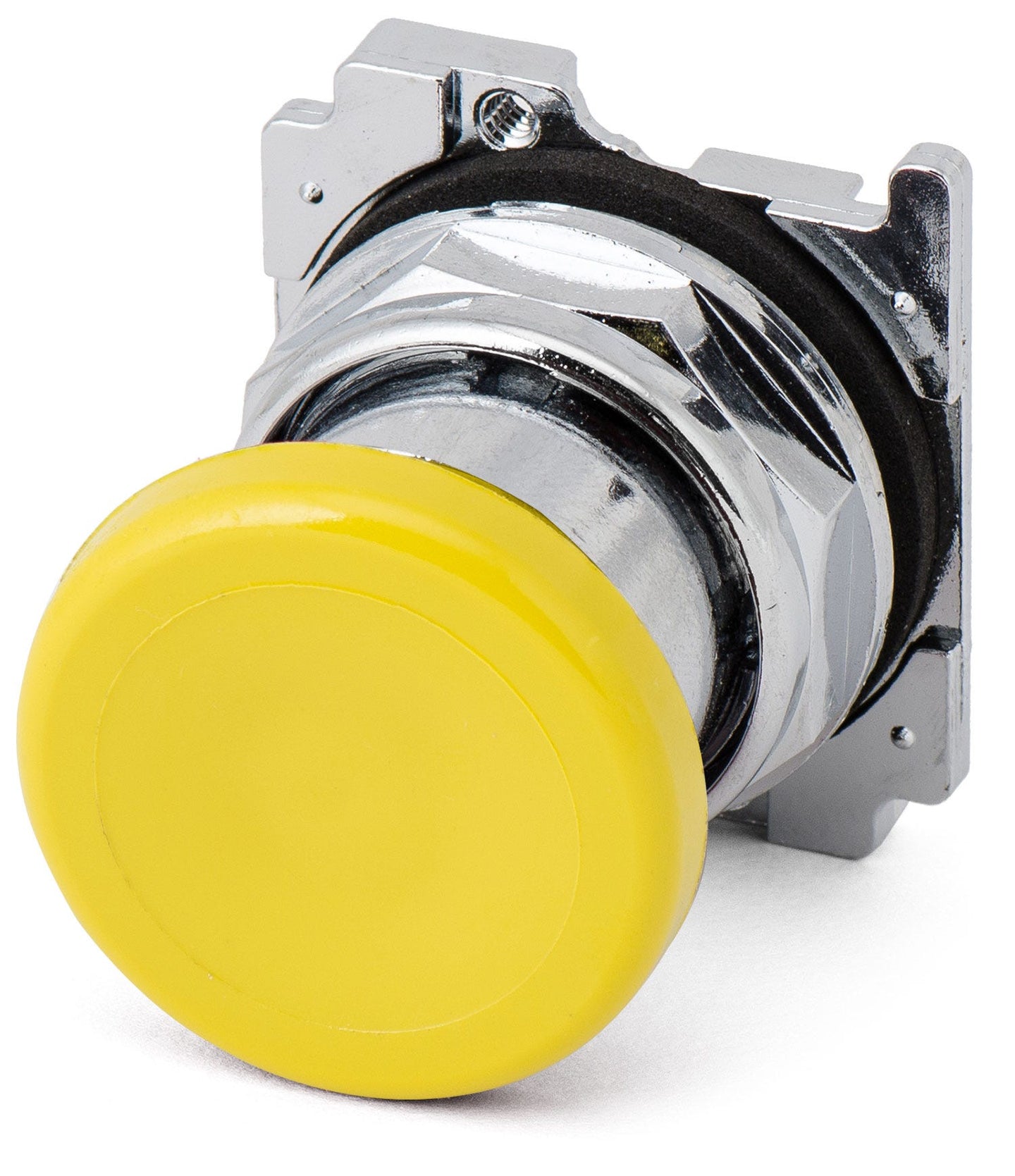

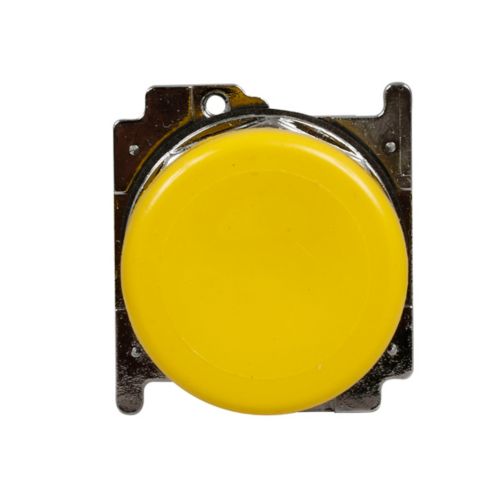

The Eaton 10250T124 is a 30.5 mm pushbutton with a momentary action and a mushroom head actuator. It features a chrome bezel and a plastic actuator. This heavy-duty, oil/watertight non-illuminated pushbutton operator is suitable for stationary machinery and equipment outside factories.

• Heavy duty die-cast zinc construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes

Product Highlights

The Eaton 10250T124 offers reliable performance in demanding industrial environments with its robust construction and multiple certifications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T124

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T124
• UPC: 782113203386
• Product Length/Depth: 2 in
• Product Height: 2.3 in
• Product Width: 1.9 in
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Product Type: Pushbutton
• Type: Heavy Duty Oil/Watertight
• Actuator color: Yellow
• Bezel: Chrome
• Bus material: Zinc die cast
• Actuator material: Plastic
• Actuator: Mushroom
• Operating mode: Momentary
• Illumination: Non-illuminated
• Series: 10250T
• Rating: NEMA 12 NEMA 3R NEMA 4 NEMA 4X NEMA 13 NEMA 4
• Degree of protection: NEMA 3 NEMA 4 NEMA 12 NEMA 3R NEMA 13 NEMA 4X
• Size: 40 mm
• Brand: Eaton
• Approval: UL, CSA, CE
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Duty Rating: Heavy Duty
• Actuator Type: Mushroom Head
• Action: Momentary
• Mpn: 10250T124
• Gtin: 782113203386
• Number of Items: 1
• Manufacturer: CH3
• Part Number: 10250T124
• Contact configuration: 1 NC
• Special features: Fingerproof cover
• Material: Die-Cast Zinc
• Application: Stationary Machinery, Equipment Outside Factory and Other Applications
• Operator Type: Mushroom Head
• Contact Rating: 10 A at 600 VAC/VDC
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Temperature Rating: 1 to 150
• Includes: Center Conduit Clip
