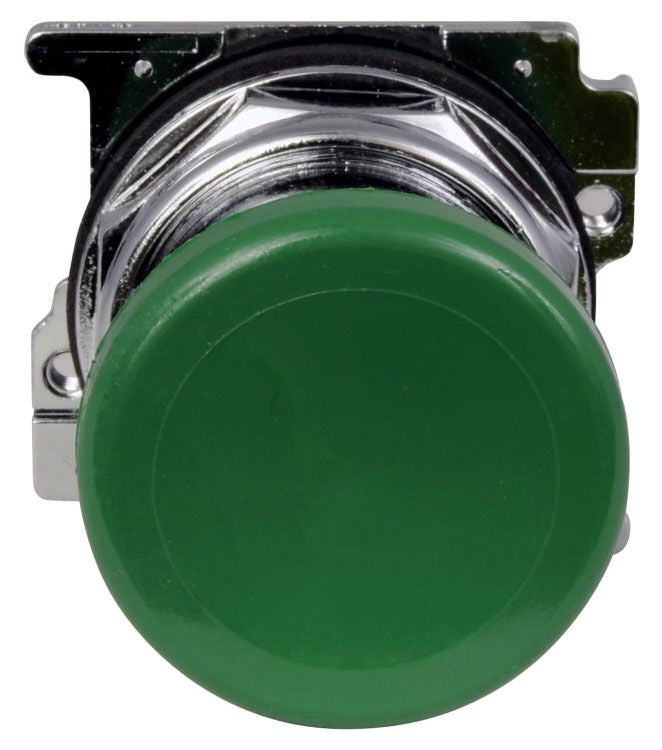

Eaton 10250T123 Mushroom Head Pushbutton 30.5mm

Product Description

The EATON 10250T123 is a mushroom head pushbutton operator designed for use in industrial control panel applications. This 30.5mm device provides a large, highly visible actuator surface that is well suited for emergency stop, machine halt, or other critical operator-interface functions. Electrically, it serves as a discrete control input in low-voltage panel circuits and is installed by licensed electricians and panel builders working on industrial and commercial machinery. Its robust construction meets the demands of frequent actuation in demanding shop-floor environments.

This pushbutton operator is typically used in industrial control panels, machine tools, conveyors, and process equipment where a 30.5mm panel cutout is present. The mushroom head format is a common choice for functions that require quick, positive operator action, including machine stop sequences and interlock controls. It fits into standard 30.5mm operator interface stations and is compatible with the 10250T series contact block platform.

Key Features

• Mushroom head actuator provides a large target surface for positive, reliable operator actuation
• 30.5mm mounting diameter fits standard industrial control panel cutouts
• Compatible with 10250T series contact blocks for flexible circuit configuration
• Compact footprint: 1.9 inches x 1.9 inches x 2.3 inches (LxWxH)
• Lightweight construction at 0.25 pounds for easy panel integration

Compatibility

Designed as an OEM-style replacement or new-installation operator for 30.5mm industrial control stations using the EATON 10250T series contact block system.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before mounting or wiring any pushbutton operator. Secure the operator into the panel cutout per the manufacturer torque guidance on the hardware supplied, and verify contact block seating before restoring power.

Technical Specifications

• Actuator Type: Mushroom Head
• Mounting Diameter: 30.5mm
• Dimensions (LxWxH): 1.9 inches x 1.9 inches x 2.3 inches
• Weight: 0.25 pounds
• UPC: 78211320337

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T123
