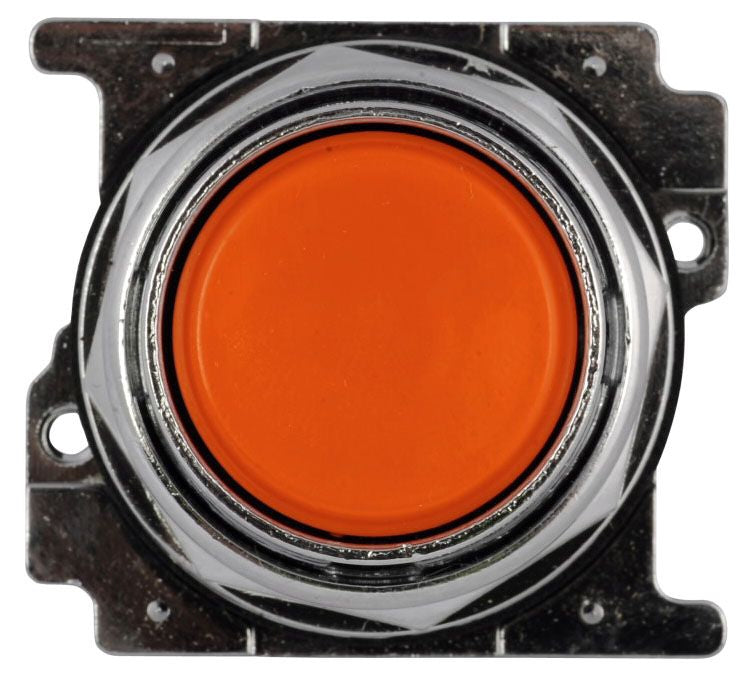

Eaton 10250T109 Flush Type Pushbutton Operator 30.5mm

Product Description

The EATON 10250T109 is a flush-type pushbutton operator designed for 30.5mm diameter panel cutouts. It serves as the operator component in industrial control stations, providing a low-profile actuator for starting, stopping, or signaling electrical control circuits. Flush-type operators sit level with the surrounding panel surface, reducing the chance of accidental actuation in busy industrial and commercial environments. Licensed electricians and industrial control panel builders install this type of operator as part of a complete pushbutton station assembly.

This operator is suited for use in industrial control panels, machine tool stations, and process control enclosures where a 30.5mm operator is specified. It is appropriate for both new panel builds and replacement applications where the original flush-type operator has worn or failed. Its compact footprint fits panels where space between adjacent components is limited.

Key Features

• Flush-type actuator design reduces risk of accidental activation
• 30.5mm panel cutout diameter for straightforward mounting
• Compact dimensions suit dense control panel layouts
• Lightweight construction at 0.25 pounds

Compatibility

Designed as an OEM-style replacement or new-installation operator for 30.5mm pushbutton control stations in industrial and commercial panel applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines and applicable local codes. De-energize and lock out the control panel before removing any existing operator or inserting this unit. Verify that the panel cutout diameter matches the 30.5mm specification before installation. Do not over-torque the mounting hardware, as this can crack the operator body or distort the panel surface.

Technical Specifications

• Operator Type: Flush Type
• Panel Cutout Diameter: 30.5mm
• Length: 2.0 inches
• Width: 1.9 inches
• Height: 2.2 inches
• Weight: 0.25 pounds
• UPC: 78211322548

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T109
