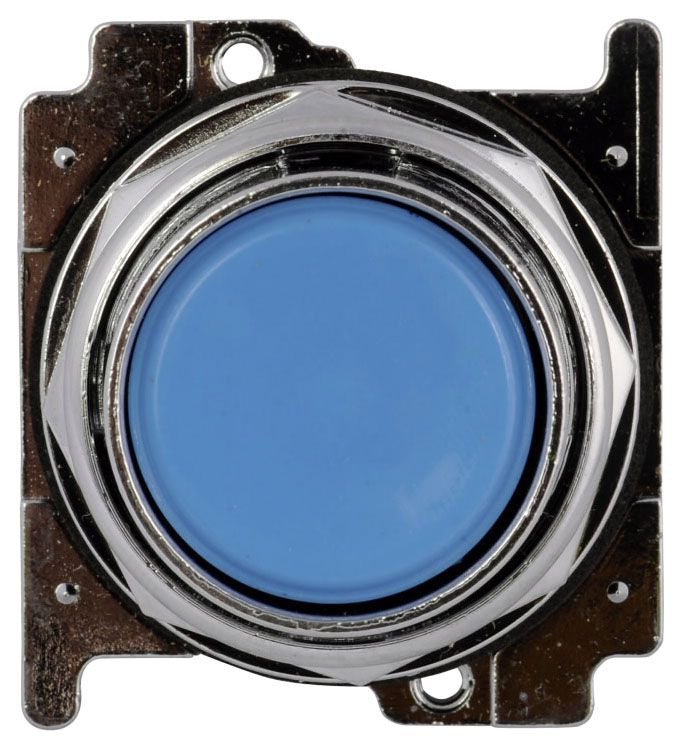

Eaton 10250T108 Flush Type Pushbutton Operator 30.5 Mm

Product Description

The EATON 10250T108 is a flush-type pushbutton operator designed for industrial control panel applications. Built to the 30.5 mm mounting standard, this operator fits into standard 30.5 mm cutout openings and actuates control circuits in machine tool, process control, and general industrial electrical systems. It is typically installed by licensed electricians or industrial maintenance technicians as part of a larger operator interface station. The compact flush-mount design keeps the actuator face level with the panel surface, reducing the risk of accidental activation in high-traffic control environments.

This operator is suited for use in industrial control panels, motor control centers, and operator interface enclosures where a flush-profile actuator is required. The 30.5 mm format is a widely used standard in industrial environments, making the 10250T108 a practical fit for new panel builds and retrofit applications alike. It is typically paired with a compatible contact block to complete the switching circuit.

Key Features

• Flush-type actuator profile reduces risk of unintended activation
• 30.5 mm mounting diameter fits standard industrial panel cutouts
• Compact form factor at 1.9 x 1.9 x 2.2 inches overall dimensions
• Lightweight construction at 0.2 pounds
• Designed for pairing with compatible 10250T-series contact blocks

Compatibility

Designed as an OEM-style replacement or new-installation flush pushbutton operator for 30.5 mm industrial control panel stations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before installing or replacing any operator or contact block. The operator mounts through a standard 30.5 mm panel cutout and secures with the appropriate retaining nut or bezel hardware. Do not over-tighten the mounting hardware, as this may crack the operator body or distort the panel surface.

Technical Specifications

• Mounting Diameter: 30.5 mm
• Actuator Type: Flush
• Dimensions (L x W x H): 1.9 x 1.9 x 2.2 inches
• Weight: 0.2 pounds
• UPC: 78211322547

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T108
