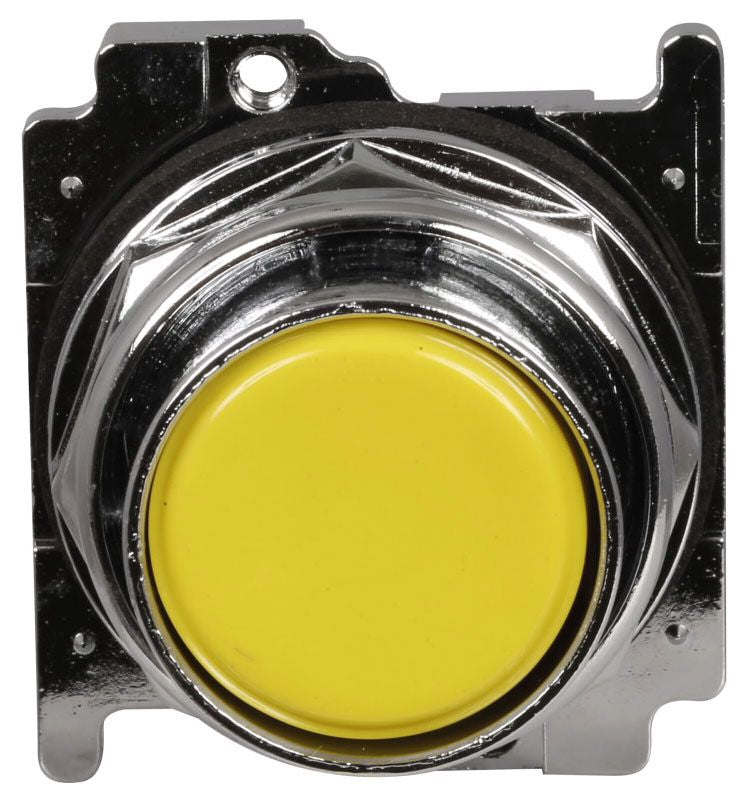

Eaton 10250T104 Flush Type Pushbutton Operator 30.5mm

Product Description

The EATON 10250T104 is a flush-type pushbutton operator designed for 30.5mm panel cutout installations in industrial control panels and operator interface assemblies. This contact block-compatible operator mounts directly into a standard 30.5mm panel opening and provides a low-profile actuator surface suitable for machine control, motor starter, and process control applications. At 0.2 pounds and compact overall dimensions, it is straightforward to install in both new panel builds and retrofit situations. Licensed electricians and industrial controls technicians are the typical installers for this type of device.

The 10250T104 flush-type operator is suited for industrial and commercial control panel applications where a recessed or low-profile button is preferred over a standard extended operator. Flush-type operators are commonly specified in environments where accidental actuation is a concern, such as manufacturing floors, process equipment enclosures, and motor control centers. This operator is part of the EATON 10250T series, a widely used family of 30.5mm heavy-duty pushbutton and pilot device components.

Key Features

• Flush-type actuator design reduces risk of accidental activation
• 30.5mm mounting diameter fits standard panel cutouts
• Compact footprint: 1.9 inches x 1.8 inches x 2.2 inches overall
• Lightweight construction at 0.2 pounds
• Compatible with 10250T series contact blocks and accessories

Compatibility

Designed for use with EATON 10250T series contact blocks and accessories in standard 30.5mm panel cutout applications. No additional specific model compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before removing or installing any pushbutton operator. Secure the operator into the panel cutout per the manufacturer mounting instructions before attaching contact blocks. Do not overtighten the mounting hardware, as this may crack the operator body or distort the panel surface.

Technical Specifications

• Mounting Type: Flush Type
• Panel Cutout Diameter: 30.5mm
• Length: 1.9 inches
• Width: 1.8 inches
• Height: 2.2 inches
• Weight: 0.2 pounds
• UPC: 78211320330

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T104
