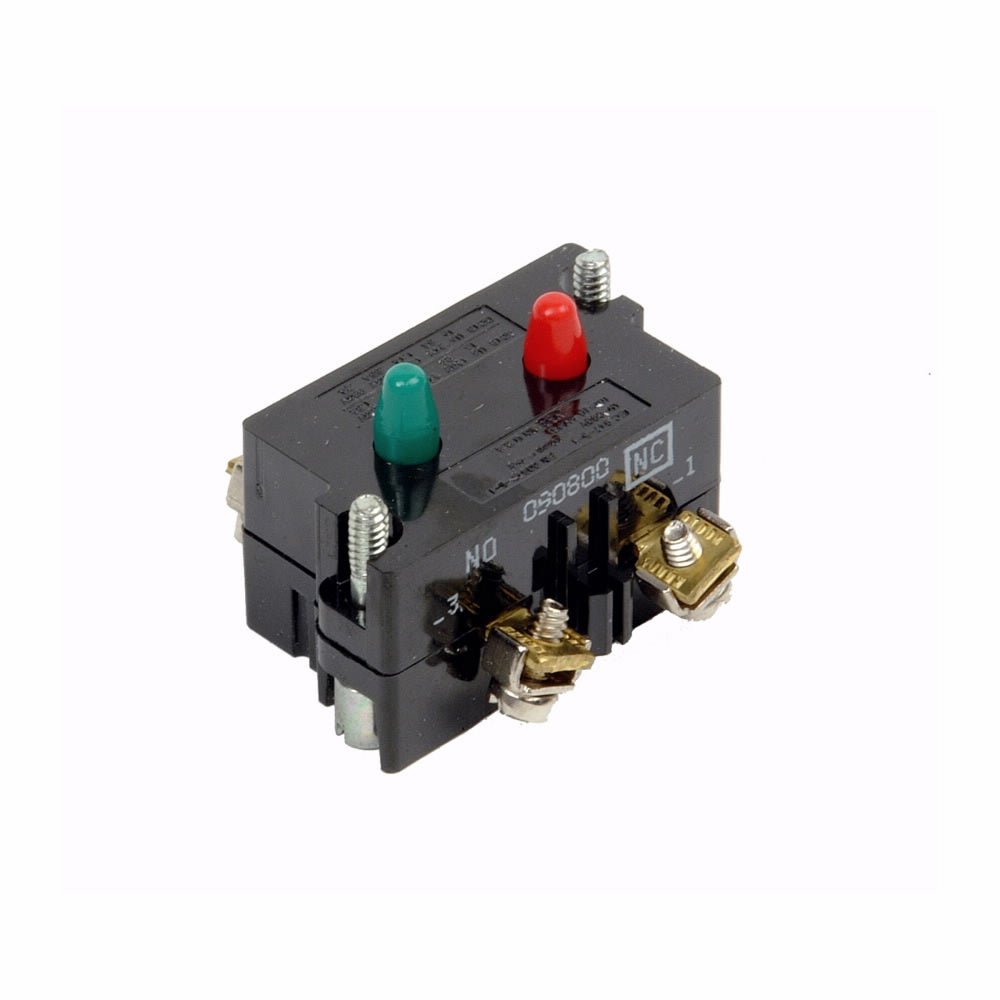

Eaton 10250T1 Heavy Duty Contact Block, 30.5 mm, 1NC-1NO

Product Description

The Eaton 10250T1 is a heavy-duty contact block designed for reliable operation in various applications. This product features a 30.5 mm size and a contact configuration of one normally closed and one normally open (1NC-1NO). The solid construction includes a zinc die-cast body that provides durability in demanding environments.

• Stackable design allows up to six blocks for twelve circuits.
• Drainage holes prevent liquid buildup, enhancing performance in wet conditions.
• Nibs improve contact reliability even in dusty conditions.

Product Highlights

This Eaton contact block is suitable for use in panels, electrical assemblies, and industrial machinery. With certifications including UL and CE, it meets industry standards for safety and reliability.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: 10250T1

Technical Specifications

• Dimensions: 1.9 inches L x 1.2 inches W x 2.2 inches H
• Contact Configuration: 1NC-1NO
• Contact Rating: 600VAC, 10 Amps; 250VDC, 5 Amps
• Material: Thermoplastic with silver contacts
• Mounting Type: Pressure terminal
• Standards/Approvals: UL Listed, CSA Certified, CE Marked
