EATON 10250H5200 STATION CTRL ASSEMBLED NEMA 1 START-STOP

Product Description

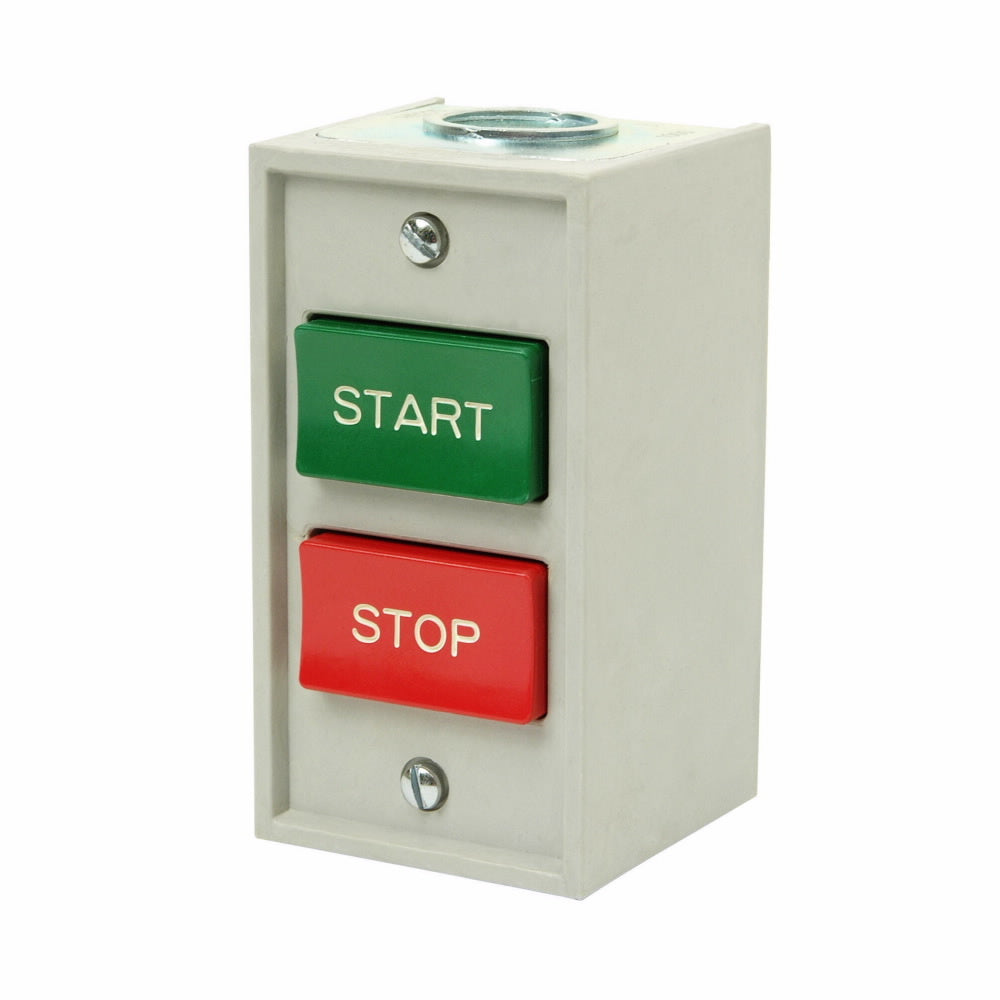

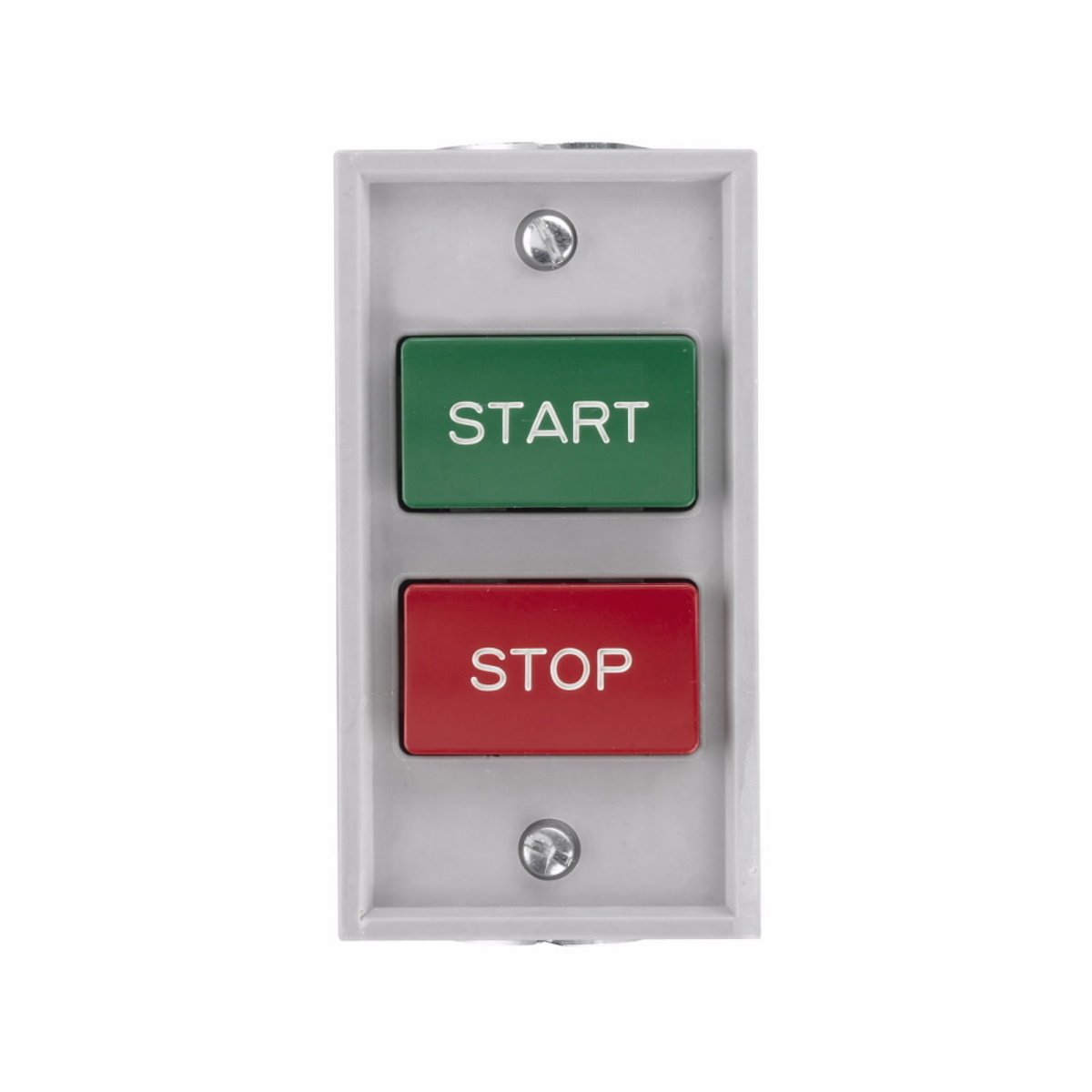

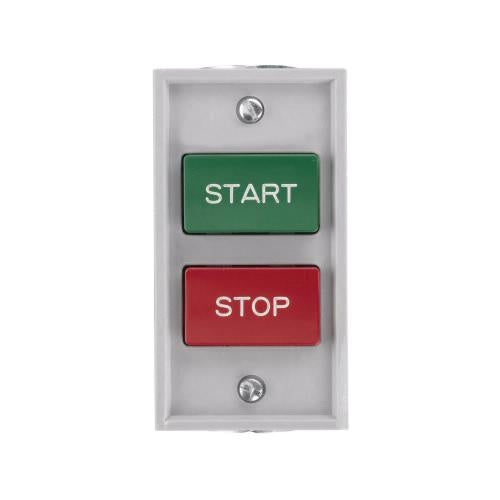

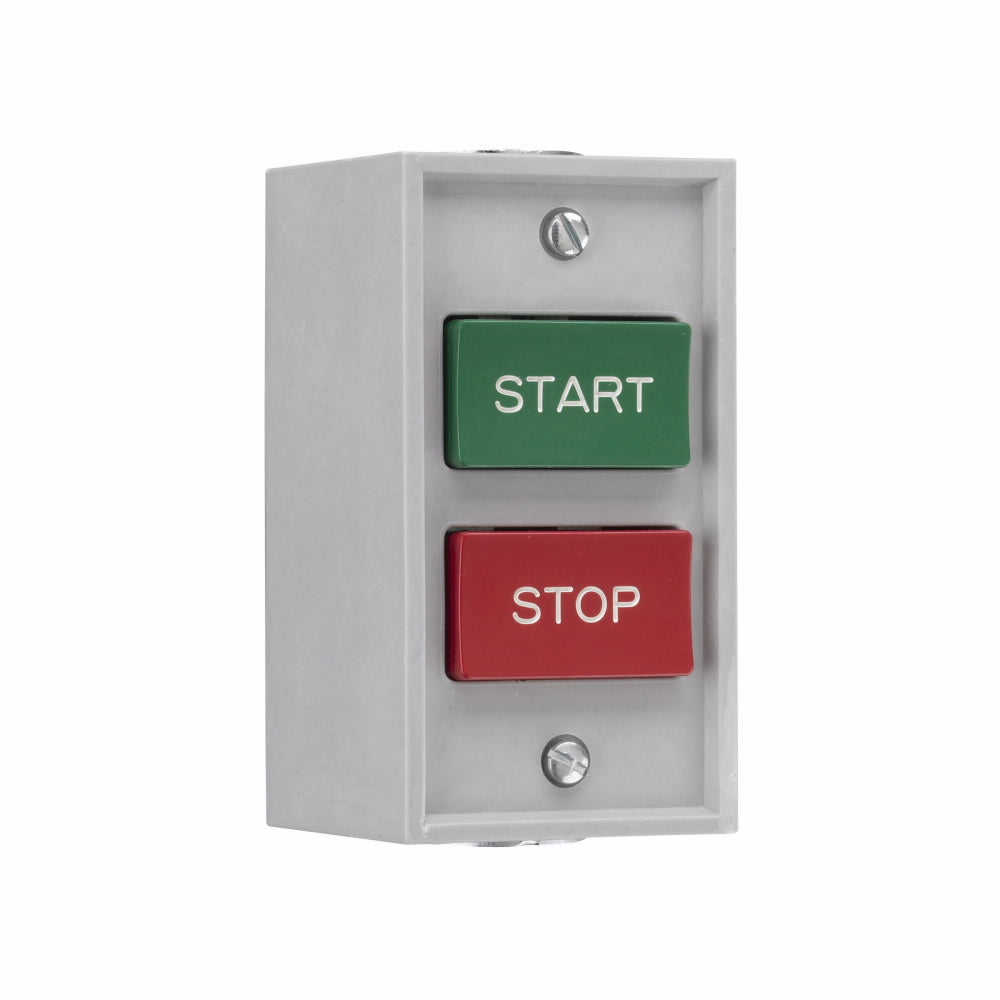

EATON 10250H5200 is a control station designed for rugged use. It features a two-element heavy-duty design with a NEMA 1 rating. This unit can handle up to ten Amperes at five hundred fifty Volts alternating current and six hundred Volts direct current. It includes two flush rectangular operators with a START-STOP legend. Constructed from die-cast zinc, it is suitable for surface mounting.

• Two-element heavy-duty control station
• NEMA 1 rated for indoor use
• Includes two flush button actuators for easy operation

Product Highlights

This control station is ideal for automation and logic control equipment.

Product Information

Standard Information

• Brand: Eaton
• Catalog Number: 10250H5200

Technical Specifications

• Type: Pushbutton
• Material: Die Cast Zinc
• Dimensions: 4.9 inches L x 2.4 inches W x 2 inches H
• NEMA Rating: NEMA 1
• Actuator: Flush
• Color: Red
• Mounting Type: Surface
• Contact Rating: 10 A at 550 VAC / 600 VDC
• Operator Type: (2) Flush Rectangle
• Legend: START-STOP
• UPC: 782113203096
